Fully Automatic Cup Bowl Box Lid Thermoforming Machine of Lunch box Thermoforming Machine of Blister Thermoforming Machine

Fully Automatic Cup Bowl Box Lid Thermoforming Machine

Fully Automatic Cup Bowl Box Lid Thermoforming Machine

Fully Automatic Cup Bowl Box Lid Thermoforming Machine is vacuum forming in performace of various fast food box making, the maximum foming size is customized

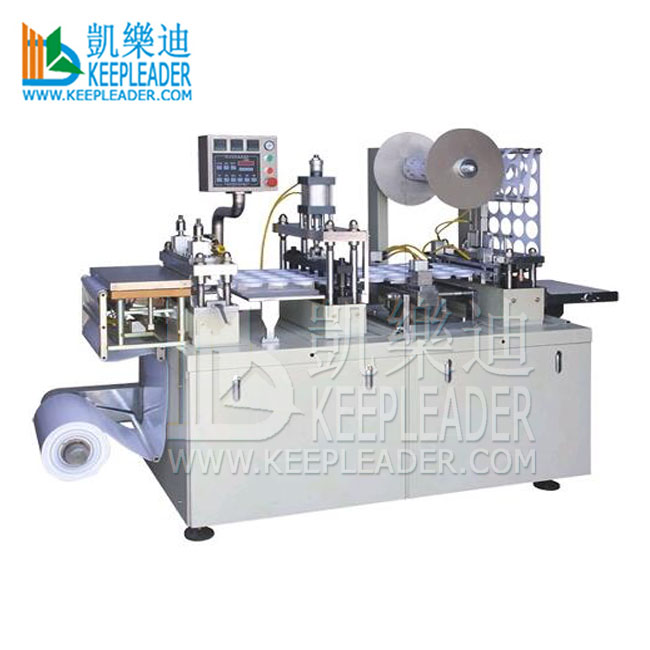

Machine Description


Fully Automatic Cup Bowl Box Lid Thermoforming Machine

01: Parameter

Name

 Fully Automatic Cup Bowl Lid Box Thermoforming Machine

Model

KLY-350

KLY-450

Forming length

320mm

410mm

Forming width

150mm

150mm

Forming depth

30mm

45mm

PVC width

330mm

420mm

Material thickness

0.2*1.5mm

0.2*1.5mm

Production speed

8~32 times/ minute

8~32 times/ minute

Power

4.6kw

4.6kw

Water consumption

0.2m3/h

0.2m3/h

Material

PVC/PET/APET/PETG

PVC/PET/APET/PETG

Power supply

220/380v*3p 50/50hz

220/380v*3p 50/50hz

Water pressure

0.2mpa

0.2mpa

Air pressure

0.5~0.7mpa

0.5~0.7mpa

Weight

800kgs

900kgs

Overall dimension

2150*950*1750mm

2150*950*1750mm

02: Thermoforming machine introduction

Fully Automatic Cup Bowl Lid Box Thermoforming Machine is a newly developed machine with success to meet the needs in the market by keepleader technical team, it is characterized by easy operation, lower energy consumption, it is suitable for thermoforming foodstuff, lunch box,  blister, Cop, bowl, cylinder tube lid, medical equipments and the trays for electronic elements, it is integrated multi functions like conveyor, blister thermoforming, plate punch and counting displaying, the size of forming can be customized

03: Application

Plastic Cup, Bowl, Box, Various Blister, Container lid, Hardware tray, food tray, pharmaceutical tray, PS/PVC/PET Plastic cup cap and Various blister packages, thermoforming and punching in one machine for Plastic material like PS/PVC.PET etc

04: Working process

PVC unreeling; PVC heating; Blister tray thermoforming; Servo drawing; Blister tray cutting; PVC waste edge reeling

05: Blister thermoforming Features

Improve product hygiene and safety, meanwhile, revolve cross contamination

Roll Film loading, forming, hole punching, punching output, roll film

Reclaiming six-station synchronous production, manipulate feeder

Compact structure and stable performance, easy operations

Enclosed Outside to avoid pollution and convenient to clean

Stroke adjustable, mould replacement is simple, easy to change mould size, suitable for difference specification

Can adopt PLC operation panel, convenient and visually to set and operate

Customized mold complied with your thermoforming product

pls contact KEEPLEADER for more info and tech assistance, for Fully Automatic Cup Bowl Box Lid Thermoforming Machine, please tell us maximum forming size and depth of your box, it is better to check your sample picture or its similar you preferred for reference

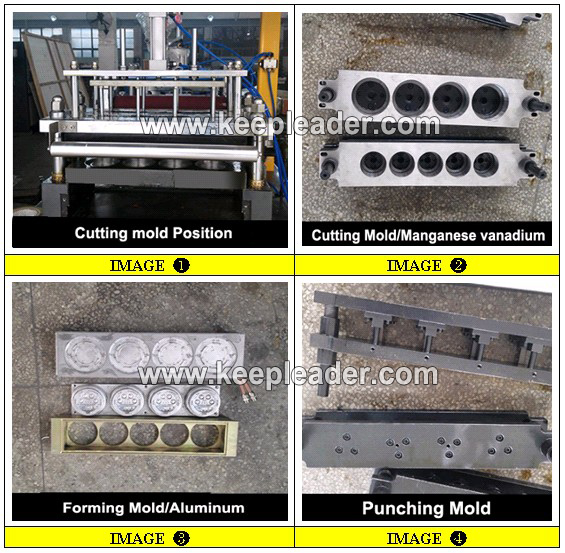

Toolings


Fully Automatic Cup Bowl Box Lid Thermoforming Machine

Fully Automatic Cup Bowl Box Lid Thermoforming Machine comes with customized toolings/moulds,which will comply with your production

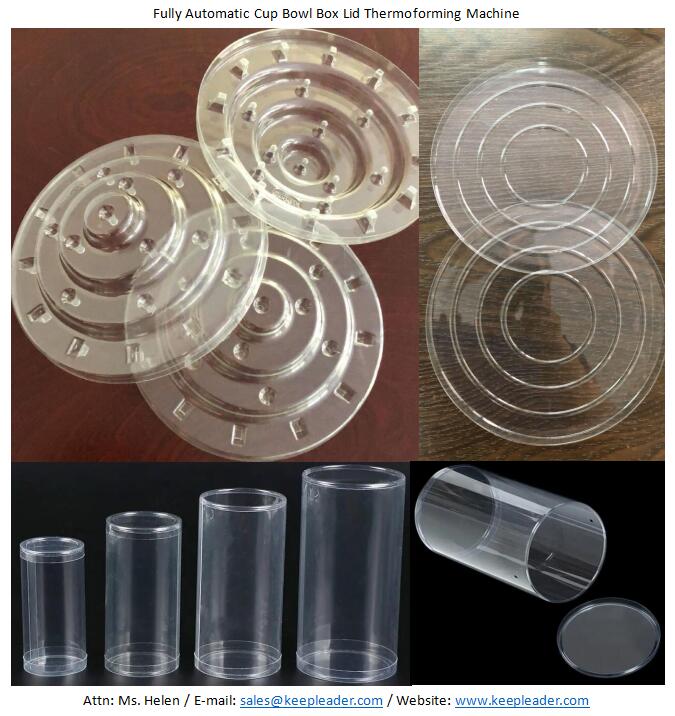

Machine Uses


Fully Automatic Cup Bowl Box Lid Thermoforming MachineFully Automatic Cup Bowl Box Lid Thermoforming Machine

These sample pictures just for reference for Fully Automatic Cup Bowl Box Lid Thermoforming Machine, pls show us picture of your fast food box with its size and material thickenss for tech evaluation before quotation

Contact Us


We welcome the opportunity to explain every last details and all of the options available in fact, and. won’t waste your time and ours, our goal is to educate our potential customers and let them make an informed decision, please contact KEEPLEADER for more info of Fully Automatic Cup Bowl Box Lid Thermoforming Machine

Attn:Ms Helen

E-mail: sales@keepleader.com

Cellphone/Whatsapp: +86 13590415784

Tel: +86 755 841903 58

Website: www.keepleader.com
