Automatic PVC cylinder making machine for PVC cylinder edge forming, PET cylinder edge forming

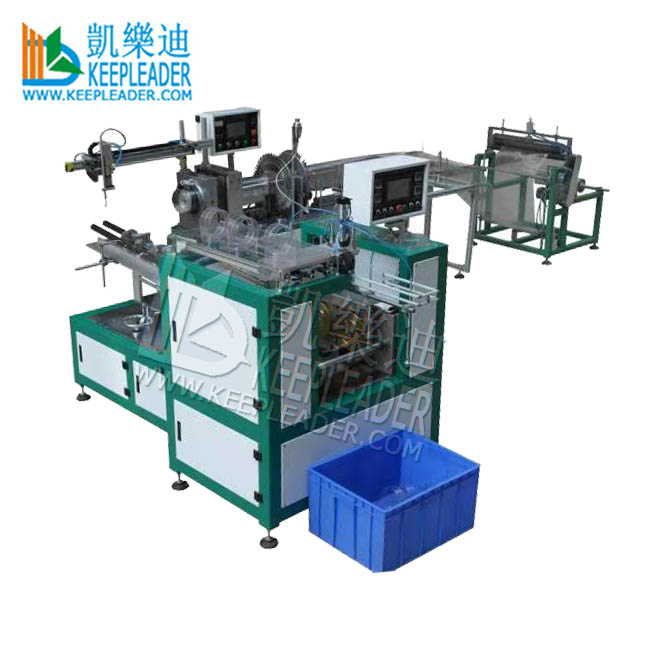

Automatic PVC cylinder making machine

Automatic PVC cylinder making machine

Production Description


01: Parameter

Model

KLY-2030

Power

8kw

Power supply

380v/50hz

Cylinder diameter

40~200mm

Cylinder height

50~300mm

Max pressure

0.25~1mm

Air pressure

0.6mpa

Material

PVC, APET, PETG, PET

Driving mode

Pneumatic + servo moto

Estimated capacity

6~8 seconds/2pcs

Weight

800kgs

Overall size

2100*1800*2300mm

02: Application

Widely used in cylindrical box edge curling, which is made of PVC, PP, APET, PETG and other thermoplastic material, the box can be shaped round, oval, trapezoid, which are popular in field of tea tube edge curling, candy tube edge curling, Chocolate tube and any other cylindrical box packaging

03: Highlighting

Suitable round, oval, trapezoid cylindrical box

Well-known servo motor and, pneumatic assembles

Precision linear bearing

Two sides of actuators are well heated to soften the cylinder edges in good curling condition

Highly accurate, the tolerance is within 0.1mm

Both sides can do curling at the same time

2pcs in a circling process

Can combine with cylinder box forming machine as a automatic production line

Laser detector and automatic do sides alignment

The machine built with PLC, and monitor display to record the whole process

FAQ


01: How dose KEEPLEADER pack the machine?

Ans: our machine is packed into the plywood case, this machine is installed, don’t need further mounting process after you receive

02: How to use the machine?

Ans: KEEPLEADER will provide you user manual and train video

03: If the machine need air compressor?

Ans: Yes, this machine need air compressor, or your factory already have a air supply

04: Dose the machine power voltage meet buyers’ factory power source?

Ans: The power supply can make to order, there are usually two type: 380v,50hz or 220v*60hz of 3 phase or its 1 phase

05: if KEEPLEADER make die / mould?

Ans: yes, one machine will equip with 1 set of mold, which will designed by received samples or drawing

Detailed Images

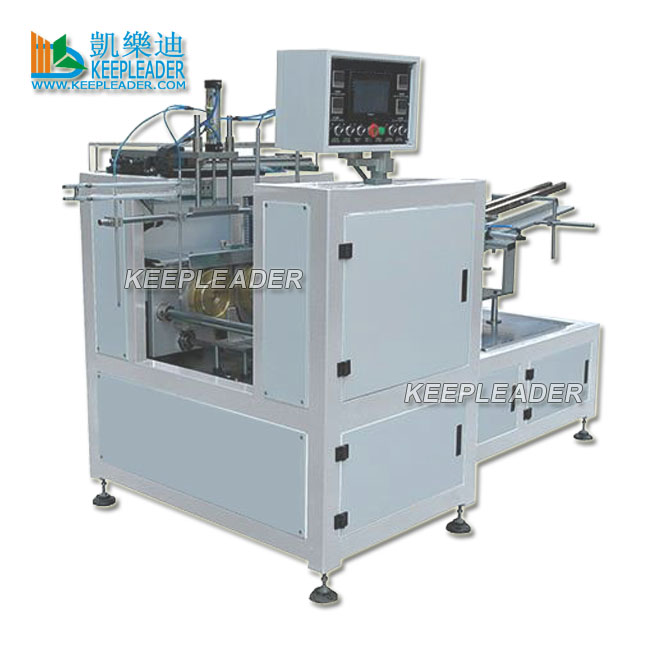

Automatic PVC cylinder making machine

Product Uses


Automatic PVC cylinder making machine

Our Service


01:Pre-sales service

Help you find the suitable machine for your production

Provide the correct solution

Confirm the details of your purchasing

Provide proper quotation

Instruct payment process

Instruct visit for on-site training if any

02:After-sales service

Contact your nominated forwarder or arrange the shipment by our forwarder

Provide the picture of finished machine and testing video

Inform the balance payment

Provide the user manual and train video

Timely answer any question from buyer

Timely monitor the shipment status

Company Overview


Automatic PVC cylinder making machine

After-sales Service


After purchasing at KEEPLEADER™ is first step of our after-service, all of machines at KEEPLEADER™ has one year guarantee, we provide free samples for defected parts to do replacement except for human damage, under information for your notice

01: KEEPLEADER™ always posts the new technical file in our homepage that can help our client in new technical information of machines’ design, character, application, operation, maintenance,

and related, KEEPLEADER™ also welcome our clients feed back the machines’ working condition that can get one to one service

02: If the machine you purchased has any defects, please contact sales representative at KEEPLEADER™, we will assign our experienced engineer analyze your case and provide technical support, in case of damaged parts that cannot repair, KEEPLEADER™ will provide a new parts to replace the defect

03: For any replacement and maintenance, KEEPLEADER™ has user manual and training video

04: KEEPLEADER™ can go to oversea for on-site training

05: KEEPLEADER™ can provide electric diagram if in need
