Electrolytic Ultrasonic Cleaning Machine for Injection Mould Industrial Supersonic Cleaning of Mold High Precision Sonic Cleaner

Application

Electrolytic Ultrasonic Cleaning Machine has ultrasonic generating system, electrolytic circuit system, filtering and cycling system, Controlling system, professional metal cleaning detergent and anti-rust agent

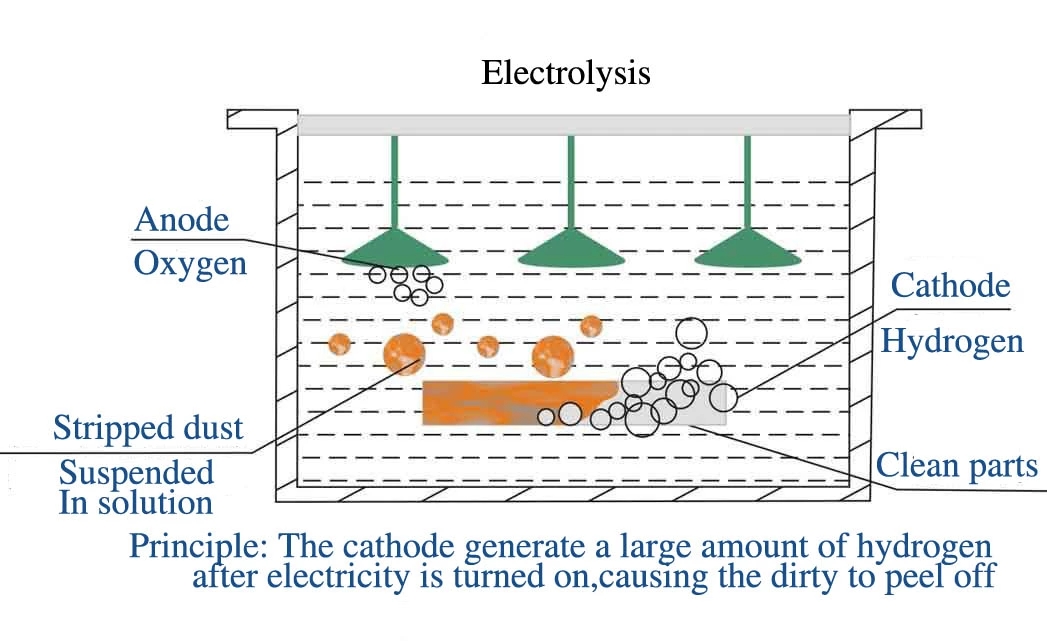

The gas produced by the Electrolytic device, an alkaline electrolyte interaction loose dirt, through ultrasonic vibration, dirt, peeled float, attached to a metal cathode with a sauna effect of removing methane gas, cleaning residues, POM gum residue, toner residues, high-temperature sulfide, oil, carbon deposits, rust stains, rust block pollutants

Character

An electrolytic cleaning system is a gas emitted to the metal surface, with the effect of removing dirt by sauna metal surface, the impurities can also be removed completely. And the carbon deposition on the mold, rust, resin component, moisture, oil will be peeled and floated by ultrasonic vibration, the metal will be attached to the cathode, even the tiny corner can be cleaned completely, on the mould cleaning field has marvelous performance

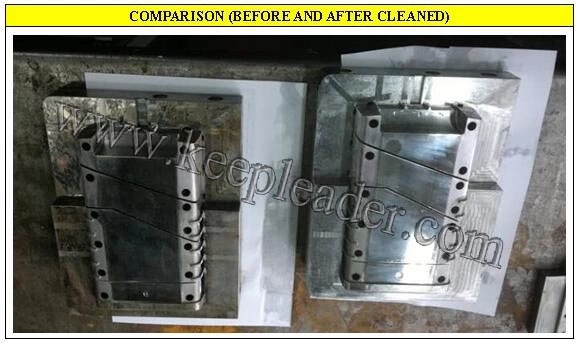

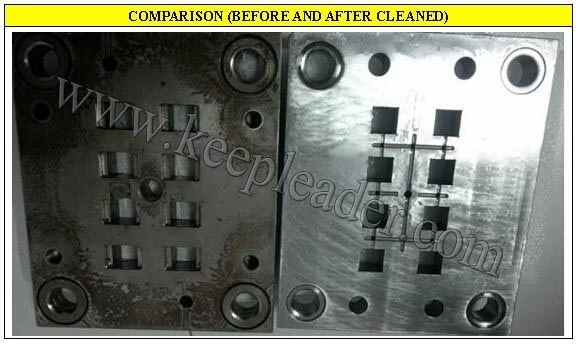

Can restored the metal to its original gorgeous in cleaning effect

even a complicated shape can be removed dirt.

decontamination can be indeed completed

have good function of removing rust and anti-rust effect

compared with manual cleaning to save an hour

more environmentally friendly and safer than the use of organic solvents.

greatly reducing the defect rate after the wash

Parameter

Model

KLE-1010L

KLE-1020L

KLE-1030L

KLE-1050L

Internal Size

250*200*200mm

300*200*250mm

500*200*300mm

500*250*400mm

Sonic Power

1.2kw

1.5kw

2.2kw

2.4kw

Heating Power

4kw

5kw

6kw

8kw

Frequency

40khz

40khz

40khz

40khz

Cleaning Liquid

Alkaline electrolyte

Net Weight

180kg

230kg

340kg

360kg
