PP File Folder Making Ultrasonic Welder of Double Head Ultrasonic PP File Bag Welding Machine for PVC File Pocket_PP Bag Welding

PP File Folder Making Ultrasonic Welder

PP File Folder Making Ultrasonic Welder

PP File Folder Making Ultrasonic Welder is dual heads model for File Folder cover making in two sides bonding

Product Description


PP File Folder Making Ultrasonic Welder

01: Application

PP File Folder Making Ultrasonic Welder is dual heads configuration, used for file folder cover welding at two side in a circle stroke, this dual heads model also can change the horn and fixture for other welding process in large size among the fields of below

Light industry: Rear lamp, cornering lamp, averting mirror etc

Toy industry: toy gun, telephone, rag baby, general plastic toys

Packing industry: Cosmetic box, PVC Box, tooth/paste tubes and etc

Electronics: glue watch case, nylon strap, computer, sound box bag, shell, mobile phone battery

General commercial products: typewriter ribbon, video box, tape box, computer disks and etc

02: Parameter

Name

PP File Folder Making Ultrasonic Welder

Model

KLC3215D

Ultrasonic power

6400W

Ultrasonic frequency

15khz or 20khz

Power Supply

110V/220V 50HZ/60HZ

Max Stroke

75~125mm

Vibration system

Auto-stimulating

Pneumatic range

3~8 bar

Welding time

0.01~9.99 seconds

Welding Length

Width: 2~5mm, length:230~250mm of two bonding

Dimension

1200*420*1200mm

Weight

280kgs

03: Features

High precision positioning guides installed, with powerful ultrasonic energy for effective welding

High Q valve oscillation installed for reliable ultrasonic performance

Automatic overload protection system

Adjustable Fins for horizontal level is easy controlled for welding horn

Adopting alloy steel to keep frequency strong and stable

Customized tooling equipped for difference bonding procedures

Detailed Images

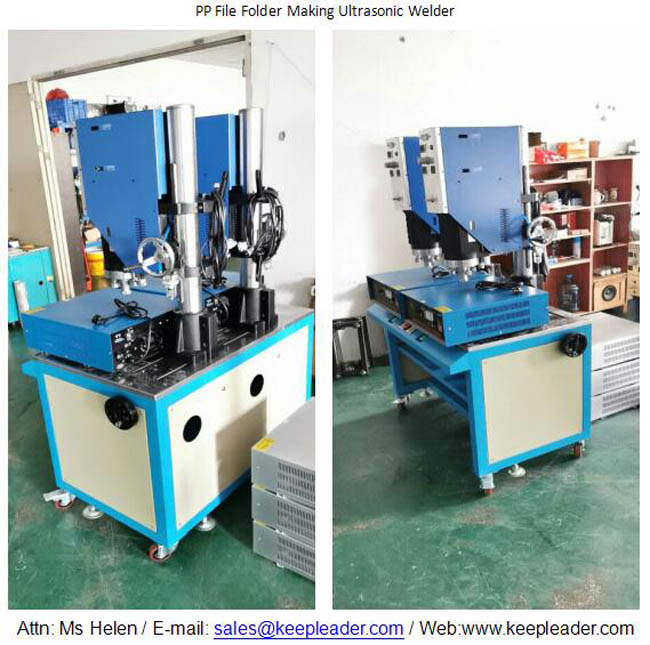

PP File Folder Making Ultrasonic Welder

PP File Folder Making Ultrasonic Welder also can weld large size thermoplastic in amorphous and semi-crystalline by changing horn/sonotrode and fixture

Product Uses

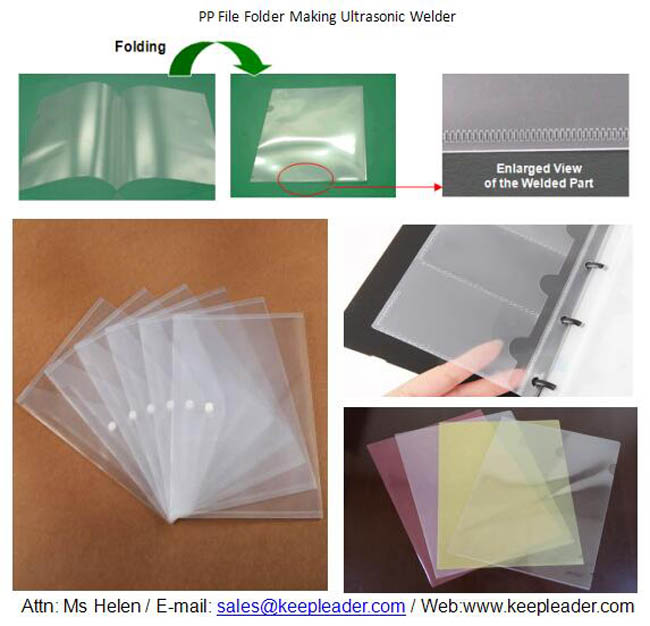

PP File Folder Making Ultrasonic Welder

PP File Folder Making Ultrasonic Welder is professional bonding equipment for various shape and size of file folder, file cover, plastic sheet

Contact Us


KEEPLEADER continuously research and develop cutom ultrasonic welder, the parameters are differenent for each application, more information of PP File Folder Making Ultrasonic Welder, please contact us for confirmation with your practical process

Attn:Ms Helen

E-mail: sales@keepleader.com

Cellphone/Wechat/Whatsapp:+86 13590415784

Tel:+86 755 84190358

Website: www.keepleader.com / www.hfwelds.com
