Ultrasonic Transducer Pack of Immersible Ultrasonic Transducers Pack for immersion Ultrasonic Cleaner_Submersible Transducer Pad

Ultrasonic Transducer Pack of Immersible Ultrasonic Transducers Pack

Ultrasonic Transducer Pack

Ultrasonic Transducer Pack of Immersible Ultrasonic Transducers Pack is optional of #1: Power #2: Size #3: Frequency

Product Description


Ultrasonic Transducer Pack of Immersible Ultrasonic Transducers Pack

01: Application

Ultrasonic Transducer Pack of Immersible Ultrasonic Transducers Pack is possible using submersible ultrasonic systems. All submersible ultrasonic transducer pack is composed of 1 or more submersible transducer packs, and 1 or more ultrasonic generator which connect to these packs to create an ultrasonic aqueous cleaner out of any existing tank. Submersible transducers for aqueous cleaners are hermetically sealed stainless steel packs, approximately 80~100mm tall, which contain any number of individual ultrasonic transducers, the submersible/immersible transducer pack is positioned on the tank bottom or sides, and connected to the ultrasonic generator using a liquid-tight riser tube, which passes the electrical cable through the top of cleaning tank, other electrical mounting options include the use of bulkhead mounts, which require that a hole be cut into the tank bottom through which the electric cable will pass

Ultrasonic Transducer Pack of Immersible Ultrasonic Transducers Pack is often used special shape, size or positioned ultrasonic agitation solution in ultrasonic cleaning, the frequency , power and size of transducer pack is optional

Ultrasonic Transducer Pack of Immersible Ultrasonic Transducers Pack can clean hardware, electronics, clocks, machinery, tools and other solid metal and plastic subjects

02: Principles

Sound is caused by the propagation of pressure and density fluctuations (compression and rarefaction of molecules) in elastic medium, ultrasonic sound is not audible for human hear, ultrasonic cleaning is aqueous cleaning by tremendous bubbles imploded jetting in liquid caused by ultrasonic cavitation effect, immersible ultrasonic transducer pack is hermetically sealed stainless steel container, which contains a number of transducer elements. These transducers offer the major advantage of versatility in system design, the custom cleaning tank can be nearly any size that is appropriate to the application, and the transducers can be mounted so that the ultrasonic energy is directed and concentrated where it is needed most, in many cases, our customers already have an existing tank, which they wish to convert into an ultrasonic aqueous cleaning, or solvent cleaning system

02: Parameter

Name

Ultrasonic Transducer Pack of Immersible Transducers Pack

Type

Dimension

Frequency

Sonic Power

Transducers

KLE-1006P

300*190*100

28khz, 40khz

300

6

KLE-1012P

360*275*100

28khz, 40khz

600

12

KLE-1020P

450*350*100

28khz, 40khz

1000

20

KLE-1024P

470*380*100

28khz, 40khz

1200

24

KLE-1030P

520*450*100

28khz, 40khz

1500

30

KLE-1036P

560*450*100

28khz, 40khz

1800

36

KLE-1040P

650*450*100

28khz, 40khz

2000

40

KLE-1048P

740*520*100

28khz, 40khz

2400

48

KLE-1060P

820*540*100

28khz, 40khz

3000

60

KLE-10100P

1200*590*100

28khz, 40khz

5000

100

03: Character

Material made of SUS316 2~2.5mm stainless steel

The Surface of vibration pack is electroplated with hard chromium 5um

Can design movable hook device for easy installation or movement

Ultrasonic transducer is fixed with special imported glue and welding screws

Ultrasonic frequency is optional, 28khz, 40khz or bigger as demanding

Electrical system of composed by integrated circuit is reliable and durable

Microcomputer controlled ultrasonic generator has auto wave sweep function

Detailed Images


Ultrasonic Transducer Pack

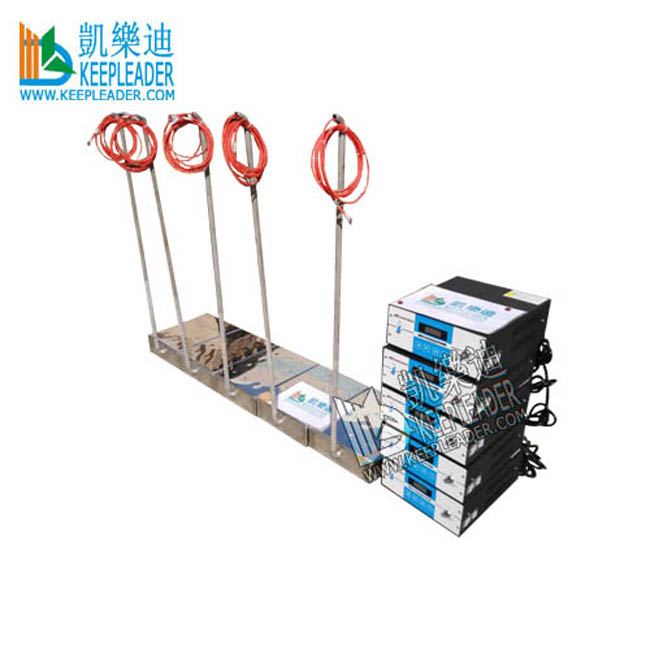

Ultrasonic Transducer Pack of Immersible Ultrasonic Transducers Pack has water-tight riser tube or soft tube for cable

Buying Guides


Ultrasonic Transducer Pack of Immersible Ultrasonic Transducers Pack

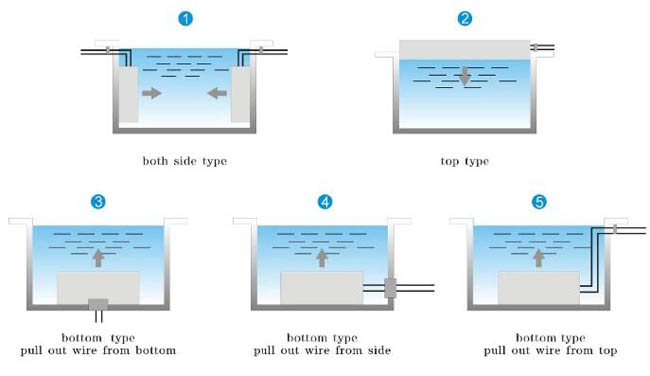

Ultrasonic Transducer Pack of Immersible Ultrasonic Transducers Pack can install flexiblely basing on your pratice

Contact Us


Ultrasonic Transducer Pack can be customzied, please confirm details of your preferred features before order
