Industrial Cleaning Equipment Ultrasonic Vapor Degreaser For PCB Board Ultrasonic Vapor Degreasing Machine of Vapor Cleaning

Industrial Cleaning Equipment Ultrasonic Vapor Degreaser

Industrial Cleaning Equipment Ultrasonic Vapor Degreaser For PCB Board

Industrial Cleaning Equipment Ultrasonic Vapor Degreaser provides an excellent final stage of cleaning since it is fully devoid of dissolved organic due to its vaporized state, this vapor-only cleaning effect makes vapor degreasing a more reliable and superior cleaning process that many aqueous-based methods of degreasing

Product Description

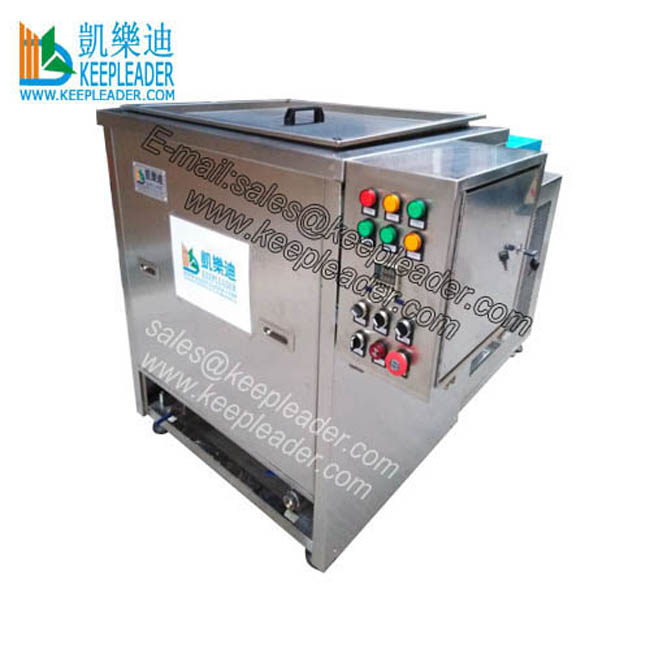

Industrial Cleaning Equipment Ultrasonic Vapor Degreaser

01:Application

Industrial Cleaning Equipment Ultrasonic Vapor Degreaser is compacted combination in that ultrasonic cleaning equipped with vapor cleaning, ultrasonic agitation use high frequency to create millions of tiny bubbles that perform a scrubbing action and reach in to groove and hidden parts of products that are immersed into the solvent, ultrasonic agitated scrubbing process can eradicate harden,tightly bounded soils, grease and penetrate into the depth of blind hole, cracks, and hidden corners, dried grease, oil, flux, are wet and stripped off by ultrasonic tiny bubbles explosion which is ready for excellent cleaning performance in vapor degreasing zone, into this consideration, keepleaders Industrial Cleaning Equipment Ultrasonic Vapor Degreaser are composed of stainless steel tank equipped with heating elements around the ultrasonic tank that heat special cleaning solvents to a boil in a closed vessel, as the solvent evaporates it rises to a chamber where the part is placed, because of the difference in temperatures, the solvent condenses onto the parts, dissolves the stain, and drips off the parts, the stain particles are contained in the liquid beads of the solvent which may be collected filtered and reused

Industrial Cleaning Equipment Ultrasonic Vapor Degreaser can take for all of industrial cleaning: precision cleaning medical device parts where critical that no chemical residue is left on parts; manufacturing processes requiring precision cleaning of true oils and particulates and quick drying; semiconductor printed circuit board cleaning and flux removal, aerospace parts cleaning for components required to conform to military specification, minimizing solvent loss cleaning specified process

02: Parameter

Name

Industrial Cleaning Equipment Ultrasonic Vapor Degreaser

Model

KLE-1030R

Ultrasonic power

1500w

Ultrasonic Frequency

28khz or 40khz

Heating Power

2kw

Air compressor

3HP

Filter pump

3.7kw

Power Supply

220v,60hz or 380v,50hz, single phase

Auxiliary

Tank lid, cleaning basket

Cleaning Process

Ultrasonic immerse scrubbing +Vapor cleaning + Condensing Dry

Solvent process

Boiling+ vaporized + Condensing + Oil water separator + Filtering Pump

Material

Stainless steel

Heating Chamber

600*480*400mm

Vapor Zone

600*480*400mm

Overall size

840*720*1000mm

Packaging Size

1.53*1.13*1.23=2.127CBM

Net Weight

280kgs

Gross Weight

306kgs

03: Highlighting

No exhaust required

Adequate compressor refrigeration

Recirculation with cartridge filtration

Solvent cool down mode to minimize solvent loss

Solvent immersion tank with 28khz or 40khz ultrasonic

Stainless steel process tank with bright annealed finish

Compact footprint for easy integration in production flow

Stainless steel condenser and chiller coils to avoid corrosion

No water consumption or waste water treatment required

Wash, rinse, and dry with a spot-free finish in one compact unit

Built-in gravity water separators with molecular sieve capability

Smaller footprint, faster circle times compared to aqueous systems

Manual downtime cover or pneumatic sensor controlled tank cover

PLC Control with automation capability or digital control button option

Closed loop hot water heating of solvent and vapor or heating plate aided

Configuration of filters, water separators, safety controls, and refrigeration

100~120% freeboard ratio/cooling jacket/blanket to limit solvent consumption

Customized Size and configuration to satisfy your circle time and production requirements

Ultrasonic scrubbing adds cleaning power to remove dried greases or tenacious contamination

Detailed Images

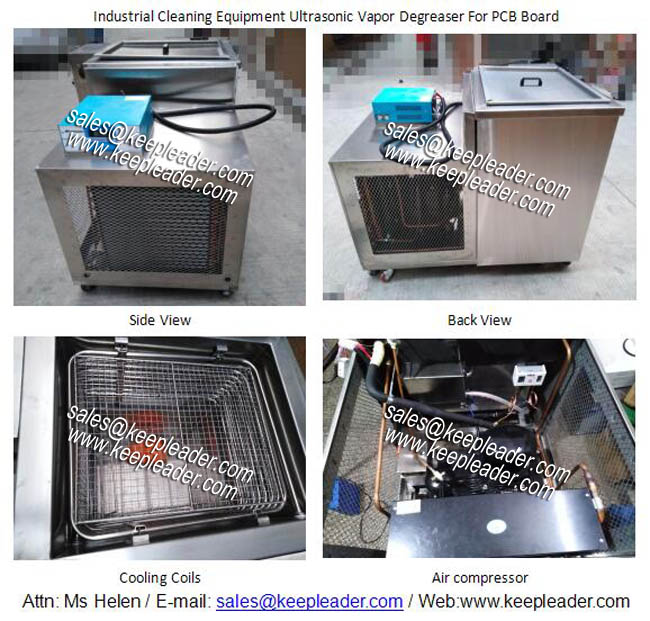

Industrial Cleaning Equipment Ultrasonic Vapor Degreaser For PCB Board

Industrial Cleaning Equipment Ultrasonic Vapor Degreaser is single tank of ultrasonis scrubbing immersion, vaporized cleaning and Consensing solvent-based drying

Product Uses

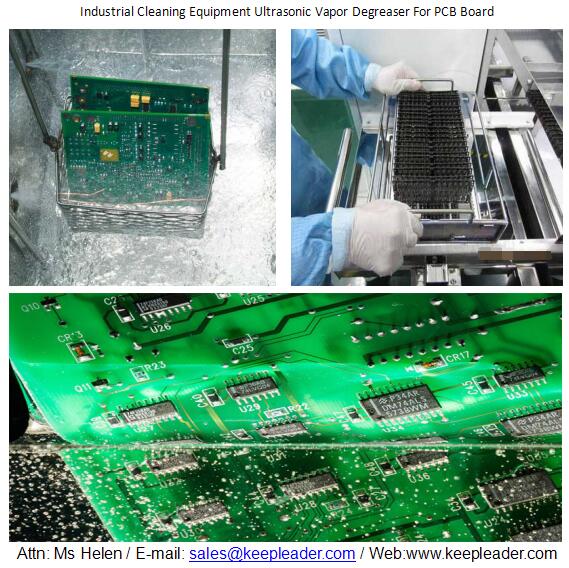

Industrial Cleaning Equipment Ultrasonic Vapor Degreaser For PCB Board

Industrial Cleaning Equipment Ultrasonic Vapor Degreaser is compacted design, all process in one tank to save footprint and optional process for cleaning in variety

Contact Us


Industrial Cleaning Equipment Ultrasonic Vapor Degreaser has excellent engineering support around the wold, keepleader offer application evaluation, testing, technical service, contract maintenance, replacement parts, training and installation, keepleader also customize our machinery to your needs, if you are thinking about custom design or sizing, please let us know what you are looking for

Attn: Ms Helen

E-mail: sales@keepleader.com

Cellphone: +86 13590415784 (Wechat/Whatsapp)

Tel: +86 755 84190358
