Wire Cable Code Label Mark Hot Stamp Marking Machine of Pneumatic Wire Cable Hot Stamping_Labeling_Imprinting_Coding_Printing

Wire Cable Code Label Mark Hot Stamp Marking Machine

Wire Cable Code Label Mark Hot Stamp Marking Machine

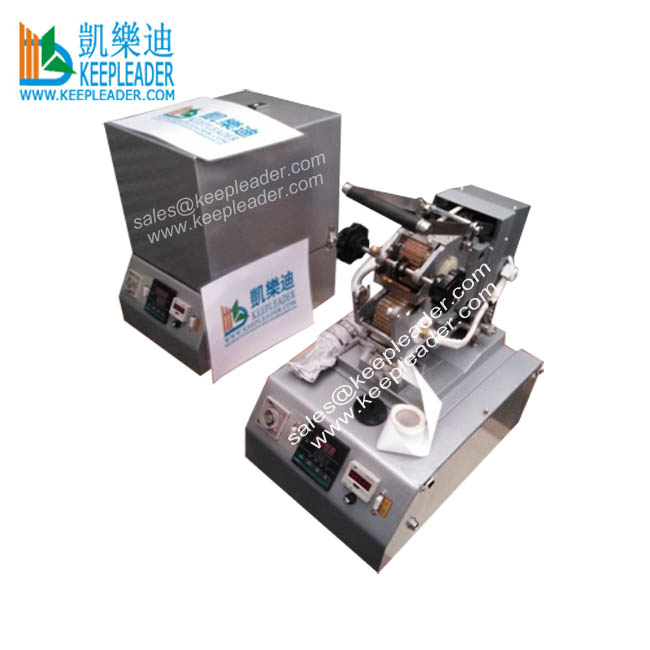

Wire Cable Code Label Mark Hot Stamp Marking Machine is a bench top stamping unit for small series, advantages include user-friendly handling, flexibility, cost-effectiveness, easy legibility, lasting and oil-resistant labeling, non-dislodgeable and non-protruding markings, the printing unit operates using the hot stamping method with wear-resistant printing foil

Machine Description


Wire Cable Code Label Mark Hot Stamp Marking Machine

01: Application

Wire Cable Code Label Mark Hot Stamp Marking Machine is designed for the economical and high quality making of wires, cables, and shrink tubes by foil hot stamping process, the combination of characters and character size can be selected freely within the specific range, the hot-stamp making process is suitable for making thermoplastic material, during the process the preheated character wheels imprint the precision-engraved characters by pressing the pigmented marking foil into the insulation surface of wire, cable or tubes the concave form of the characters is exactly matched to the diameter of the processed wire insulation, the precision adjusting options for the stamping pressure, dwell time, down speed, and marking temperature allow to recall every result

02: Parameter

Name

Wire Cable Code Label Mark Hot Stamp Marking Machine

Model

KLS-1040

Heating Power

300w

Wheel quantities

10pcs

Character quantities

40pcs

Character size

Horizontal: 1.2/1.5/1.6/1.7/1.8/2.0/2.1/2.2/2.5/2.7mm

Vertical: 1.2/1.6mm

Wire diameter

1~12mm

Making pressure

1~7 bar

Marking Temp

0~160 degree

Stamp time

0.1~3.0s adjustable

Air connection

7 bar+

Character read

A~Z, 0~9, Blank,  - / .

Marking Foil

Material: PVC-Foil, Teflon-Foil, PP-Foil

Color: Blank, white, on request red, yellow, green, blue

Options

Foot pedal/standard and customized interface for in-line operation

Power Supply

110v, 60hz or 220v,50hz Single phase

Dimension

42*35*40cm

Weight

40kgs

Packing Size

58*38*60cm

03: Character

Prints horizontally or vertically

1.5mm to 2.3mm: 1 to 44 printing wheels

2.5mm to 3.5mm: 1 to 26 printing wheels

Utilized full-size 40-character typewheels

Sensor-controlled temperature 90~180 degree

Delicate balance of heat, pressure and foil feeding

Less operator fatigue than a level operated machine

Solid state dwell time for batter repeatable consistence

Can be easily interfaced with wire processing machines

0.5 seconds per marking (depends on time and stroke)

No handling of hot type or waiting to reach operating temperature

Either as table marking unit with a food pedal or can be connected to a cutter

Existing interface allows the connection to products by different manufactures

For hot stamping cable, wire insulation, heat shrink sleeving, and plastic tubing

Quick-change fixture system minimizes setup time and maximizes printings speed

Detailed Images


Wire Cable Code Label Mark Hot Stamp Marking Machine

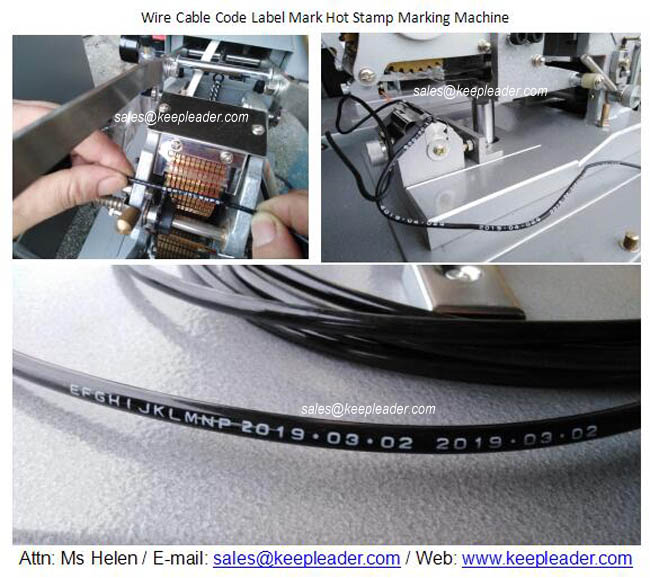

Wire Cable Code Label Mark Hot Stamp Marking Machine is compacted, tabletop printing unit for quick marking your wire, cable or heat shinking tube by process of preheated character wheels press pigmented foil in short dwell time in result of marking identifying numbers on insulation surface

Machine Uses


Wire Cable Code Label Mark Hot Stamp Marking Machine

Wire Cable Code Label Mark Hot Stamp Marking Machine can combine characters in selection by rotary wheels

Contact Us


Wire Cable Code Label Mark Hot Stamp Marking Machine has customized #1: Character Size #2: Wheel quantities, please confirm your preferrable configurations with our technical team
