Portable Electric Iron Tyre Brander Machine is #1: Electric Heat #2: Hand-held #4 Tyre/Tire DOT Date Branding Iron with #5: Changeover Branding Dies Basing on #6:Custom Dimension and Read
Machine Description
01: Application
Portable Electric Iron Tyre Brander Machine is quick, easy way to brand tires with interchangeable DOT date that will suit your purpose, heating block has T-Slot to insert the custom branding dies that has duplicated size and read with your old version,Portable Electric Iron Tyre Brander Machine not only can brand Tire DOT date but also can brand your logo, identifying code, or combined characters with customized dimension
02: Parameter
Name | ||
Model | KLS-500 | |
Heating Power | 500w | |
Power Supply | 110VAC,60HZ or 220VAC, 50HZ | |
T-Slot Depth | 9.7mm | |
T-Slot Width | 10.1~18.3mm | |
T-Slot Length | 23.8~82mm | |
Material | Heating Block | Machine steel chrome plated |
Branding Die | Bronze/copper/steel | |
Heating Tube | Stainless steel | |
Power Box | Aviation Aluminum insulated coat | |
Top Handle | Aviation Aluminum rubber coat | |
| Back Handle | Solid plastic |
Heating Temperature | 0~500 degree | |
Heating time | 15~20 minutes depends on size, material and ambient | |
Cooling time | 20~30 minutes | |
Dimension | 320*120*180mm | |
Gross Weight | 3~5kgs | |
Packaging Size | 380*180*200mm |
03:Character
Digital Heating elements
Dual fuse power circuit design
Rugged construction for long life
All parts are independently replacement
T-Slot designed for replaceable numbers and letters
Available for rubber, wood, leather, plastic branding
The branding dies are quick-interchangeable coupled
Sling heating block inside heating for quick heating-up
Three-wire, grounded construction for operator safety
Several branding heads can be used in one single branding iron
Efficient way to replace old DOT date with interchangeable branding die
Hand-held, all in one unit, compact structure considered for convenient, cost effective marking
Reasonable and inexpensive marking of your tire or other part with melting material
Unblurrable mark, can be removed only by physical destruction
04: Warning
Cannot point the heating heat to person around
Cannot drop the brander to the ground or knock it
Must close the power and remove the power wire if no use
Cannot leave the working brander away from the attention
Leave the brander away from the burning material, can put in to metal stand
Cannot touch the heated block and leave the branding iron away from the Children
Changing the position of your Portable Electric Iron Tyre Brander Machine from horizontal to vertical before it cools off to room temperature may result in internal damage and void warranty
Product Uses

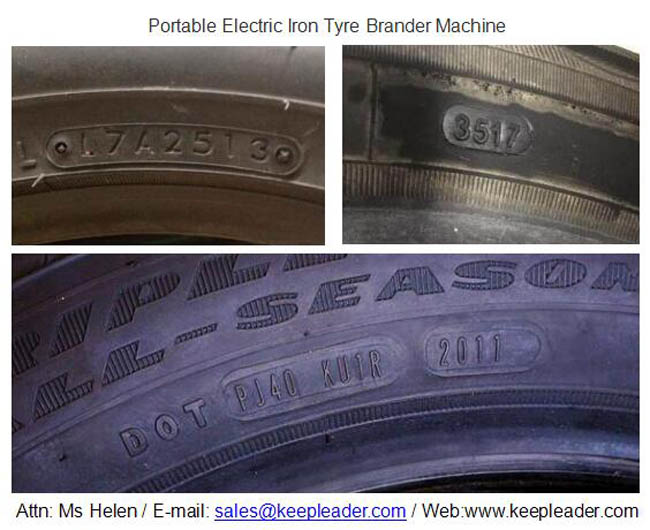

Portable Electric Iron Tyre Brander Machine can brand #1: Dot Date ID #2: Company Logo #3: Identifying Code #4: Traceable Numbers #5: Sequence Number

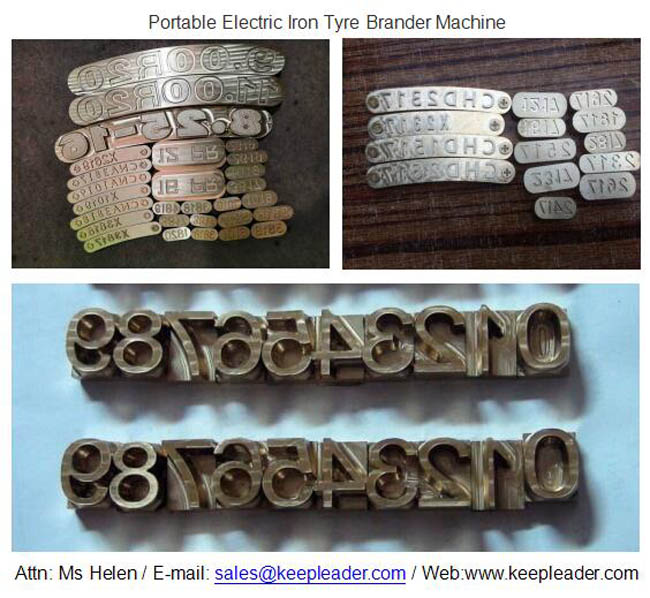

Branding Dies
Portable Electric Iron Tyre Brander Machine adopts DOT Date Plate to replace your old DOT read or Changeover characters to combine new idenfying Code/Mark
Contact Us
Portable Electric Iron Tyre Brander Machine is professional tool for Tire/Tyre shop or tire distributor to brand DOT date, tire end user to mark identifying,traceable numbers, because of numerous reads of DOT dates,logos,Identifier,Codes,Marks and exclusive dimension , herein if you cannot find what your want, please consult your proposals with KEEPLEADER's Tech Team before your order
