N95 Making Blank Face Mask Ultrasonic Welding Machine for Medical KN95_N95 Mask Sealing Ultrasonic Welding in Plastic Welder

N95 Making Blank Face Mask Ultrasonic Welding Machine

N95 Making Blank Face Mask Ultrasonic Welding Machine for Medical KN95_N95 Mask Slealing Ultrasonic Welding in Plastic Welder

N95 Making Blank Face Mask Ultrasonic Welding Machine is used for shaped N95_KN95 Face Mask layers edge sealing after cutting process, in manual making face mask, applied for in different welding processes with customized welding mold

Machine Description


01: Application

N95 Making Blank Face Mask Ultrasonic Welding Machine is professional welder for N95,KN95 and other fold-able face mask of edge welding after shaped cutting process, this Face Mask Ultrasonic Welding Machine also can used for other welding process in N95,kn95 Face mask making by changing customized welding acoustic horn and fixtures, Face Mask ultrasonic welding machine keep its priority in clean, stable and reliable and low energy consumption, because of ultrasonic wave generates mechanical vibration caused interior heating in the precise area of Non-woven cloth, spun-bond and melt-blown Polypropylene cloth for shaped 3~6 ply mask blank edge sealing, its welding will be consumption, efficient and economical operation no preheating and heat preservation

02: Parameter

Name

N95 Making Blank Face Mask Ultrasonic Welding Machine

Model

KLC-4215

Ultrasonic power

4.2kw

Acoustic frequency

15khz

Power Supply

110v,60hz or 220v,50hz Single phase

Max welding size

250mm

Stroke distance

70mm

Welding speed

20~30pcs per minute

Air compressor

1HP~2HP

Weight

280kgs

03: Character

Time and pressure are adjustable

Pneumatic driven allow fast welding

Low price and single operation without consumption

The user of low-noise ultrasonic. Anti-noise interference

Foot-pedal control or two start button to trig the operation

Widely used in different welding process by change welding mold

The machine is easy to operate, easy to understand, ordinary workers can operate

Germany imported transducer and Taiwan AIRTAC pneumatic valve and cylinder to guarantee high-quality components assembly

Ultrasonic welding on face mask making to eliminate the glue using and allow the thermoplastic polypropylene layers to be self bonded, friendly environmental, low noise and easy operation

Increase face mask make quality-produce airtight and watertight seams

15kw, 4.2kw ultrasonic welding system is more fast, beauty bonding for large size

Aluminum and steel acoustic horn with ear-resistant is reliable and durable

Ultrasonic welding can quick melt the face mask layers without preheated for mass production

Ultrasonic welding is face mask blank layers edge sealing in best consideration without smoke, sparks, dont harm the fabric edge

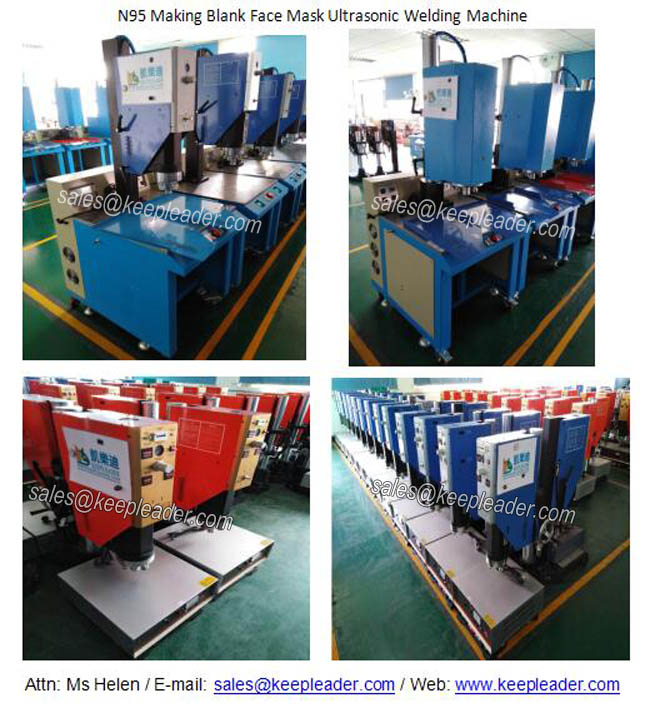

Detailed Images

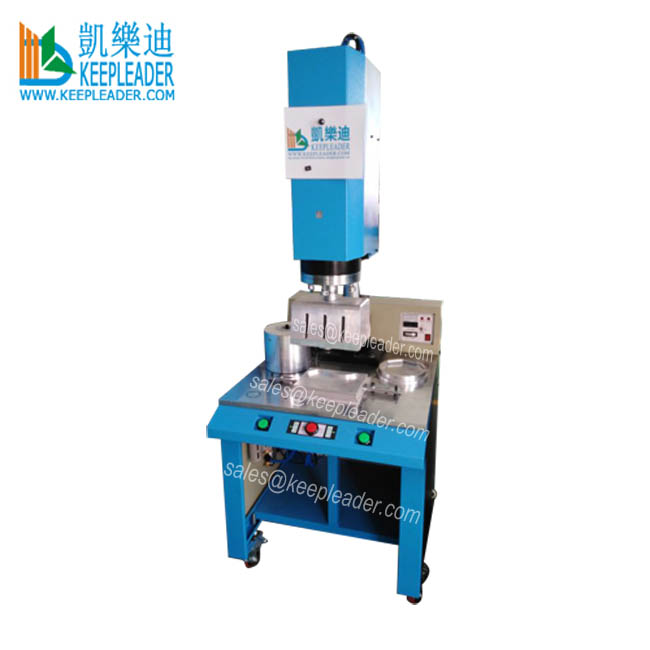

N95 Making Blank Face Mask Ultrasonic Welding Machine

N95 Making Blank Face Mask Ultrasonic Welding Machine is univeral ultrasonic welder integrated with laser shaped cutting  or other pressure cutting machine in manual production of N95_KN95 or other foldable face mask

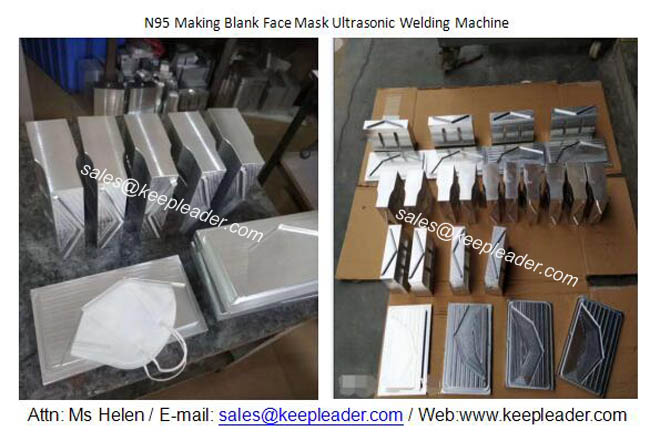

Tooling Images


N95 Making Blank Face Mask Ultrasonic Welding Machine

N95 Making Blank Face Mask Ultrasonic Welding Machine

N95 Making Blank Face Mask Ultrasonic Welding Machine is adopted for #1: Face Mask Edge welding #2:  Nasal Folding edge welding #3: Earloop Welding upon shaped face mask blank cutting process

Contact Us


N95 Making Blank Face Mask Ultrasonic Welding Machine is only considered for N95_KN95 face mask small quantities production combined with your existed layer shaped cutting machine, for automatic face mask making, keepleader can design #1: auto feeding #2: Nose bridge strip inserting #3: forming #4: auto earloop welding #4: folding #5: ultrasonic welding #6: cutting in auto production line in Face mask making, please contact us for tech confirmation
