Face Mask Spot Welder for Earloop_Band_Strap of N95_KN95_Respirator_Medical Mask Elastic Cord handheld ultrasonic spot welding

Face Mask Spot Welder for Earloop_Band_Strap

Face Mask Spot Welder for Earloop_Band_Strap

Face Mask Spot Welder for Earloop_Band_Strap is #1:hand-held type #2: 500w ultrasonic energy #3: welding size: 8mm or 10mm #4: option: hand trigger and foot pedal swith

Machine Description


Face Mask Spot Welder for Earloop_Band_Strap

01: Application

Face Mask Spot Welder for Ear loop_Band_Strap is a hand-held spot welder used for Elastic belt/band/strap/ear-loop in making cup mask, butterfly mask, duckbill mask, N95/KN95 mask and disposable surgical face mask, also can used for spot welding any object made of chemical fiber fabrics, non-woven fabric, needle-free stitching of hot-melt fabric, spunbund fabric, and Nylon cloth, Polyester cloth, muti-layer cloth as well as various laminating coated film paper, the size, shape and pattern of welding tip is optional, which is complied in practical bonding process

02: Parameter

Name

Face Mask Spot Welder for Ear loop_Band_Strap

Model

KLC-5028

Ultrasonic Power

500w

Ultrasonic Frequency

28khz

Welding size

8mm, 10mm, optional

Power Supply

110v,60hz, or 220v,50hz, single phase

Horn material

Titanium

Amplitude

Auto tuning

Option

Pistol, handle, or equipped with pneumatic pedal control

Packing Size

50*40*38cm

Net Weight

11kgs

Gross Weight

12kgs

03: Character

can weld ear-loop/band planar face mask and three-dimensional masks

Has optional control in hand trigger and foot pedal

No smoke,scorching, blacken or sparks during processing,

No damage in fabric cloth edges and burrs can also be avoided

No preheating is required during welding and continuous welding is possible

Color paper and gold foil paper can be added, bronzing functions can be achieved

Auto-tuning and load regulation maintains even amplitude

Overload protection to protect ultrasonic welder

Short circuit protection in power circuit design considered

Rapid sonotrode quick exchanging

Strict contract auditing involved, all departments to assure the feasibility of each order

Low cost, limited energy consumption and environmental friendly

Small, and flexible and operation is simple and convenient

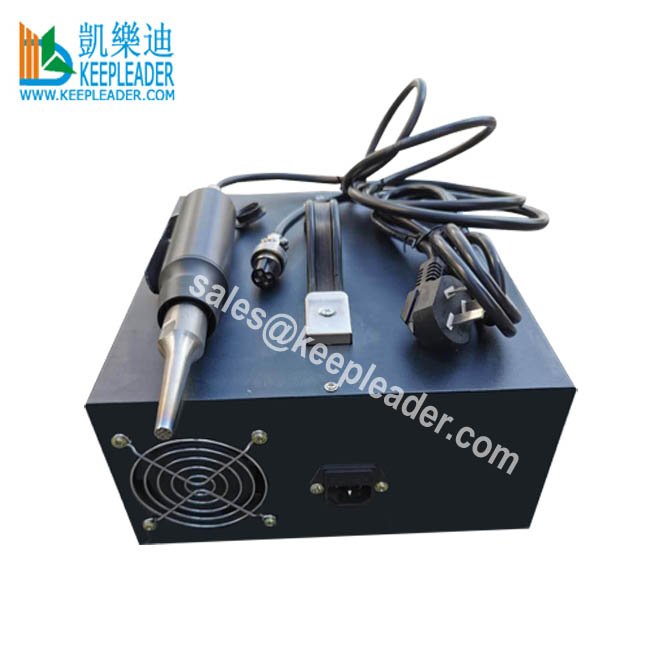

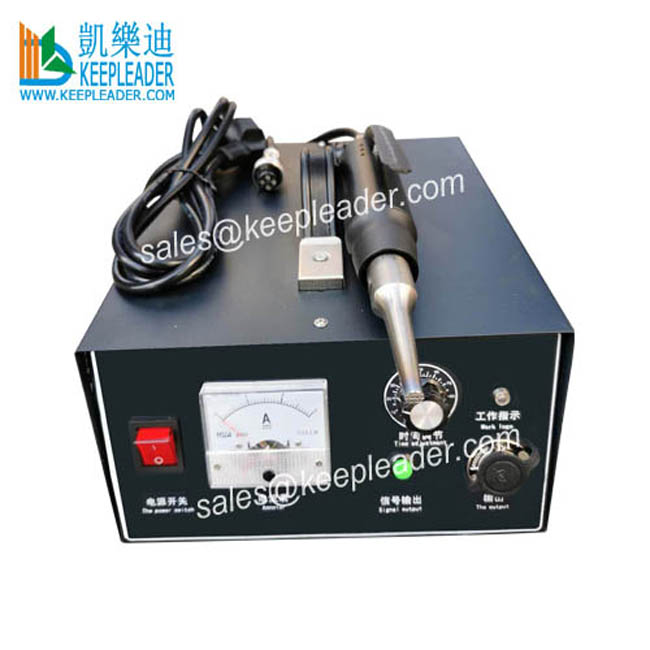

Detailed Image


Face Mask Spot Welder for Earloop_Band_Strap

Face Mask Spot Welder for Earloop_Band_Strap is hand-held welder for convenient/portable welding ear loop in face mask making, which is also can mount in a pneumatic driven, foot pedal switch control console

Contact Us


Face Mask Spot Welder for Earloop_Band_Strap not only can weld planer face mask but alos can weld earloop in making 2D,3D N95/KN95 respirator face mask, customized pattern, shape and size is acceptable, also can add golden foil in printing during welding process, consult with us for more details by under channel

Attn: Ms Helen

E-mail: sales@keepleader.com

Cellphone: +86 13590415784 (Wechat/Whatsapp)

Tel: +86 755 84190358

Website: www.keepleader.com / www.hfwelds.com
