Semi-Auto Face Mask Earloop Ultrasonic Welder for N95_Surgical Face Mask Making Ear Loop Welding Machine in Face Mas Auto Making

Semi-Auto Face Mask Earloop Ultrasonic Welder

Semi-Auto Face Mask Earloop Ultrasonic Welder for N95_Surgical Face Mask Making



Semi-Auto Face Mask Ear loop Ultrasonic Welder is automatic welding Ear loop  in Face Mask Making only necessitate loading Mask blank/slice, Dual points of one side auto bonding, then auto rotate the ohter side for same prodessing to complete  the whole circle welding

Machine Description


Semi-Auto Face Mask Ear loop Ultrasonic Welder

01: Application

Semi-Auto Face Mask Ear loop Ultrasonic Welder is professional solution ultrasonic welder for face mask ear loop/elastic band, combined automatic function of rotary fixture, positioning, elastic wire feeding, scissoring, dual points welding, for N95/KN95/Medical face mask making, ear loop/band necessitate bonding upon face mask blank slicing, this ultrasonic welder auto feeding elastic wire/belt/band of 3~7mm width in forming a half circle, then complete two points bonding from one side to other side in circle cutting by rotary fixture, only one person necessitate loading the face mask blank in working position, the user can change fixtures to weld various face mask, eg: N95 mask, C shape, Cup shape, medical 3-ply disposable mask, etc, moreover, just small amendment, this ultrasonic welder could be used for different products like zipper, bra strap welding

02: Parameter

Name

Semi-Auto Face Mask Ear loop Ultrasonic Welder

Model

KLC-2020DA

Power source

110v,60hz or 220v,50hz single phase

Bonding size

8mm or 10mm of single bonding

Operation

PLC + Touch screen

Speed

20~25pcs/Min (Adjustable)

Air supply

0.5~0.7Mpa

Dimension

1200*1000*1600mm

Net weight

188kgs

Working Environment

Temp. 10~35, Humidity: 5~35%, no Combustible, corrosive gas, no dust

03: Character

High efficiency, smooth functioning, easy to handle

Compact steel structure, robust, dust resistance

PLC and touch screen in running and operation

Intelligent control, simple and convenient operation

Adjustable scissors to select variable cutting angles

Ultrasonic bonding tech for compounding fabric is qualified, stable and durable

Auto rotary device, elastic belt feeding, and sect cutting can increase productivity

Modular design, easier to combine various solution in various practical welding

Shutdown alarm design to warn the wrong operation and defected performance

Electrical components adopted international standard for quick access in future replacement, maintenance

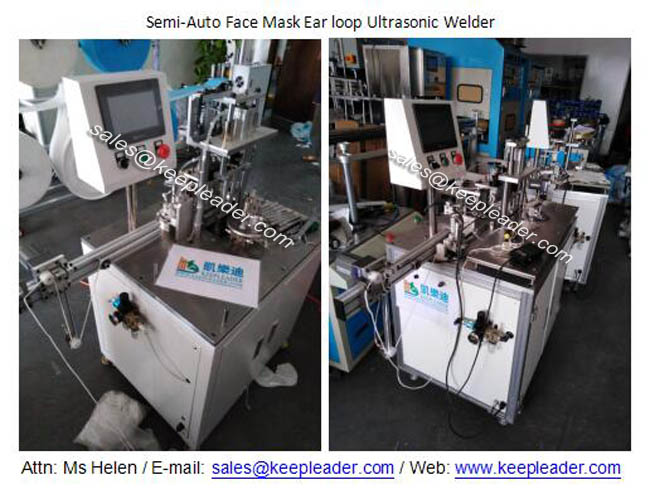

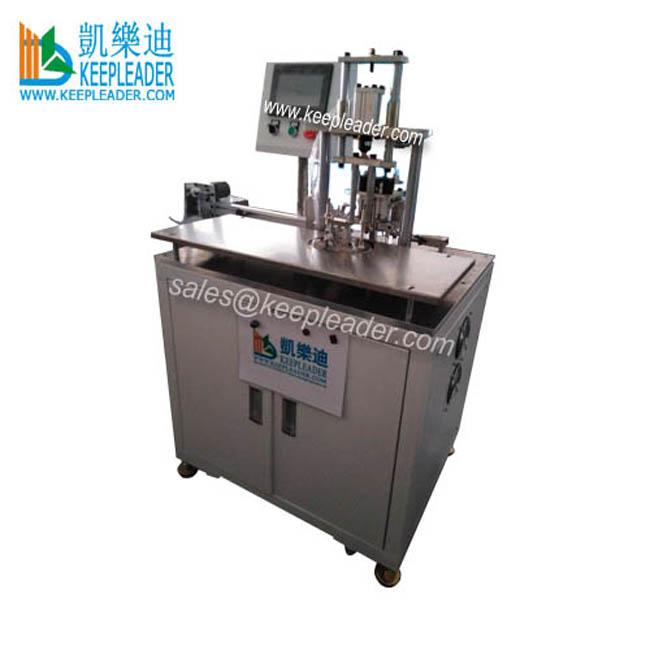

Detailed Images


Semi-Auto Face Mask Earloop Ultrasonic Welder for N95_Surgical Face Mask Making

Semi-Auto Face Mask Ear loop Ultrasonic Welder can combine with our Face Mask Slicing/forming machine in organizing a production line

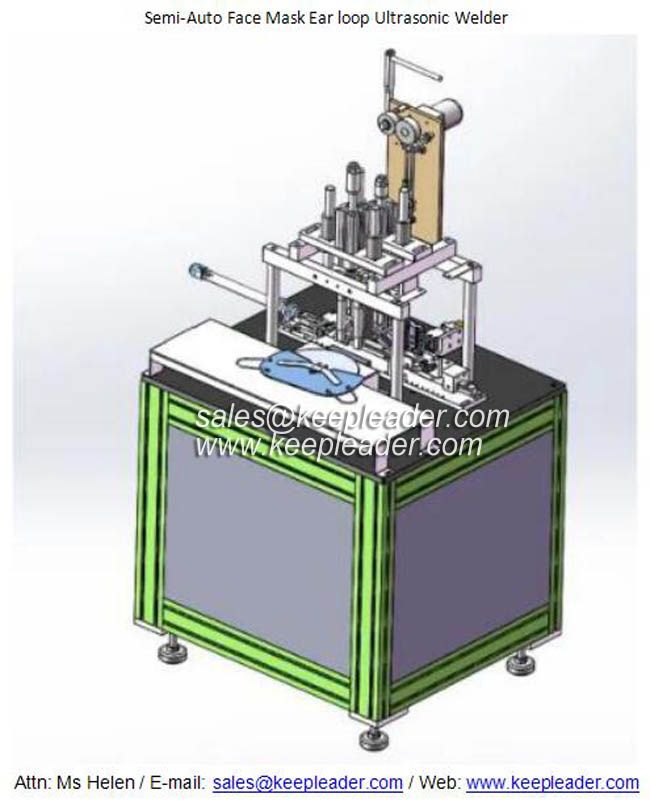

Tech Illustration




Semi-Auto Face Mask Earloop Ultrasonic Welder for N95_Surgical Face Mask Making

Semi-Auto Face Mask Ear loop Ultrasonic Welder can accept customized amendment on its function, configuration and structural mechanism for different ear loop/band/belt welding processes

Contact Us


Semi-Auto Face Mask Ear loop Ultrasonic Welder is semi-auto spot welder, which also have is optional affiliation in #1: handheld #2: Pneumatic/Pedal Control #3: Automatic Spot welding
