N95 KN95 Face Mask Blank Automatic Forming Machine for Face Mask Respirator Blank Auto Making of Folding Mask Semi-Auto Making

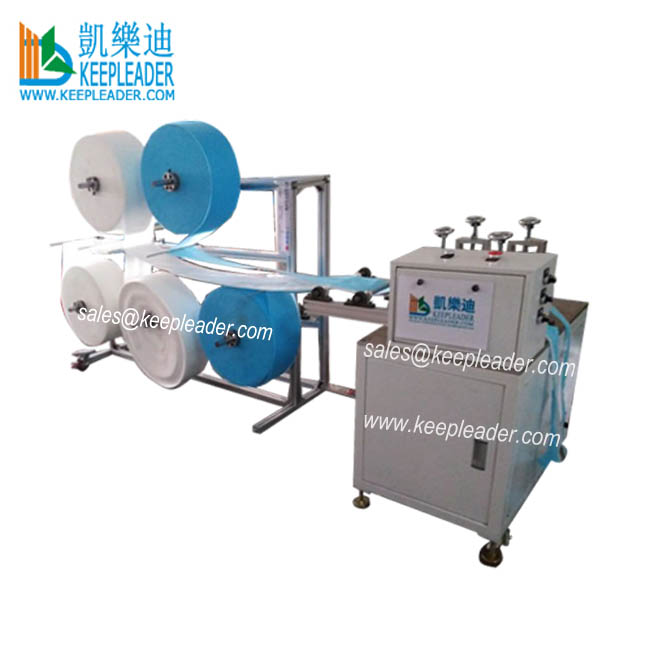

N95 KN95 Face Mask Blank Automatic Forming Machine

N95 KN95 Face Mask Blank Automatic Forming Machine



N95 KN95 Face Mask Blank Automatic Forming Machine is #1: Auto roller feeding #2: Ultrasonic roll compounding, embossing and cutting #3: roll tracting #4: 3~5 ply of Non-woven Fabric, Spunbond PP, Meltblown PP laminating in making Face Mask blank/tablet

Machine Description


N95 KN95 Face Mask Blank Automatic Forming Machine

01: Application

N95 KN95 Face Mask Blank Automatic Forming Machine also known as mask auto laminating machine, or blank mask auto slicing machine, is used for automatic production of muti-layer face mask, compounding 1~6 layers of PP Spun-bonded non-woven, activated carbon, and filter material, melt-blown fabric, N95 KN95 Face Mask Blank Automatic Forming Machine is composed auto feeding material rack, and forming system, the forming system includes embossing, pressing, cutting and conveying, the compounding fabric rollers on the rack can be adjusted to match the forming system in its width, tension control, tracking force and roller quantities, the entire machine from ram materials into the sealed edge N95/KN95/FFP2/FFP3 or other three dimensional respirator mask blank, also need combined with nasal bridge clip hot press mounting machine, VShaped edge ultrasonic welding machine and ear loop ultrasonic welding machine in a whole production procedures, N95 KN95 Face Mask Blank Automatic Forming Machine has stable performance, yield low defect rate and is easy to operate, which is reliable and worthy investment in face mask making shop

02: Parameter

Name

N95 KN95 Face Mask Blank Automatic Forming Machine

Model

KLC-150

Ultrasonic Power

3.5KW

Ultrasonic Frequency

15khz

Embossing Speed

5~20m/min

Productivity

40~60ps/ min

Mask layers

1~5 layers

Power Source

220v/10A

Weight

300kgs

Dimension

4200*900*1700mm

03: Character

Servo motor and step motor driven, high precision

One person can monitor the running, which saves labor

The production capacity reaches 40~60 tablets per minute

Self-diagnosis and anticipate alarm in case of error happen

Embossing and cutting adopts ultrasonic bonding and shearing

Modular and user-friendly design, very easy to operate and maintain

Counter is equipped allowing effective control and planning production

The material rack is made of aluminum alloy, which is sleek, solid and rustless

PLC and touch screen operation and controlling is visible and convenient in setting and operation

Photoelectric detection of raw materials prevents errors and reduces waste

The machine mount uses pulleys and fixed feet, which is easy and fast to move, strong in stability, and does not shape in running

The equipment can be modified according to clients requirements in size, length, and thickness

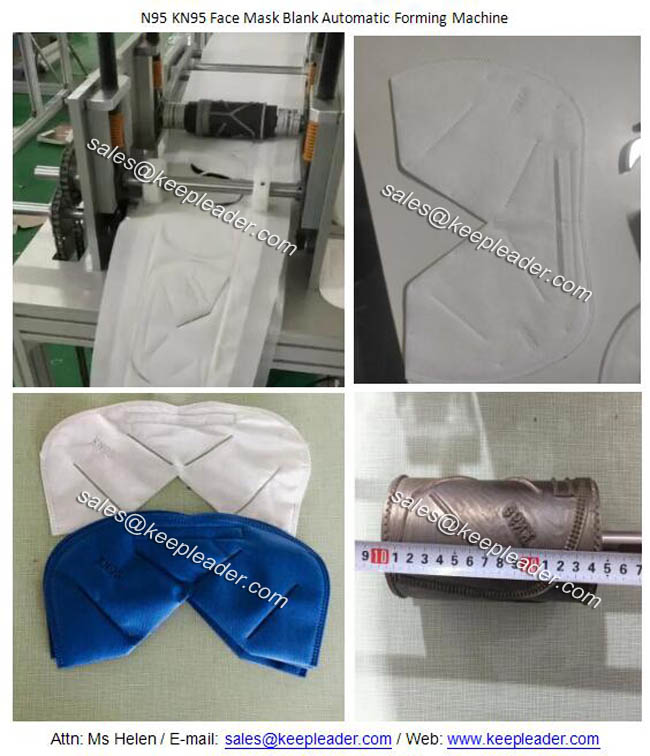

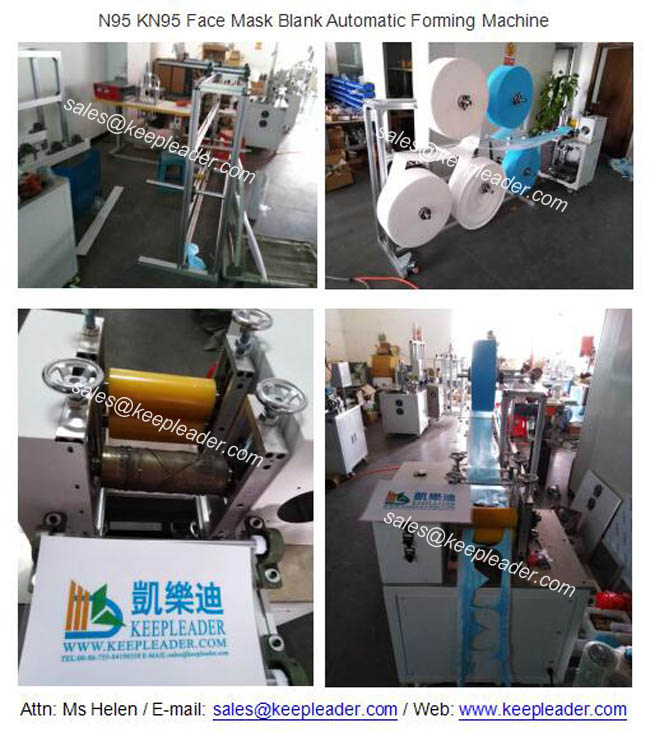

Detailed Images


N95 KN95 Face Mask Blank Automatic Forming Machine

N95 KN95 Face Mask Blank Automatic Forming Machine can compose a Face mask making line with Nasal bridge clip hot press bonding machine, earloop welding machine and "V" shaped folding edge ultrasonic welding machine

Machine Uses


N95 KN95 Face Mask Blank Automatic Forming Machine

N95 KN95 Face Mask Blank Automatic Forming Machine can auto making N95/KN95 Mask blank/tablet/slice

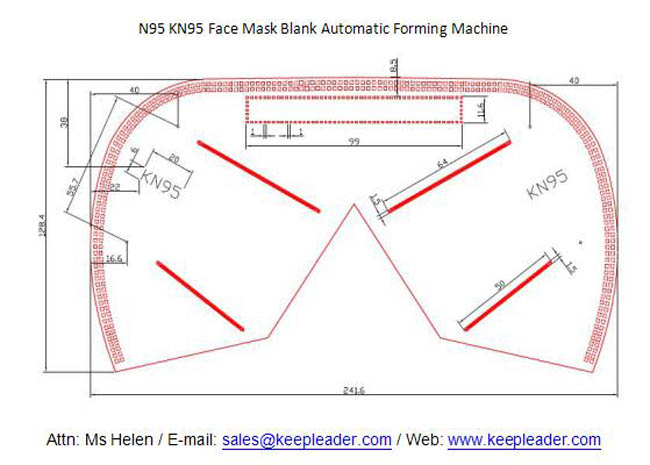

Size Reference


N95 KN95 Face Mask Blank Automatic Forming Machine

N95 KN95 Face Mask Blank Automatic Forming Machine can produce various 2D,3D foldable respirator face mask by changing knurling roller, the size, shape and pattern is acceptable customization

Contact Us


N95 KN95 Face Mask Blank Automatic Forming Machine is reliable performace, flexible combination,Small investment & low risk, labor saving design, Simple operation & maintenance, compacted structure, which can help you to quick access in face mask making, pls contact keepleader to get more knowledgeable assistance

  Attn: Ms Helen

 E-mail: sales@keepleader.com

  Cellphone: +86 13590415784

  Tel: +86 755 84190358 (What/Whatsapp)

 Website: www.keepleader.com   /   www.hfwelds.com
