Medical Face Mask Blank Making Auto Forming Machine for 3 Ply Nonwoven Medical_Surgical_Disposable Face Mask Automatic Making

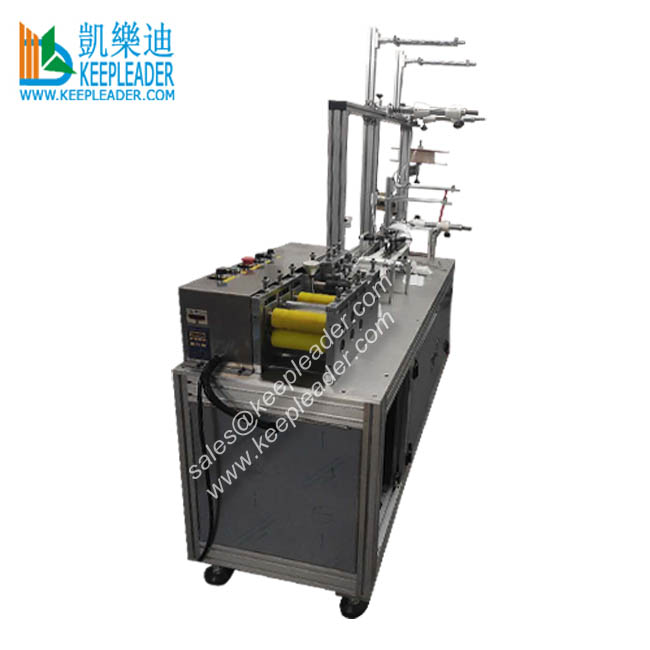

Medical Face Mask Blank Making Auto Forming Machine

Medical Face Mask Blank Making Auto Forming Machine

Medical Face Mask Blank Making Auto Forming Machine is automatic making surgical/plannar face mask blank/slice

Machine Description


Medical Face Mask Blank Making Auto Forming Machine

01: Application

Medical Face Mask Blank Making Auto Forming Machine can auto make surgical mask slice/blank, also known as plane mask production line, and 3~5 layers PP non-woven, spun-bond fabric and PP melt-blown cloth compounding plannar mask tablet, auto processing procedures includes material roll unwinding, coil feeding, pressing, nose clip feeding, mask forming, edge hemming, mask welding and cutting, this Medical Face Mask Blank Making Auto Forming Machine will be composed a auto production line with 2~4pcs mask ear loop ultrasonic welding machine. Its modular design is easy to debugging, commissioning and future maintenance, flexible combination in medical face mask making becomes possible for quick access into normal production and troubleshoot without specific training

02: Parameter

Name

Medical Face Mask Blank Making Auto Forming Machine

Model

KLC-200

Power

8.5kw

Power Source

110v,60hz or 220v,50hz

Productivity

100~120pcs / min

Mask dimension

L:135mm*W:95mm

Fabric width

200mm

Layer number

3~5pcs

Dimension

4600*1280*2000mm

Weight

800kgs

03: Character

High output, good stability and low failure rate

Modular and user-friendly design for convenient maintenance

Auto counting function can record and reset the output quantities

High pressure double crank to control the die opening and closing

Simple structure in linear type, easy in installation and maintenance

by changing mold to produce different size and styles mask is possible

Photoelectric detection of ram material to avoid mistake and reduce waste

Electronic and pneumatic components are all obeyed international standard

1 to 5 layers of fabrics compounding is optional to meet different needs of customers

PLC Programming control and touch screen is visible operation and servo motor driven traction

Automatic tension control of raw material to reduce waste and improve qualified rate of finished mask

Ultrasonic system adopts auto tuning ultrasonic generator and renown brand transducers, which has good welding quality and durable performance

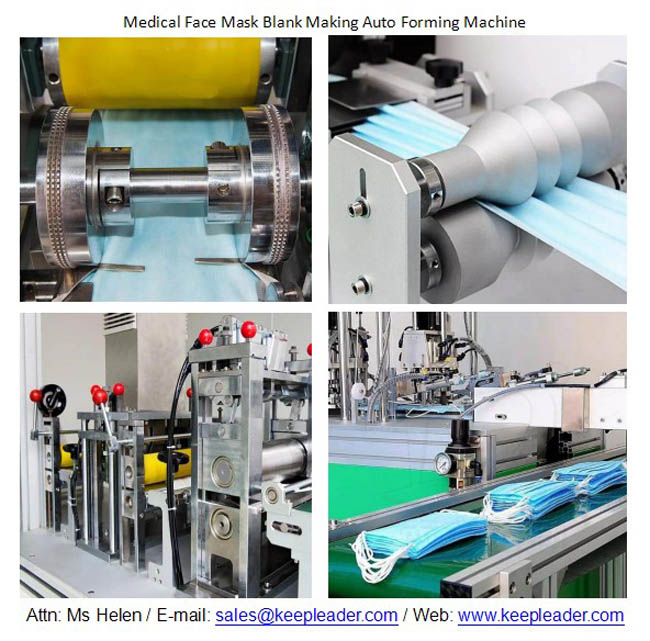

Detailed Images


Medical Face Mask Blank Making Auto Forming Machine

Medical Face Mask Blank Making Auto Forming Machine has functions of #1:material auto feedling #2: auto folding #3: auto edge hemming #4: Nasal bridge clip auto inserting #5: auto ultrasonic welding and cutting

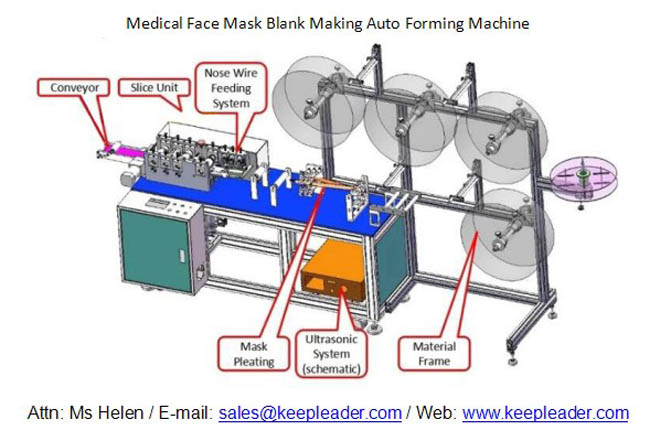

Function illustration


Medical Face Mask Blank Making Auto Forming Machine

Medical Face Mask Blank Making Auto Forming Machine is modular deisgn. this equipment is used for mask blank auto making, which will combined with earloop ultrasonic welding machine
