Pneumatic Gold Blocking Hot Foil Stamping Machine for Leather_Paper_Wood Foil Blocking Machine of Packing Box Printing_Stamping

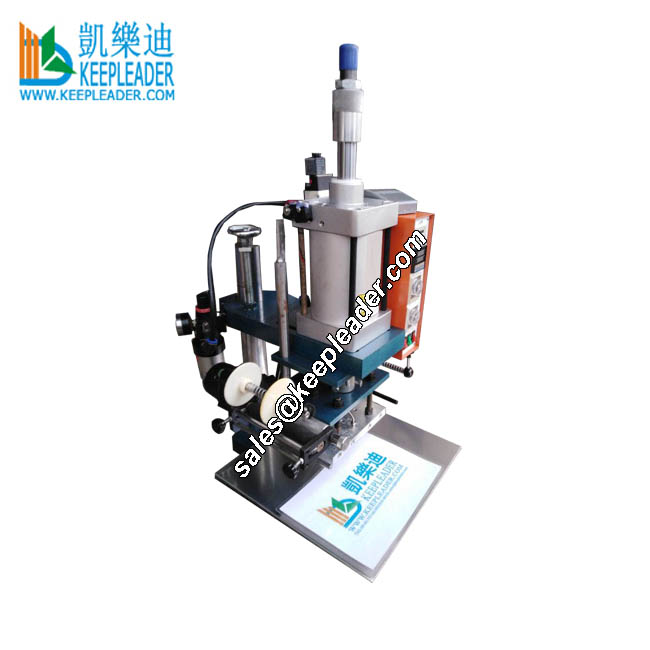

Pneumatic Gold Blocking Hot Foil Stamping Machine

Pneumatic Gold Blocking Hot Foil Stamping Machine

Pneumatic Gold Blocking Hot Foil Stamping Machine is stamping imprinting for embossing and debossing pattern with your demanding combination of monogram,Logo,Graphic images, Letters & Numbers, Labels

Machine Description


Pneumatic Gold Blocking Hot Foil Stamping Machine

01: Application

Pneumatic Gold Blocking Hot Foil Stamping Machine is the simplest form printing, foil block printing, sometimes called hot foil stamping, is where a pro-glued metallic foil, is pressed by a heated die pneumatic driven, into the surface of a material, this is a permanent way of applying a quality finish to materials, such as card, for packaging, plastic, rubber, wooden, leather, paper, the blocking foil is metallic, but comes in a range of colors including gold, silver, green, red, white, blank, green, it is even possible to block print holographic foils, creating 3D effects, foils are also available as stain, gloss and matt

02: Parameter

Name

Pneumatic Gold Blocking Hot Foil Stamping Machine

Model

KLS-1520

Volt Plug in

220V,50HZ

Heating Power

4kw

Max Pressure

500kgs

Foil Blocking Size

15*20cm

Stamping Speed

20~10 times / minute

Working Temperature

0~500 degree

Preheating time

5~10 minutes

Gross Weight

120kgs

Measure

800*600*1200mm

03:Character

Adjustable and motorized foil feed pull

Digital control panel is legible in data resetting

Manual mode and foot pedal switch auto stamp is selectable

Height and pressure adjustment to accommodate different size substrates

Reasonable design, precise processing, high quality user assured, easy maintenance

Ideal for leather goods, business card, plastic articles, book covers, diaries, wood articles

Quick-exchange stamping plate/die is convenient to combine versatile imprinting pattern

Adjustable foil guides to ensure that the foil is centrally positioned between the heated print head and the substrate

Detailed Images

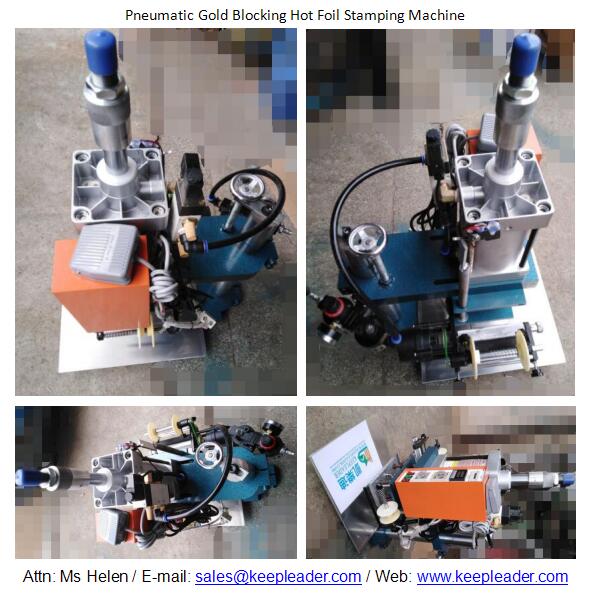

Pneumatic Gold Blocking Hot Foil Stamping Machine

Pneumatic Gold Blocking Hot Foil Stamping Machine has features in #1: Pneumatic driven #2: Stroke stamping #3: Auto blocking foil feeding system #4:Compacted structure #5: Foot pedal switch auto mode #6: Digital Setting Panel

Machine Uses


Pneumatic Gold Blocking Hot Foil Stamping Machine

Pneumatic Gold Blocking Hot Foil Stamping Machine is applied for electronic parts, packages, artworks made of Plastic, wooden, paper, leather and Fabric Cloth

Contact Us


With keepleaders Pneumatic Gold Blocking Hot Foil Stamping Machine, you can feel confident that our hot stamper are user-friendly and make to last, have in-built safety features and come with comprehensive instructions as well as free China based telephone, email or whatsapp support as needed, please contact to find what can we do for you
