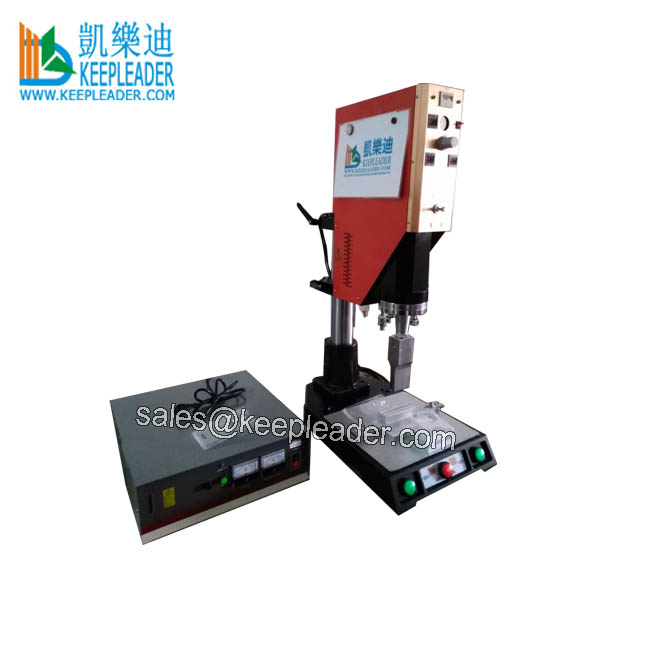

Ultrasonic Bonding PET Blister Sealing Ultrasonic Welder for PVC_PETG_APET_PET Blister_Ultrasonic Welding_Sealing Machine

Ultrasonic Bonding PET Blister Sealing Ultrasonic Welder

Ultrasonic Bonding PET Blister Sealing Ultrasonic Welder

Ultrasonic Bonding PET Blister Sealing Ultrasonic Welder is 2.6kw, 15khz ultrasonic welder applied for PET blister sealing

Machine Description

Ultrasonic Bonding PET Blister Sealing Ultrasonic Welder

01: Application

Ultrasonic Bonding PET Blister Sealing Ultrasonic Welder is ultrasonic vibration heat thermal bonding tech of PET_PVC Blister_Clamshell sealing in Blister packaging, no other sealing process is faster or an cost effective as ultrasonic, ultrasonic sealing provides tamper proof protection, and meets all the sealing requirements from all the major retailers for sealing clamshell to eliminate losses due to shrinkage or shipping damage, whether you are sealing just a handful, or have high volume requirements, our Ultrasonic Bonding PET Blister Sealing Ultrasonic Welder can accommodate all configurations,

Ultrasonic Bonding PET Blister Sealing Ultrasonic Welder is also acceptable for customized structure include: bench top style plunge sealers, bench-top semi-automatic systems for end of line flexible conveyors, hand-held small spot welders for low volume small seal areas, rotary systems with automatic eject stations for higher volume, less base models for integration into your automatic packaging system

02: Highlighting of ultrasonic bonding blister

Tamper proof packaging applications ideal for sonic sealing

Low cost: don’t need preheating, and adhesive. Energy efficient and economical

Safe: and recycle: no RF damage to electrical circuits or wiring, environmentally

High Speed: up  to five times faster that RF, Quick into the ready working status

Wide range of bonding: Can seal blister made of PET, ETE,PETG, RPET, PVC, styrene, PP

Space Saving: Small foot print fit anywhere in industrial packaging, home, shop packaging

Low tooling costs: standard horns and fixtures can be used and take less 5 minute to change-over

Aesthetically pleasing: seal patterns are limitless in Dot, Netting, twill, rhombic or your preferred

03: Parameter

Name

Ultrasonic Bonding PET Blister Sealing Ultrasonic Welder

Model

KLC-2615P

Ultrasonic Power

2600w

Ultrasonic Frequency

15khz

Power Plug in

110v/60hz or 220v/50hz

Max Input Power

1.2kw

Welding Size

10*16cm

Stroke Distance

70mm

Welding time

0.1~99s

Pneumatic Range

2~7 Bar

Air compressor

1~2HP

Welding Pressure

2~5kgs/cm2

Net Weight

100kgs

Gross Weight

128kgs

Packaging volume

0.6CBM

04: Character

Low energy consumption during welding

Handles mot thermoplastics (PVC, PET, PLA etc)

The sealing blister can have air and liquid-tight effect in bonding

Lightweight and compact for convenient moving and save the room

Visually appealing weld shape through individual anvil impression

Press driven by a pneumatic cylinder for zero effort on the operator’s part

Need safety and recycling standards, no staples or other types of fastener
Compatible with most blister packing sizes by adopting different ultrasonic power

Titanium Sonotrode/horn is wear resistance and reliable vibration transmission

ultrasonic sealing is cool welding,No solvents and filters or preheating for welding

Sealing time: approx 1 second for plunge sealer, also can have rotary table for mass production

Detailed Images

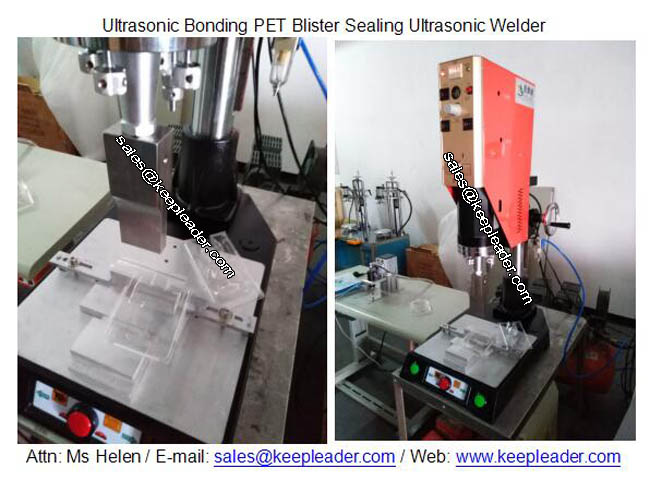

Ultrasonic Bonding PET Blister Sealing Ultrasonic Welder

Ultrasonic Bonding PET Blister Sealing Ultrasonic Welder has Titanium Horn and Steel Fixture/Anvil, Customized Shape and dimension complied with your Blister in welding

Machine Uses

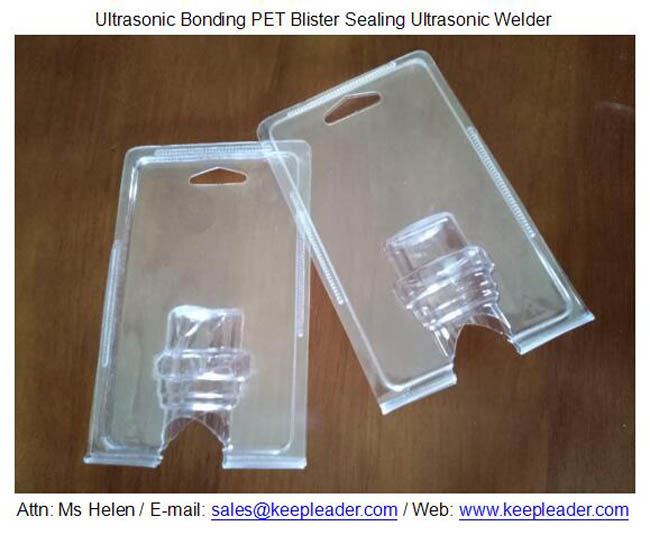

Ultrasonic Bonding PET Blister Sealing Ultrasonic Welder

Ultrasonic Bonding PET Blister Sealing Ultrasonic Welder can weld Blister_Clamshell made of PET,PVC, PP

Contact Us


Ultrasonic Bonding PET Blister Sealing Ultrasonic Welder has Versatile models in#1: handheld #2: Table top #3: Auto Turntable #4: ultrasonic welding modular, which is optional and complied with your demanding, pls contact us to find what can we do for your business
