Ultrasonic Welder Horizontal Bonding Pipe Welding Machine for LED Pipe Guardrail_LED Tube Light Bonding Ultrasonic Welding Unit

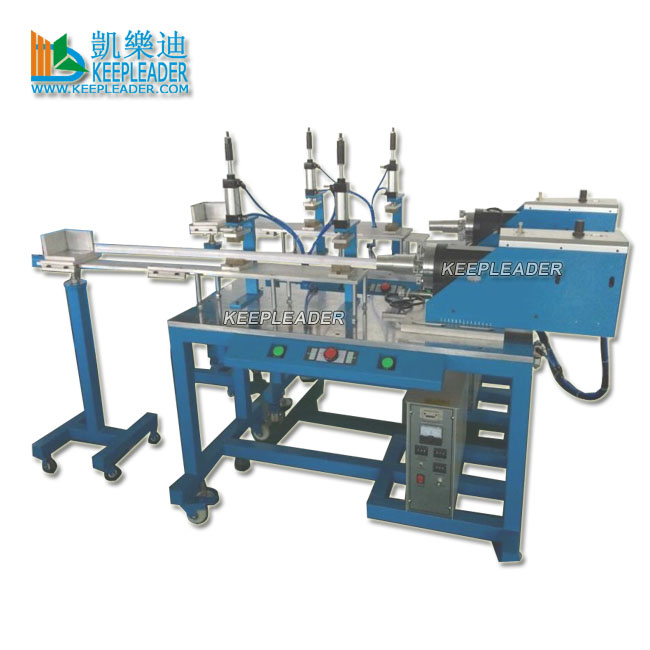

Ultrasonic Welder Horizontal Bonding Pipe Welding Machine

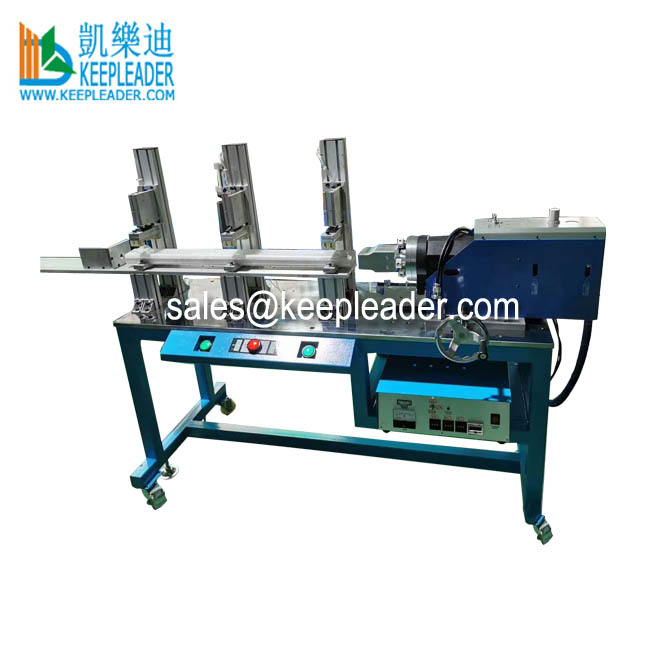

Ultrasonic Welder Horizontal Bonding Pipe Welding Machine



Ultrasonic Welder Horizontal Bonding Pipe Welding Machine is professional solution in #1: plastic guardrail tube sealing, #2: LED guardrail tube welding #3: LED Full-color digital tube welding #4: LED contour lamp welding

Machine Description


Ultrasonic Welder Horizontal Bonding Pipe Welding Machine

01: Application

Ultrasonic Welder Horizontal Bonding Pipe Welding Machine is the process of creating a molecular bonding between two compatible thermoplastics in LED tube/pile and cap sealing, welding offers superior strength, hermetic sealing in LED light assemble, and reduces cycle times, there are three main steps to weld: press, ultrasonic vibrating frictional heating, and cooling, ultrasonic welding processes are primarily differentiated by their heating methods, the application of force and allowances for cooling are also mechanical considerations, which may vary from machine to machine within the general process category, there are several methods of plastic welding, ultrasonic welder adopts high frequency(ultrasonic wave) to cause molecular friction in polymer material melting bonding and quick solidification, which is ideal solution in Led lighting case, box, tube connection

02: Parameter

Name

Ultrasonic Welder Horizontal Bonding Pipe Welding Machine

Model

KLC-2615H

KLC-2020H

Ultrasonic Power

2600w

2000w

Ultrasonic frequency

15Khz

20Khz

Power p Plug In

110v,60hz or 220v,50hz single phase

Max bonding area

200mm

180mm

Output time

“Fuji” timer control 0.01~6s

Control Voltage

24v

24v

Stroke Distance

100mm

100mm

Height adjustment

450mm

450mm

Weight

180kgs

180kgs

03: High lighting of ultrasonic welding

Suitable for welding PVC, ABS, Acrylic, PC, PA, PE, PP, PS

No need any adhesives or flux, and less heat consumption

Easy operation, high efficiency, excellent outward appearance, and high strength

AIRTAC pneumatic components durability

Automatic and manual operating mode, convenient for adjusting

04: Character

With mechanical limit tuning

Using Brandson circuit, stable output

NTK transducer, with strong power and stable

FM and frequency of automatic compensation circuit

Digital welding parameter setting, intuitive and accurate

Titanium horn, durable, reliable molecular vibration force

Press button and pedal valve control the operation in option

Welding length is adjustable, custom welding mold is available

Welding head overall limit structure to ensure that welding is not offset

Four-pint lever with adjustable flange structure, convenient transfer mode

A full set of high-quality renown brand parts assembled, reliable performance

Indexed quick-change system for tool and sonotrode exchange reducing set-up time and defective welds

Machine column base, and actuator made of torsion-resistant special alloy

Actuator with precision roller guides

Contact Us


Ultrasonic Welder Horizontal Bonding Pipe Welding Machine has custom size and configuration in fixture bench, please contact us to find more what we can do for you
