Immersible Washing Bath Golf Clubs Ultrasonic Cleaner Machine for Golf Club Balls_Groove_Grip Cleaning Ultrasound Washer Factory

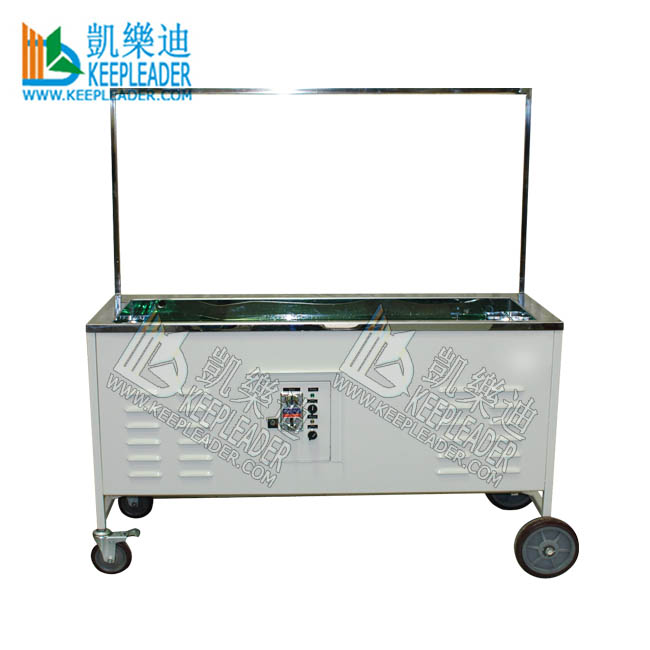

Immersible Washing Bath Golf Clubs Ultrasonic Cleaner Machine

Immersible Washing Bath Golf Clubs Ultrasonic Cleaner Machine

Immersible Washing Bath Golf Clubs Ultrasonic Cleaner Machine is token operated self-service vending machine of club clubs cleaning, this standing-along ultrasonic cleaner is built in counter, timer, temperature controller, alarming system, which is digital controller to avoid tampering, only the owner can access the controlling system to collect the tokens, thousands of golfers prove that ultrasonic cleaner preserves the life of golf clubs and they paly better golf with cleaning clubs heads, grips and groove

Product description


Mainly parameter
ModelKLE-1030F
Ultrasonic power1500w
Heating power1000w
General power4kw, 220-240v. 50hz/60hz single phase-10A
The frequency of transducer28khz or 40khz
The size of inner cleaning tank1230*390*245mm
The size of detected box80*90*30mm
The size of table boardL1370*W490*T2.0mm
The size of outside boardL1256*W486*H535mm
The size of bottom boardL1300*470mm
The size of standerL1366*486*H650mm
Token systemL200*H265mm
Upper bracketL1360*H950mm
Overall dimensionL1370*W550*H1510mm
configuration
Inner cleaning tankSUS304/2BT2.0, U shape, has two separated parts, tower above from the middle
detected boxSUS304/T1.5
TransducerBase bonded
GeneratorDigital, frequency self-locking mode
Heating boxSUS304
Level detected and controlOmron
table boardSUS304
Outside boardSteel A3, painting T2.0
Bottom boardSteel A3, painting T2.0
standerSteel A2, 25*25 square tube
Token system12V/24V
Upper bracketSUS304
Digital displayer of temperature controllerAutonics
IndictorCHNT
Emergency SWCHNT
Ultrasonic timerStage 1, AH5R
Other electronicSchneider, CHNT, Omron
Washing cradleSUS304 1/4 Round bar
Ball valveSUS304
Operation mode
1,stop mode 2,preparing mode 3,running mode (has two subsidiaries) 3.1,running mode-tokens accepted 3.2, running mode-ultrasonic cleaning 4,safe mode

pls contact us for more info and tech assistance upon Immersible Washing Bath Golf Clubs Ultrasonic Cleaner Machine

FRQ


 01:How does ultrasonic golf club cleaner work?

Ultrasonic cleaning has been used for many years to clean stubborn and difficulty to reach soils and dirty, ultrasonic generator generates sound waves at 28khz or 40khz, and transmitted by vibrators mounted the beneath of stainless steel tank, which cause the tank vibrating, the positive and negative sound compression can produce microscopic bubbles, the bubbles grow like a balloon until they implode, this is called cavitations, the function just like a balloon bursts and you fell the force of implosion against your face, but it is a micro scales, the result of this technology is to loosen then dislodge all the dirty from the golf clubs and grips through the microscopic blasts

02:How long does it take to clean clubs and can it damage clubs?

Ultrasonic cleaning process takes 3 minutes to get a thoroughly cleaned clubs and grips, is for more effective that traditional hand cleaning, also can save your elbow force, ultrasonic cleaning is microscopic scales suctioning force to take away the contamination without hard scrubbing, so, won’t cause any damage for precision surface treatment

03: How often clubs should be cleaned

Two factors always decide the cleaning frequency of your clubs, your handicap and the frequency of play, if you have a very low handicap (below 5) then you really want  to looking at cleaning your clubs every 1 to 2 rounds of golf, if you have a high handicap (above 18) then you would want to be cleaning your clubs at least every 4 rounds, if you only play a round of golf per week then your frequency of cleaning would be higher, this is because, the mud and grime would be left on the clubs and grips for longer, causing long-term damage and shorten the life-span of your clubs, also left un-cleaned for a week, the mud hardens in the grooves like cement marking it much harden to clean

04:How many clubs can be cleaned in a circle?

The standard model is built with inner size, can hold 14pieces clubs, if more that this are put into the tanks, will influence the cleaning effect, KEEPLEADER™ always to build customized size as your required

05: What features does your golf club ultrasonic cleaning machine have?

High power transducer for superior cleaning results

Large tank capacity for professional cleaning

Smart control of timer, counter, water level, token system, and ultrasonic trigger

Isolated-circuit design, keep water away for enhanced safety

Isolated cabinet to room ultrasonic generator with high power cooling fan

Product uses


Immersible Washing Bath Golf Clubs Ultrasonic Cleaner Machine

Immersible Washing Bath Golf Clubs Ultrasonic Cleaner Machine stands out of its quick and more effective performance in golf club cleaning than any other cleaning method, in traditional cleaning process,the users put clubs in the tank/bath, immersible for several minutes with detergent, clean club/grips/balls one by one with soft brush to avoid scratch the surface, but in ultrasonic cleaning, immerse a full set of golf clubs in ultrasonic tank with suitable detergent, start ultrasonic agitation to generate implosive bubbles to burst the stains outside and deep inside, particularly, ultrasonic jetting force can penetrate into the groove and other inaccessible area in molecular scale, that is way, ultrasonic cleaning golf club can restore the shiny head of golf clubs within 3 minutes

Our service

ABOUT PRODUCT

Customized design; Safe and convenient operation

ABOUT FACTORY

Comprehensive management process, leading technology and service team

EXPERIENCE

Internationalization of business process; Rich experience of Non-standard design

AFTERSERVICE

Uniform standard with special difference for each, Professional and Experienced service

MARKET

Yearly 30% Market share increased, One-to-one service

Company overview


Immersible Washing Bath Golf Clubs Ultrasonic Cleaner Machine

KEEPLEADER devotes into innovation,devemopment and construction bespoke ultrasonic cleaning machine with specified function and configuration, Immersible Washing Bath Golf Clubs Ultrasonic Cleaner Machine is a free-standing, token operated, immersible ultrasonic tank used for golf clubs cleaning in scenario of commercial, garage and golf course, we also accept other application of industrial cleaning with out customized solution

Contact  Us


Immersible Washing Bath Golf Clubs Ultrasonic Cleaner Machine

Immersible Washing Bath Golf Clubs Ultrasonic Cleaner Machine plays a reliable performance in golf club cleaning with ultrasonic vibration scrubbing force, because of its salient advantages of save time, cost,elbow force and accurately penetrate into the inaccessible area by hands cleaning, its cleaning effect is definitely proved by thousands of golfers, it is a trendy in golf course cleaning, keepleader devotes to innovation of bespoke ultrasonic golf club cleaning machine basing on practical demands, such as token operated for self-service, built-in casters with brake for convenient removing, counter, timer, thermostat controller, sealing cover with magnetic rod, separated computerized ultrasonic system and alarming buzzer, we also accept more configuration or further modification to satisfy favors from our clients, if you have other concerns, don’t hesitate to consult with us for tech verification, believe that our tech teams can works out a customers orientated solution for your final validation prior to production

Attn: Ms Helen / E-mail: sales (at) keepleader.com / Website: www.keepleader.com / Tel: +86 13590415784
