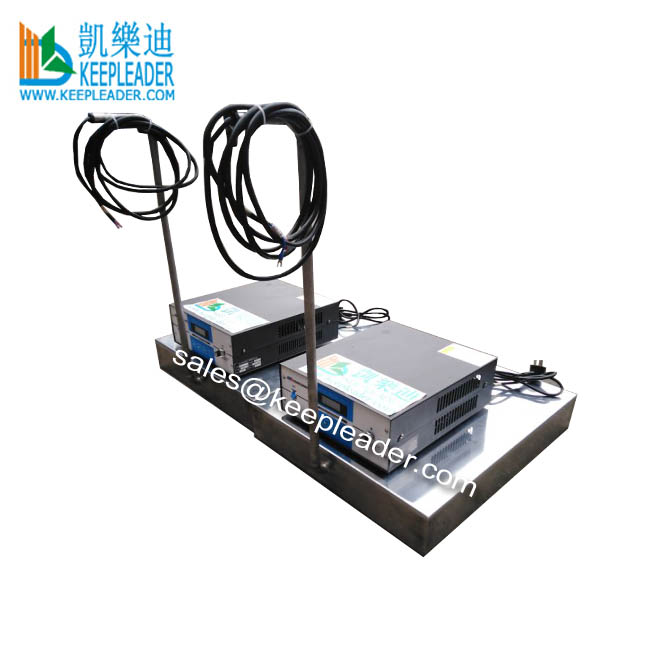

Submersible Ultrasonic Transducer Vibrators Pack Immersible Cleaner for Electroplated Parts Ultrasound Immersion Cleaning Plate

Submersible Ultrasonic Transducer Vibrators Pack Immersible Cleaner

SubmersibleUltrasonic Transducer Vibrators Pack Immersible Cleaner is most commonly added to existing stainless steel and other metallic based tanks. The boxes and ultrasonic power are made to fit such tanks in its dimension, orientation, andshape, keepleader can easily make our Submersible Ultrasonic Transducer Vibrators Pack Immersible Cleaner into any tank configuration size required for your application with little to no additional custom size pricing

Machine Description

01: Application

Submersible Ultrasonic Transducer Vibrators Pack Immersible Cleaner is also called vibrators box, vibrators plate and vibrators pad, which is a hermetically sealed stainless steel container,contains a number of transducer elements, there transducers offer the major advantage of versatility in system design, the custom cleaning tank can benearly any size that is appropriate to the application, and the transducers can be mounted so that the ultrasonic energy is directly and concentrated where it is needed most, in many cases, keepleader’s customers already have an existing tank, which they wish to convert into an ultrasonic aqueous cleaning, or solvent cleaning system, Submersible Ultrasonic Transducer Vibrators Pack Immersible Cleaner is composed of vibrators box, ultrasonic generator, the generator actuate  the transducers inside the box thereby making a cavitation effect inside the tank, the tank now works as an ultrasonic cleaning machine, the boxes/packs can either be placed directly at the bottom of the tank or can be mounted on the side wall of the tank, top mounted box also acceptable

02: Parameter

03: Character

Adaptable for continuous operation

Pulse powered generators with self-tuning circuit

Hermitically sealed pack/box and wire leading tube

Made out of 316-L Grade, 2mm thick stainless steel

Original BLT Type transducer and parallel circuit connection

Hard chrome plated for better lift andavoid cavitation corrosion

SUS stainless steel housing hard-Cr plating treatment (20+ microns)

Weld bond and epoxy resin glue technique used for bonding the transducer

Visual setting timer, counter, and frequency sweeping in use-friendly operation

Adjustable ultrasonic power to select the cavitation intensity for versatile applications

Auto-sweep frequency functionally to avoid stand frequency and cavitation density hot pot

With separate control ultrasonic electronic generator, is also acceptable for remote control

The box size, mounting position, hanging jacket, bolster hook, fixing bolts are all customized

Piezoceramic transducers combined with stainless steel membrane spectrum to apply vibration

The overall bending, straight seam double-sided protection welding, small deformation and completely leak-proof

04: Working Principle

Submersible Ultrasonic Transducer Vibrators Pack Immersible Cleaner is that the ultrasonic generator generates super-audioelectric energy higher that 20Khz, and the transducer is converted into the same frequency mechanical vibration into the cleaning liquid, and the ultrasonic conduction is forward and forward, which generates numerous tiny bubbles, these bubbles are formed and grown in the negative pressure region in which the ultrasonic weaves propagate longitudinally, and rapidly rupture in the positive pressure region, the formation, growth, and rapid rupture such tiny bubbles are called cavitation effect, the instantaneous high pressure of more than 10000 atmosphere is generated after the bubble bursts, and the instantaneous high pressure continuously generated is like a series of small explosions, continuous bombarding the surface of the object, so that the surface of the object quickly falls off

05: The parameters affecting the efficiencyof vibrators pack

The detergent to facilitate the cleaning

The ultrasonic cleaning transducer frequency

Bath temperature: typically between 40 and 60 degree

The power and the distribution of the ultrasonic field, according to the parts

The ultrasonic cleaning duration varies between a few seconds and a few hours

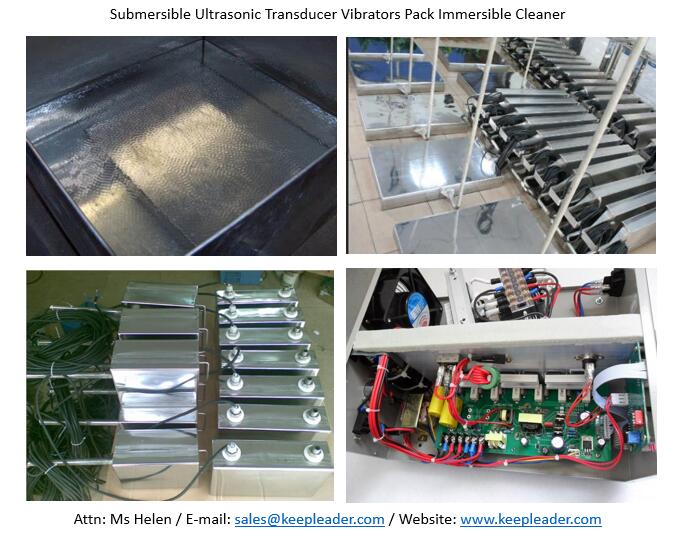

Detailed Images

Submersible Ultrasonic Transducer Vibrators Pack Immersible Cleaner is an excellent consideration to apply your expected cleaning performance, with tech proposals from keepleader, you necessitate involving parameters in ultrasonic frequency, time, chemistry concentration,load size, contamination level, power density, detergent or solvent type, part geometry, basket/rack configuration, contamination geometry, cavitation uniformity, bath temperature, part material, contamination type and filtercirculation

Tech Guidance

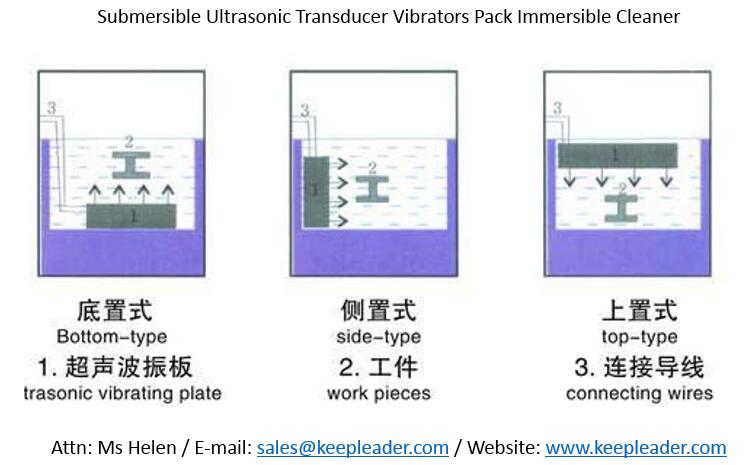

Submersible Ultrasonic Transducer Vibrators Pack Immersible Cleaner can has your desired structural arrangement, the ultrasonic vibration box can be arranged in the pool, and the water tank, and can be emitted upward from the bottom, the top is emitted downward, and the left and right are emitted, please tell us your preferred mode to build positioning system
