Hot Stamp Wire Imprinting Cable Marking ID Printer

Hot Stamp Wire Imprinting Cable Marking ID Printer is a permanent, dry-printing method for cable and wire identification, custom identifications are printed onto the wire with heated die and pigment foil, imprinting time, pressure,speed, temperature, dwell time all are adjustable

Machine Description

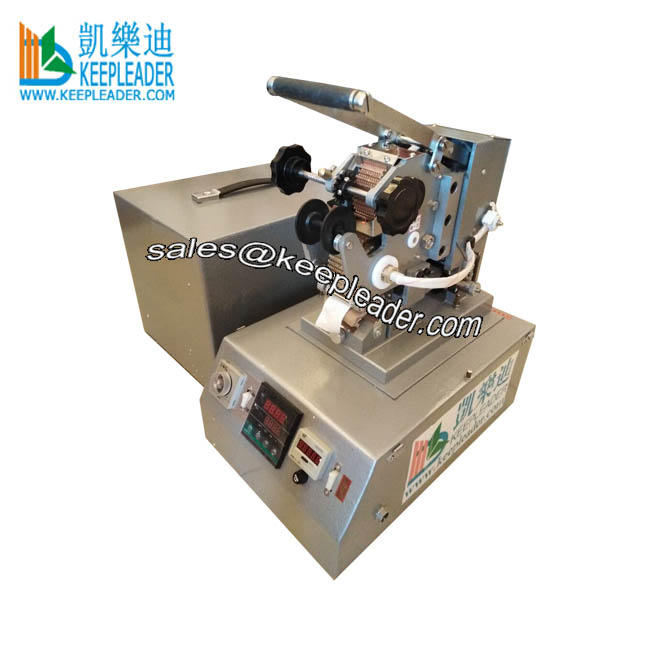

Hot Stamp Wire Imprinting Cable Marking ID Printer

01: Application

Hot stamping is used wherever materials are to be labeled with the same characters in high quality in this process,pre-heated embossed characters on a precision printing plate are pressed onto the surface of the material by colored stamping foil, the shape of embossed characters, coordinated with the material to be marked optimally supports the marking process, Hot Stamp Wire Imprinting Cable Marking ID Printer is ideal for material such as cable, wires, strands, shrink tubes, tubing, flat concaved materials and other thermoplastic materials, the device allow the exact setting of the parameters embossing temperature, embossing time, and contact pressure,and dwell time, this ensure the highest quality, and reproducible markings, Hot Stamp Wire Imprinting Cable Marking ID Printer is usually integrated into aprocess line, the marking process is therefore carried out parallel to the machine process with no loss of cycle time

Hot Stamp Wire Imprinting Cable Marking ID Printer

02: Parameter

03: Character

Operates remotely or with foot pedal

Utilizes full-size 40 characters typewheels

Prints horizontal or vertically along wire cable

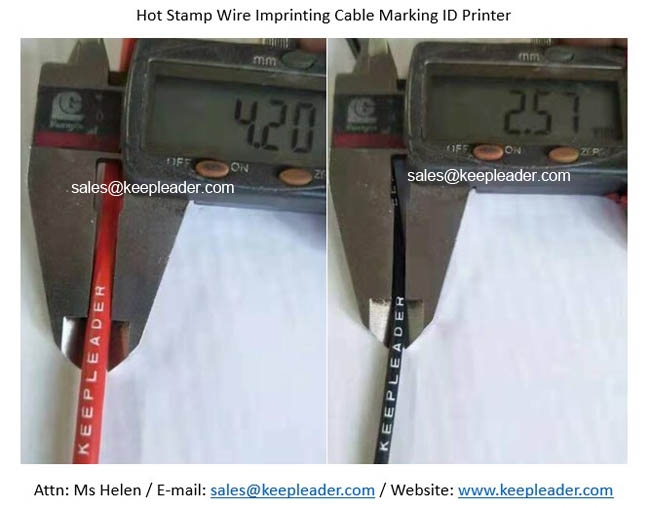

Prints size of wire, cable: 1.5~20mm in diameter

The fastest intermittent hot stamp wire,cable in imprinting

Most important changeover operations possible without tools

Stamping time, pressure, dwell time and temperature are all adjustable

Shortest changeover times and quick heating-up for continuous imprinting

Precision CNC machined concaved or flat facet of type wheels made of copper

Quick-change fixture system minimizes set-up time and maximizes printing speed

Prints on command from virtually any wire processor, cutter, stripper or terminator

Rugged and compacted structure to guarantee the working time and save the space

Optional production table with wheel allows convenient and precision shifting of the printer

Precision controlled of melting depth to avoidthe penetration in adhering foil onto the wire

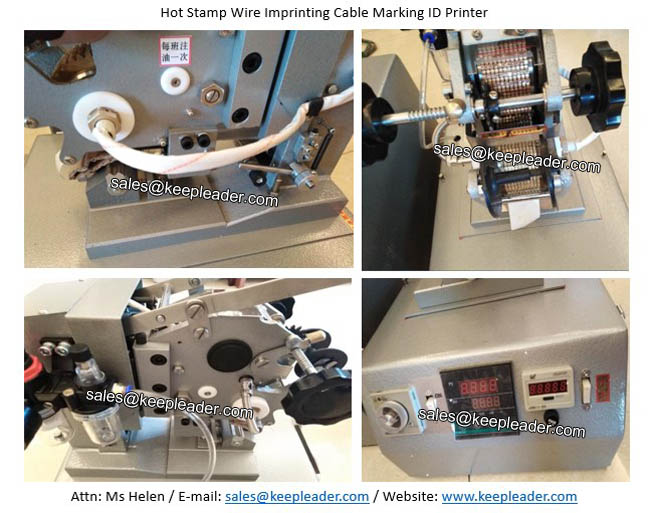

Detailed Images

Hot Stamp Wire Imprinting Cable Marking ID Printer is reliable and affordable imprinting solution of hot stamping: process of embedding on alpha/numeric characters with colored foil through a hot die basing on pneumatic driven inproper stamping time, temperature, speed and pressure in wire, cable insulation identification coding process

Machine Uses

Hot Stamp Wire Imprinting Cable Marking ID Printer can accommodate wire sizes from 1.5mm~20mm in diameter, horizontal orvertically imprinting onto the concaved or flat facet of wire, cable, tube, shrinkable sleeve, the demanded quantities of type wheels of each have character: 40pcs inletters A~Z, number: 0~9 and other punctuation, the bench-top rugged structure features foot pedal activation and intermittent motion
