PP Hollow Sheet Bonding Corrugated Turnover Box Welding Portable Ultrasonic Spot Welder

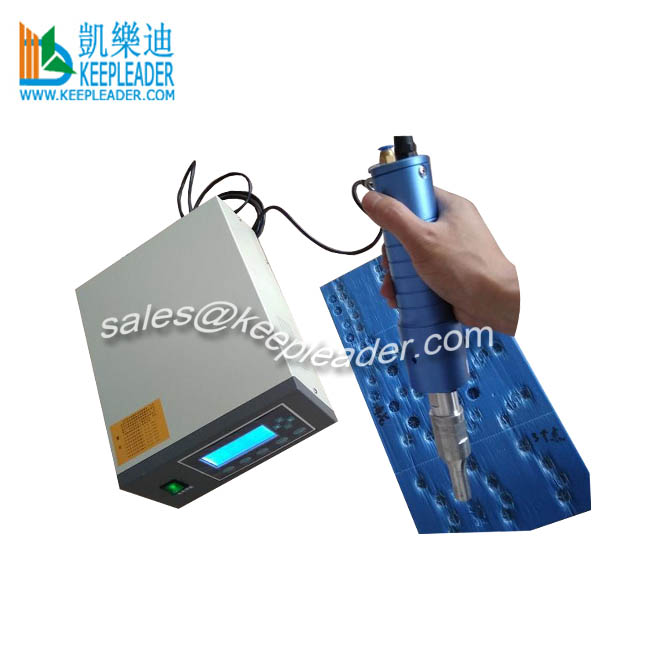

PP Hollow Sheet Bonding Corrugated Turnover Box Welding Portable Ultrasonic Spot Welder is 500w, 28khz ultrasonic spot welder in PP corrugated box making

Machine Description

01: Application

PP Hollow Sheet Bonding Corrugated Turnover Box Welding Portable Ultrasonic Spot Welder is handheld ultrasonic spot welder used for PP hollow board bonding in corrugated box making, this spot welder can go with your to anywhere in convenient production, especially for small quantities production, or auxiliary tool in corrugated box building, ultrasonic generator can convert electric 50hz to high frequency current at power circle 28khz,which will connected to ultrasonic vibration stack combined in piezoelectric ceramic transducer, booster, and ultrasonic horn, the vibration from transducer is amplified by booster, and transmitted to ultrasonic horn/sonotrode resulting in mechanical vibration in amplitude 5~50um, which can cause intermolecular friction on the jointing point of hollow board, after cessation of vibration under hand press applied, the melting point is solidified, the bonding process is completed, because the melting point is reached by intrinsic intermolecular friction, which won’t produce any damage around the material, and its bonding force is stronger than the material itself

02: Parameter

03: Character

Auto Tuned, Time mode and Power mode.

Ultrasonic horn made of alloy or titanium

Computerized setting, read of ultrasonic generator

One key start, simple operation and easy operate

One key start, simple operation and easy process

Welding amplitude adjustable from 60% to 100% by 1% step

Pistol or straight welding handle both are available in selection

Integrated Power circuit with auto tuningin upmost performance

Customized welding size, pattern and shape to achieve the best bonding effect

Power outburst mode, save energy comparing to the traditional ultrasonic welder

Effectively balance that amplitude while frequency is locked based on the frequency of amplitude

Effectively balance the amplitude while frequency is locked based on the frequency and amplitude

Detailed Images

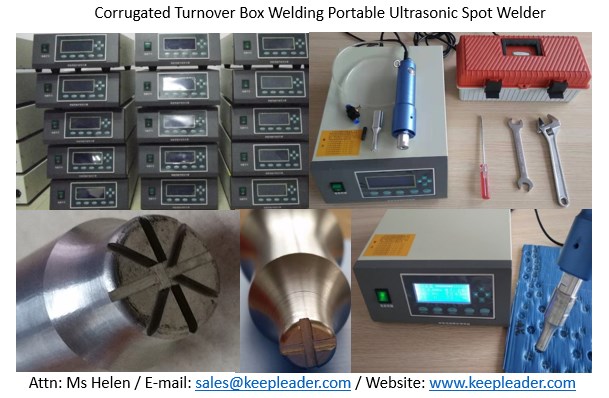

PP Hollow Sheet Bonding Corrugated Turnover Box Welding Portable Ultrasonic Spot Welder has #1: intelligent generator #2: straight handle #3: customized welding head in size, shape and pattern

Machine Uses

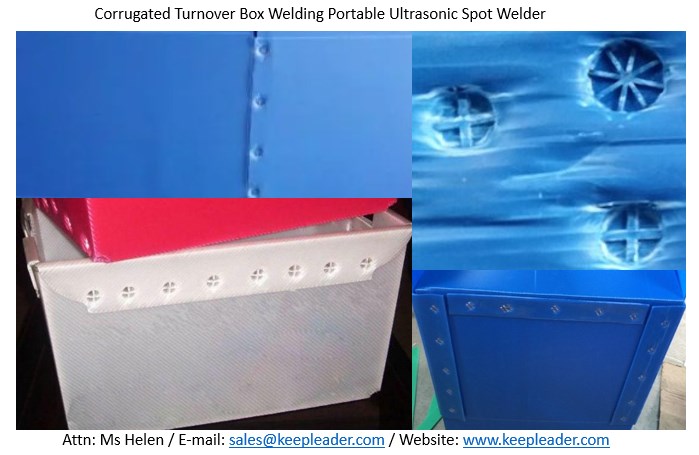

PP Hollow Sheet Bonding Corrugated Turnover Box Welding Portable Ultrasonic Spot Welder is capable for spot bonding of hollow board in corrugated box making

Contact Us

PP Hollow Sheet Bonding Corrugated Turnover Box Welding Portable Ultrasonic Spot Welder has customized ultrasonic sonotrode in compliance with your demanded shape, size, pattern, and melting depth, please contact keepleader's tech experts to find what more we can do for your application
