Pneumatic Hot Foil Stamping Plastic Turnover Crate Thermal Embossing Machine of Container_Box_Basket Embossed Logo Heat Pressing

Pneumatic Hot Foil Stamping Plastic Turnover Crate Thermal Embossing Machine

Pneumatic Hot Foil Stamping Plastic Turnover Crate Thermal Embossing Machine has compact structure and robust construction to exert hot foil stamping in imprinting on the surface box,crate,basket and other container

Machine Description

---

Pneumatic Hot Foil Stamping Plastic Turnover Crate Thermal Embossing Machine

01: Application

Pneumatic Hot Foil Stamping Plastic Turnover Crate Thermal Embossing Machine is designed for all hot foil impression printing on the large, middle, small size crates, its sturdy frame can apply maximum pressure reach to 500kgs, and compact structure is convenient movable to anywhere of your working shop for flexible production, adjustable holding height can reach top limit 1300mm, and stamping depth is also select-able within 500mm, pneumatic driven pressing down is equipped with foot pedal in automatic production

02: Parameter

Name	Pneumatic Hot Foil Stamping Plastic Turnover Crate Thermal Embossing Machine
Model	KLS-3200FS
Heating Power	3.2kw
Power Plug in	220v, 50hz or 110v,60hz
Hot stamping speed	15 times per minute
Workable size	Customized
Stamping Depth	Adjustable within 500mm
Stamping Height	Adjustable within 1300mm
Pressure range	0.6~0.8Mpa
Motor Power	25w
Set-up time	5~10 minutes
Heating Plate	200*300
Maximum Pressure	500kgs
Stroke Distance	50mm
Foil Winding	Driven by Electrical
Temperature	0~300 degree
Gross Weight	180kgs
Overall Size	700*600*1800

03: Character

Electric control for easy operation

Working height and depth both are adjustable for different substrate height and depth

Foil stamping pressure, temperature, speed is adjustable

Automatic foil release and collecting with micro adjustment

Thermostat heating temperature stability

Vertical pressure frame design, strong pressure

Melting depth can control in precision

Digital control panel can read and set the working parameter

The horizontal balance is adjustable for equal pressure to apply consistent impression

Quick changeover stamping mold/die for versatile patterns

Multiple heating rod built inside of heating plate to reduce the set-up times

Compact structure and robust construction to last lifetime and save the space

Casters mounted at the basement of frame for convenient free-stand

Detailed Images

---

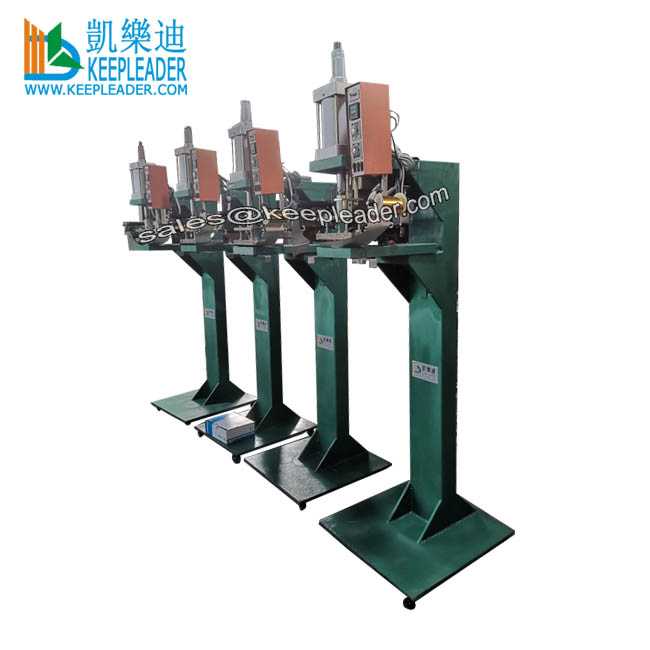

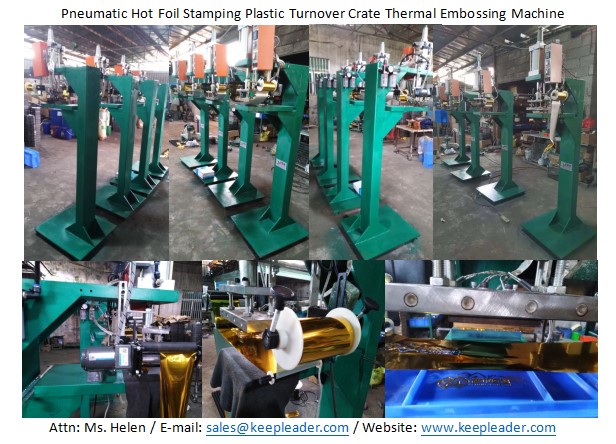

Pneumatic Hot Foil Stamping Plastic Turnover Crate Thermal Embossing Machine is #1:pneumatic driving stamp of maximum pressure up to 500kgs, #2: electric control of pedal valve triggering one circle impression #3: sturdy free-standing frame to avoid back-forwarding during vertical pressing-down, #4: casters built-in basement for convenient movement at any working plate in flexible bulk production #5: compact structure of saving footprint,#6: digital operation panel of readable setting and maintenance #7: quickly access in working performance to provide easiest operation for untrained person, #8: visible circuit connection for least trouble-shooting in resolving any defects, #9: motorized auto foil releasing and collecting device is possible for production of only one person

Machine Uses

---

Pneumatic Hot Foil Stamping Plastic Turnover Crate Thermal Embossing Machine can exert impression in printing any shape, size of container made of plastic, wood within dimension of 1300mm in length or width and 500mm in depth adopting quick changeover stamping die of customized pattern, logo, text, and graphic images at desired size

Contact Us

---

Pneumatic Hot Foil Stamping Plastic Turnover Crate Thermal Embossing Machine exerts customized impression in imprinting identifying codes,text, logo, graphic images,which is advertising your business or considering your traceable production, except for its basic construction, we always built this stamping machine in conjunction with desired characters, thanks our experienced tech team, they never stop listening our customers to enhance our machines’ capabilities, if you cannot find your concerns, please don’t hesitate to consult them with our sales to find what more they can do
