High Frequency Folding Line Plastic Soft Crease Box Making Machine for PET PVC Clear_Square_Gift Packaging Box RF Thermal Press

High Frequency Folding Line Plastic Soft Crease Box Making Machine

High Frequency Folding Line Plastic Soft Crease Box Making Machine

High Frequency Folding Line Plastic Soft Crease Box Making Machine also in called high frequency folding box soft line indentation, advanced design concept,imported electrical pneumatic system, the high frequency caused electromagnetic field changes the molecular sequencing in result of interior molecular friction to reach the melting, under pressure applied to indent a shaped fold-able line, replacing of the concept the folding completely by mechanical pressure, synchronous indentation and cutting, trace with clear lines, neat and smooth trimming, transparent, the good choice for high-grade packaging

Machine Description

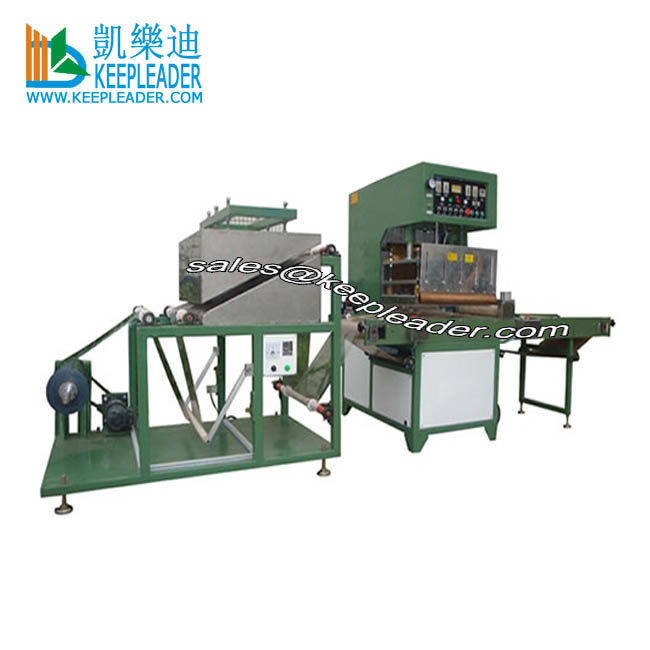

High Frequency Folding Line Plastic Soft Crease Box Making Machine

01: Application

High Frequency Folding Line Plastic Soft Crease Box Making Machine is especially designed for making clear packaging boxes,soft crease box forming, PVC and PET Folding box, transparent fold-able plastic box making, the plastic box can be made of PVC, PET, APET, PETG, GAG and other eco-friendly plastic films, this soft crease box making machine also equipped electric heated flattening device for rigid plastic film, depends on plastic material type: film sheets or plastic roll, you can choose semi-auto mode and an automatic roll feeding mode, the user can quick-interchange molds to satisfy versatile boxes in shape, size, and thickness, because of sophisticated control of melting depth, dielectric press time, dwell time and pressure, the formed fold-able line is clear and edge is trimmed

02: Parameter

Name

High Frequency Folding Line Plastic Soft Crease Box Making Machine

Model

KLR-8KW-CZ

KLR-15KW-CZ

HF Power

8000w

15000w

Voltage

3P AC 380V/220V/440V 50Hz-60HZ or customize

HF Frequency

27.12MHz+/-0.6%



Input Power

15KVA

25KVA

Rectifier

Silicon Diode

Silicon Diode

Oscillation Tube

7T69RB

8T85RB

Max Pressure

1000kgs

1500kgs

Operation Mode

Pneumatic Driven

Pneumatic Driven

Electrode Gap

200mm

200mm

Stroke Distance

150mm

150mm

Upper Electrode

500*700mm

700*800mm

Work Table

500*700mm

700*800mm

Heating Temp

30~200 degree

Productivity

600~800 times/hour

Welding time

0.01~9.99s adjustable

0.01~9.99s adjustable

03: Character

Rapid position device, convenient operation, and interchange molds for versatile boxes

Formed crease line is soft, smooth, easy to fold without broken, burr and scratched

NL-5557 Sparkle restraining device to protect the mold and material in case of over-current

Auto feeding, conveying, flattening rigid plastic in roll to improve efficiency and productivity

Adopt Europe type high frequency coaxial resonators when current overloaded then automatically cut off the pressure to protect the oscillation tube and rectifier

Electronic counting, continuous feeding, controllable speed for different materials

Motor driven material feeding system is electronic controlled with digital display

Imported abrasion proof transformation to avoid damaging the mould

Compacted structure and robust construction

Machine Uses

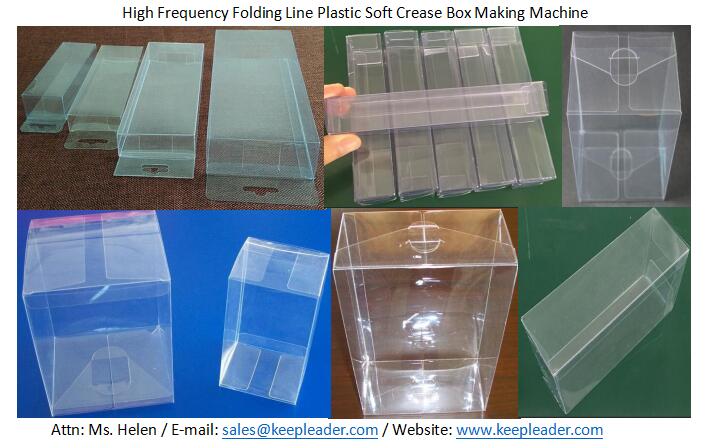

High Frequency Folding Line Plastic Soft Crease Box Making Machine

High Frequency Folding Line Plastic Soft Crease Box Making Machine is adopted high frequency dielectric press to indent folding line for crease soft plastic box machine for mass production of present packaging industry, such as: stationery, plastic box packaging, cosmetic packaging, gift packaging, plastic fishing tackle packaging, hardware tools packaging, confectionery packaging

Contact Us


High Frequency Folding Line Plastic Soft Crease Box Making Machine can equip with electric heated roll flattening device, or electric heated oil filled roll flattening device, or electric heated go-through flat flattening device, its dielectric pressing mould support quick interchange for versatile soft crease box in size, shape and material thickness, we also accept exceptional demands to modify basing on this standard model, please tell us your concerns for tech verification, believe that our technical team can work out a reliable and affordable solution for your business

 Attn: MS Helen
 E-mail:sales@keepleader.com
 Cellphone: +86 13590415784 (Wechat/Whatsapp)
 Tel: +86 755 84190358
 Website: www.hfwelds.com / www.keepleader.com
