Cable ID Imprinting Wire Codes Marking Hot Stamping Marker

Cable ID Imprinting Wire Codes Marking Hot Stamping Marker is electron-pneumatic activated pressure of hot foil stamping process in wire/cable coding/marking on insulation surface with rotary character wheels, which also varies lever pressed and only motorized depending on the actually sites of production, characters’ arrangement,quantities of characters in each wheel and size of each characters are compatible with specified demands

Machine Description

Cable ID Imprinting Wire Codes Marking Hot Stamping Marker

01: Application

Cable ID Imprinting Wire Codes Marking Hot Stamping Marker is an electro-pneumatic hot stamping unit used to print on wire,cable, and hoses, the hot stamping process produces abrasion-resistant markings in high quality, in this process a electric heated type-wheels packet presses pigment foil onto the insulation surface of wire/cable to be printed location, all printing parameters such as contact pressure, printing time, and temperature can be selected by the user, in addition, the Cable ID Imprinting Wire Codes Marking Hot Stamping Marker is furnished with pedal valve and signal interface of wire cutting and stripping equipment, this allows the convenient control and auto processing in whole production line

02: Parameter:

03:Salient Features

Operates remotely or with foot pedal

Utilizes full-size 40 characters type-wheels

Prints horizontal or vertically along wire cable

Prints size of wire, cable: 1.5~20mm in diameter

The fastest intermittent hot stamp wire,cable in imprinting

Most important changeover operations possible without tools

Stamping time, pressure, dwell time and temperature are all adjustable

Shortest changeover times and quick heating-up for continuous imprinting

Precision CNC machined concave or flat facet of type wheels made of copper

Quick-change fixture system minimizes set-up time and maximizes printing speed

Prints on command from virtually any wire processor, cutter, stripper or terminator

Rugged and compacted structure to guarantee the working time and save the space

Optional production table with wheel allows convenient and precision shifting of the printer

Precision controlled of melting depth to avoid the penetration in adhering foil onto the wire

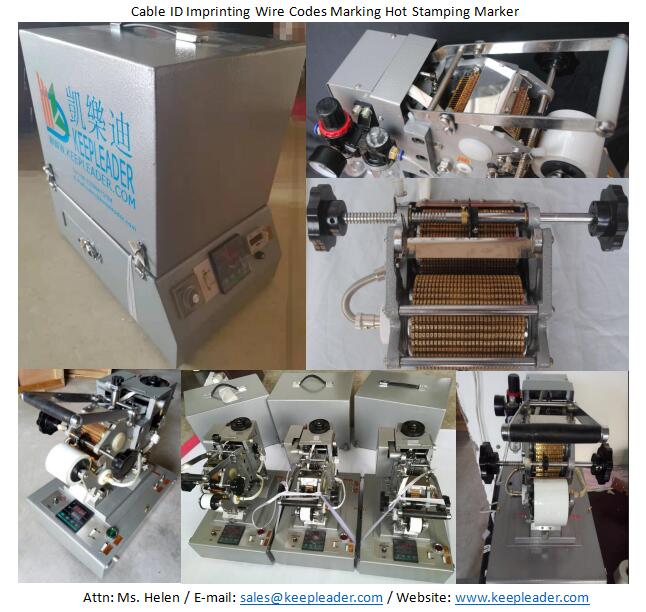

Detailed Images

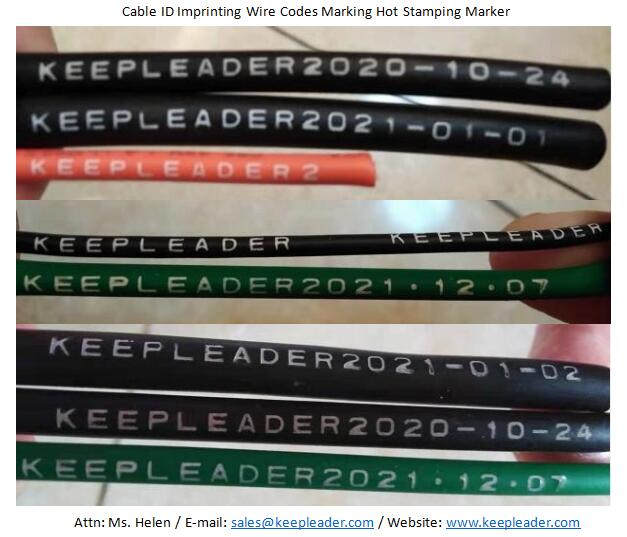

Cable ID Imprinting Wire Codes Marking Hot Stamping Marker exerts color imprinting with customized type-wheels, electric heated rotary character wheel press pigment foil onto the insulation of wire and cable to release ink, penetrate indenting adhesion resulting in wear-resistance impregnable imprinting, we take utmost care in fabrication process so that our wire markers give desired level of satisfaction to our customers, incidence of complaint in our Cable ID Imprinting Wire Codes Marking Hot Stamping Marker should be of very rare occurrence

Machine Uses

Cable ID Imprinting Wire Codes Marking Hot Stamping Marker takes quickly cold imprinting into the around insulation of wire,cable, random combination of signs in alphanumeric characters, punctuation and specified logo and graphic images in represents, because of indenting printing adhesive pigment foils to release the ink, marking effect comes performance of harsh environment, likely gas, chemical, oil, in addition, wire/cable hot stamping marks also avoid risk of color fades, and endure wearing and wiping still keep shining color

Contact Us

Contact us regarding our Cable ID Imprinting Wire Codes Marking Hot Stamping Marker, we have the capabilities to fully customize any of our wire marker for your project needs, keepleader is an well-known for reliability and superior work quality. Our customers know us by name and return to us again and again because we’re able to provide service with a distinctive practical knowledge
