Metal Parts Washing Industrial Ultrasonic Cleaning Machine for Engine Components_Cylinder_Carburetors Ultrasound Degreasing Tank

Metal Parts Washing Industrial Ultrasonic Cleaning Machine

Metal Parts Washing Industrial Ultrasonic Cleaning Machine takes basic tech principles, the built-in ultrasonic generating transducers produce ultrasonic waves in the liquid by changing size in concert with an electrical signal oscillating at ultrasonic frequency, this creates compression waves in the liquid of the tank in bubbles procedures of forming, expanding and last imploding to produce frictional scrubbing force, which tear the liquid apart, leaving behind many millions of microscopic voids or partial vacuum bubbles, also called cavitation, these bubbles collapse with enormous energy, however, they are so small that they do not more than clean and remove surface dirt, and contaminants adhering to parts like metals, plastics,glass,rubber and ceramics, this action also penetrates blind holes, cracks and recesses, the higher the frequency, the smaller the nodes between the cavitation points, which allows for cleaning of more intricate detail, the intention is to thoroughly remove all traces of contamination tightly adhering or embedded onto slid surface, water or solvent can be sued, depending on the type of contamination and cleaning object

Product description

01: Parameter

02: Introduction

Metal Parts Washing Industrial Ultrasonic Cleaning Machine is a technology that uses high frequency sound waves (ultrasonic: above the range of human hearing) to agitate an aqueous or organic medium (cleaning chemistry) that in turn acts on contaminations adhering to substrates like metals, plastics, glass, rubber and ceramics. Contaminants can be dust, dirty, oil, pigments, grease, polishing compounds, flux agents, fingerprints, soot wax and mold release agents, biological soil like blood, and so on

03: Application

Metal Parts Washing Industrial Ultrasonic Cleaning Machine can be used for many applications, including plastic parts, bearing, bolts, rubber parts, internal parts, plastic injection molds, transmission parts, and final cleaning of all engine parts prior to assembly, the versatility of ultrasonic cleaning machine make them the perfect choice for automotive, medical, pharmaceutical, aerospace, engineering and many other industries

04: Characters

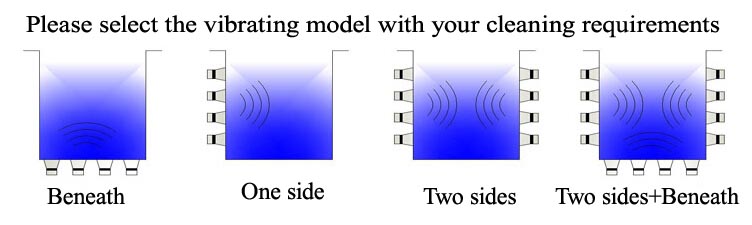

Opposing horizontal transducers mounted at two sides

Digital control wave ultrasonic generators

Movable cleaning basket

Can combined with lifting system, drying tank, rinsing tank, recirculation & filtering system

Incredible versatility in dimension, function and auxiliary couples

05: why clean parts with ultrasonic?

Delivering and using clean parts is not always obvious, certainly, no one wants to handle a dirty parts or install it into a critical machine, but, dirty, debris and contaminants can cause problems for manufactures and end users, from the merely frustrating to catastrophic, dirty parts can cause critical components to exceed tolerances and even fail damaging valuable equipment and property while contamination (everything from grease, oil and chemicals to viruses and bacteria) can seriously harm users.

06: How to choose cleaning chemistry

Depending on the type of cleaning requirement and the substrate that needs cleaning a detergent solution or a similar aqueous medium can dramatically increase the cavitations, lowering the surface tension of the liquid reduces the energy required to form the bubbles and when combined with inherent cleaning property of the solution results in superior micro cleaning of the solid surface

The choose of the cleaning medium is critical, the nature of the substrate and contamination are the key factors in selecting the cleaning chemistry, which is typically aqueous or semi-aqueous

07: Buying guidance

Please provide KEEPLEADER below information to get recommendation

What type of object do you want to clean (Metal, plastic, machine parts, etc)?

What type of contamination do you want to remove from the object?

How large is the object and how many do you need to clean?

What is your time frame?

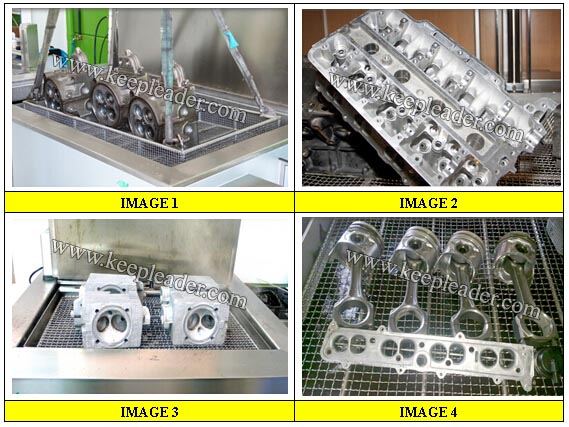

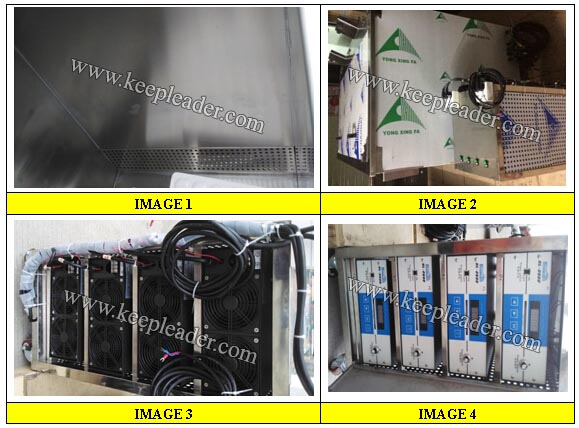

Detailed images

Metal Parts Washing Industrial Ultrasonic Cleaning Machine features universal functionality of aqueous cleaning, classifies free-standing type of basic ultrasonic cleaning device that use ultrasound, usually 28khz and appropriate cleaning solution to clean metal hardware, ultrasonic agitation integrates a soaping tank. The heating elements are built in the process to enhance the cleaning effect, this large volume ultrasonic cleaning machine can be used for wide variety of applications, including plastic parts, bearings, bolts, rubber parts, internal parts, plastic injection molds, transmission parts and final cleaning all engine parts prior to assembly, the process can efficiently remove contaminants that include dust, dirt, oil, pigments, rust, grease, algae, fungus,bacteria, lime scale, polishing compounds, flux agents,fingerprints, soot wax and mold release agents and biological soil, versatile models with bespoke function and tailored size depends on practical cases, likely automotive, medical, pharmaceutical, aerospace, and engineering industries, as well as many other industries

Product Uses

Metal Parts Washing Industrial Ultrasonic Cleaning Machine uses of high-frequency sound waves to remove a variety of contaminants adhering to parts like metals, plastics, glass, rubber and ceramics, contaminants can include dust, dirty, oil, rust, grease,bake-on carbon, lime scale, polishing compounds, and mold release agents, and so on, Metal Parts Washing Industrial Ultrasonic Cleaning Machine applies in the automotive, printing, marine, medical instruments, pharmaceutical, electroplating, dick drive components, engineering and chemical fiber industries

Buying guides

Top 5 things to consider before choosing an ultrasonic cleaning machine

01; Size of parts/objects being cleaned

Always consider the largest item or part that will be cleaned regularly in the machine, full measurements of the largest item should be taken and given the manufacturer so that proper tank can be specified for the application

02: Ultrasonic cleaning goals

Post cleaning results are of primary concern for people in manufacturing, rebuilding, restoration or the medical field, ultrasonic is the most thorough process of cleaning known to science, consequently this methodology is utilized for countless application around the world today, this time to clean parts is greatly reduced when ultrasonic cleaners are used versus hand cleaning methods, as a result, production is dramatically increased while the cost of cleaning goes down

03: Utilizing the correct basket/racks

This items being cleaned must not touch the ultrasonic transducers located inside the tank, parts baskets should be utilized and selected specifically for the cleaning application, any parts or baskets making contact with the ultrasonic transducers packs will eventually cause the surface of the pack to etch or scratch, even though the packs are constructed of stainless steel, once etching occurs erosion will follow and will over time destroy the integrity of transducer pack, this damage cannot be repaired and transducer pack will eventually need replacement

Ultrasonic cleaners create heat energy as they run, the heat will rise during the cleaning process due to the friction of cavitations activity being created within the cleaning vessel, the rise in temperature cannot be avoid, heaters are required to bring the cleaning solution to the designed starting temperature, they are also a necessity when cleaning contaminants such as carbon oil and grease residue, high temperature help break down these contaminants to better facilitate the cleaning process

04: Generator adjustability and wave sweep

Wave sweep is utilized and recommended in virtually all cleaning situation, by dispersing various frequencies with different wave lengths, wave sweep effectively eliminates in active and deep zones in the cleaning tank, this results in more uniform and effective cleaning of all parts especially those of intricate detail, ultrasonic cleaners equipped with wave sweep do not require degassing modes as engaging the wave sweep accomplishes accelerated degassing of solutions

Ultrasonic frequency and power

Most ultrasonic cleaners operate between 28 and 120khzm, the lower frequencies produce large cavitations bubbles with more abrasive cleaning, these frequencies are recommended for coarse cleaning needs such as removal of lapping compounds from durable metal surfaces, for fine cleaning of very delicate items such as jewelry and soft metals with polished surfaces, higher frequencies may be more suitable, the most commonly utilized frequencies are 38 to 40khz because they are ideally suited for the vast majority of both commercial and industrial cleaning application, the power generated by an ultrasonic cleaner should be capable of dealing with the client’s most difficult cleaning applications, controls on the ultrasonic generator allow the operator to dial down the power whenever more delicate cleaning applications are addressed, because power can be dialed down there is no need to buy cleaner with minimal power capability, even cleaning delicate items may require more energy when multiple parts are cleaned at one time

For more that two decades, ultrasonic international has helped business improve profitability by providing their clients with ultrasonic cleaning equipment that feature the latest advancements in wave sweep technology, KEEPLEADER ultrasonic cleaning machine has a reputation for reliability and longevity utilizing the proper ultrasonic cleaning machine saves money and improves cleaning processes, cleaning results will be measurably better and less time and labor hours to complete the cleaning process, production mummers go up addressed simultaneously

Metal Parts Washing Industrial Ultrasonic Cleaning Machine is usually arranged sea transportation, the machine is installed and packed into one plywood case, the user only open the case, and connect the power wire for ready working

Contact Us

Metal Parts Washing Industrial Ultrasonic Cleaning Machine applies for large or medium volume cleaning process, its function and dimension are acceptable in specification, thanks keepleader’s technical team, with many years of detailed-orientation constructions, we stand out from competitive market with out prominent achievement and affordable price, we continue to intended for international supplying-chain in a role of responsibility, in addition, we also devote ourselves to a reliable collaborator with endless efforts, skillful craft and cutting-edge concept, turn your eyes to here to find what more we can do for you
