Cable ID Printer Wire Marking Hot Stamp Foil Printing Machine

Cable ID Printer Wire Marking Hot Stamp Foil Printing Machine is bench top hot stamp marker of pneumatic driven, asked for quantities of rotary character wheels engraved specified alphanumeric characters and punctuation of 40pcs can freely rotate to preset wanted codes,preheated characters in wheel precisely press insulation surface of wire in cable assembling with pigment foil in roll sandwiched between them,the released ink adheres into the indented position to achieve the imprinting identification with metallic and clear performance,because of con-caved characters couple with V-shaped block in applying pressure and temperature, permanence is gratified with consistent and uniform marking,furthermore, advantages include user-friendly handing, flexibility, cost-effectiveness,easy legibility, lasting and oil-resistant labeling, non-dislodge-able, non-protruding and wear-resistant marking effect

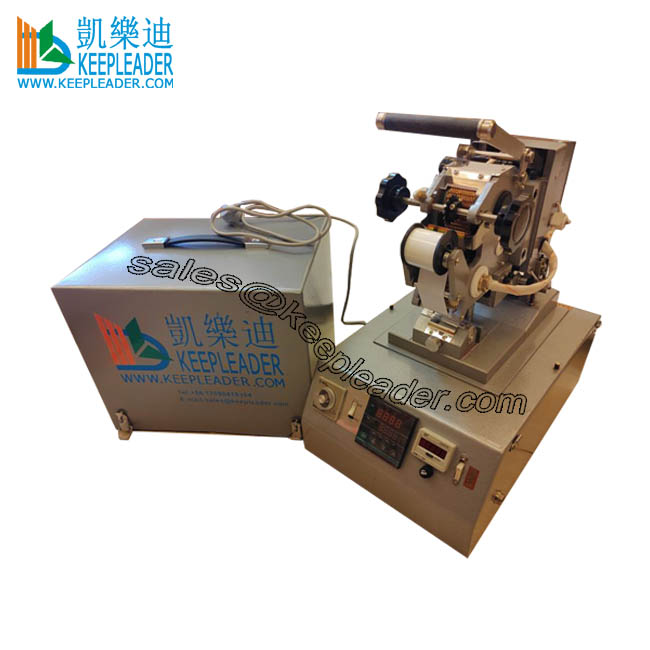

Machine Description

Cable ID Printer Wire Marking Hot Stamp Foil Printing Machine

01:Application

Cable ID Printer Wire Marking Hot Stamp Foil Printing Machine is designed for the economical and high quality marking of wires,cables, tubes, the combination of characters:letters:A~Z,numbers:0~9,punctuation:-/. and blank and character size can be selected freely within the specific range:1.2~3mm,Cable ID Printer Wire Marking Hot Stamp Foil Printing Machine is suitable for marking thermoplastic materials, during the process the preheated character wheels imprint the precision-engraved characters by pressing the pigmented marking foil into the insulation surface of wire/cable/protective sleeve, the concave form of the character is exactly matched to the diameter of the proceed material, the precise adjusting options for the stamping pressure, temperature, time exert prominent effect ,our Wire Marking Hot Stamp Foil Printing Machine are available in three configurations, manual lever, electric driven and pneumatic driven, to meet both your application requirements as well as your budget, electric and pneumatic driven models can be easily interface with wire processing machines, and their small footprint makes them an easily integrate into existing production line, combined with cutting machine, auto wire meter feeding system, stripping device and other more process

02:Parameter

03: Salient advantages

Foil cartridge allow quick foil changeover

Closed loop integral temperature controller

Large selection of character sizes and foils

Wide carriage for end marking applications

Copper character wheels have good thermal conductivity

Chrome-coated treatment of concave characters for wear-resistance

Digital timer, counter, temperature controller for visible setting operation

Built-in convenient access into the lubrication to impel the smoothly rotation

Compact structure, robust construction for good longevity and space saving

Freely adjust character wheels to combine specified identification codes

Stroke adjustment to ensure maximum production rate based on wire size

Standard V-shaped anvil wire guide allows marking on wire/cable in versatile sizes

Tabletop, simple operation, and easily to move in gratifying differ working environments

Concaved contacting surface of characters to comply with the round shaped insulation of wire and cable

Build-in melting stop to precise indenting depth to achieve abrasive resistance,but no damage of insulation performed after imprinting

Machine Uses

Cable ID Printer Wire Marking Hot Stamp Foil Printing Machine is designed for the economical and high quality marking of wire in cable assembles, the combination of characters and font size can be selected freely within the specific range,Cable ID Printer Wire Marking Hot Stamp Foil Printing Machine is suitable for any insulation and protective material of wires and cables, during the process the preheated character wheels imprint the precision-engraved codes by indenting the pigment foil into the rubber surface of wires, the concave form of characters is exactly matched to the diameter of the wires/cables,the precision adjusting options for the stamping pressure, time and the marking temperature allow to recall every result

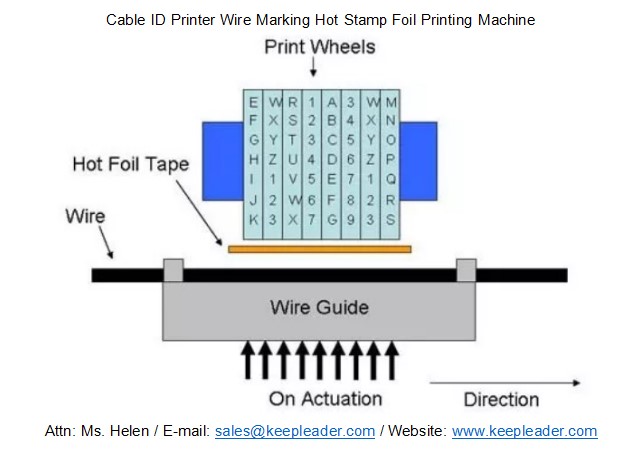

Functional Illustration

Cable ID Printer Wire Marking Hot Stamp Foil Printing Machine has simplicity and flexibility in operation, a set of heated character wheels can be easily rotated to create the code even when the wheels are hot,the wire is put through a wire guide and can be pulled through by operator or machinery, at the right print location, activation of a pneumatic cylinder will push the wire to come in contact with the pigment foil tape and heat press wheels, due to heat, pressure and dwell time, the message on the character wheel will be transferred onto the wire through the pigment foil,depending on the pressure, an indent is usually formed on the cable as well, giving a permanent colored print on the cable,because it is easy to change the code, this method is used for wire harness manufacturers or repair shops for quick stamping and quick code

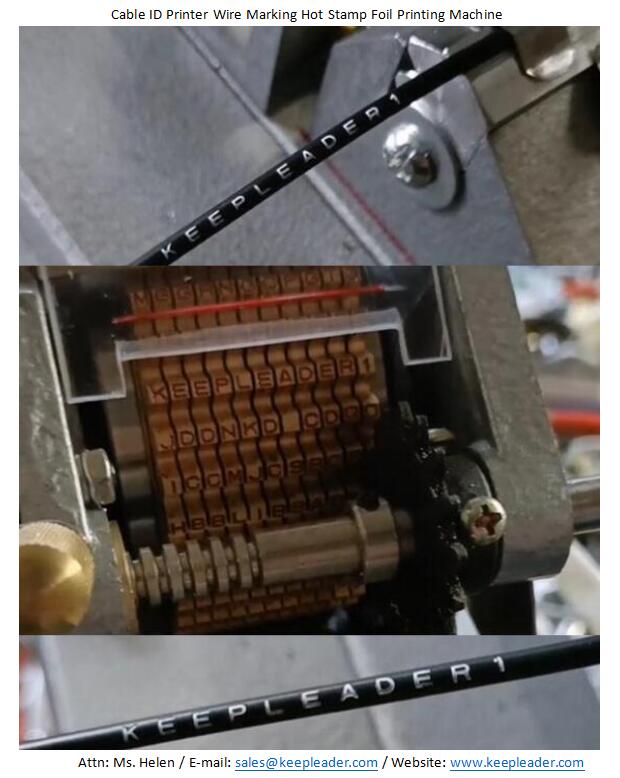

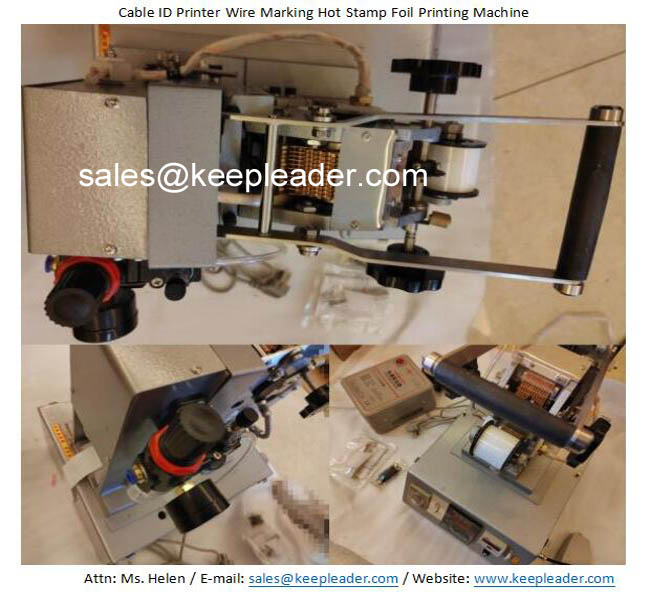

Detailed Images

Cable ID Printer Wire Marking Hot Stamp Foil Printing Machine stands out of its competitors in hot stamping wire markers because of performing advantages

High quality:Cable ID Printer Wire Marking Hot Stamp Foil Printing Machine produces durable,clear,identification markings on wires for cable assemblies,our print character wheels are laser engraved with concave face ensuring that complete letters are printed clearly onto even the smallest wire diameter, dwell time, temperature, and pressure for the stamp can be modified to ensure high quality marking on wire jackets with a variety of different material characteristics

High productivity: your operators will be able to permanently mark wiring many times faster using our wheel die system compared to interchangeable dies that are difficult and time consuming to install and easily misplaced, increasing productivity means lower costs for your product and faster delivery times for your customers, low costs and high profits can pay for the investment

Turnkey solution:keepleader is providing you with a complete solution, it is designed to be a turnkey product with all the necessary parts for ready working including pigment foils in roll with specified width, v-shaped block to guide the wire of versatile diameters, and lubricating grease if in need

Flexibility: our Cable ID Printer Wire Marking Hot Stamp Foil Printing Machine has been designed with maximum flexibility in mind, identification codes and wire anvils can be changed in seconds, minimizing downtime and save your labor costs, you can also very easily add a graphic, logo, or other nonstandard characters to a wheel, and add it to your wheel die system very easily, this extra flexibility will differentiate you from your competitor, and bringing more jobs to your shop

Contact Us

Cable ID Printer Wire Marking Hot Stamp Foil Printing Machine takes assured reliability around the world among the manufacturer of wire marking in cable assembling process,imprinted wires attain favor and compulsory arrangement in sorting and identifying for aerospace, aviation, electronic,military and medical assembling production, Intending to gratify versatile scenario in production,Cable ID Printer Wire Marking Hot Stamp Foil Printing Machine adopts modular combination, our engineers take great efforts to design a compact construction, only build in the unavoidable sects in individual specification,which is considered for simplicity,space-saving and cost-effectiveness,believe that the users spend less,but achieve a reliable,consistent,uniformed, and traceable imprinting,herein if still cannot find your concerns, please don’t hesitate to consult them with our sales representatives
