SMT Stencil Cleaner Ultrasonic PCB Cleaning Machine of PCBA_Printed Circuit Board_Serigraphy_Spinneret Aqueous Ultrasound Tank

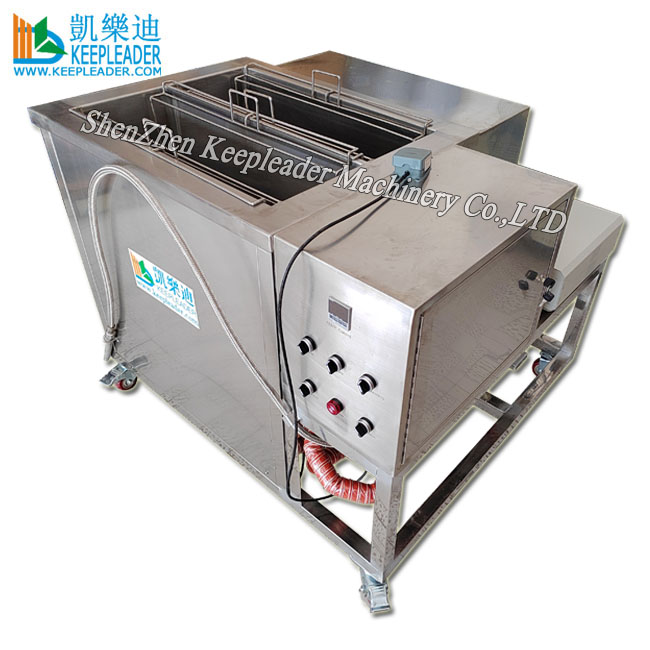

SMT Stencil Cleaner Ultrasonic PCB Cleaning Machine

SMT Stencil Cleaner Ultrasonic PCB Cleaning Machine enable to clean any type of solder paste, red adhesive glue from any fine pitch stencil, at the same time, its low power density and high ultrasonic frequency are safe for cleaning misprinted PCBs and pallets, its low temperature cleaning conserves energy and protects stencils from heat distortion and adhesive failure.

Machine Description

SMT Stencil Cleaner Ultrasonic PCB Cleaning Machine

01: Application

SMT Stencil Cleaner Ultrasonic PCB Cleaning Machine is our dual ultrasonic tanks washer with high pressure spraying wand, and hot air blowing drier, that employs sound wave to effectively remove raw solder paste and uncured adhesives from stencils, screens, and misprints, its ultrasonic frequency adopts 40khz with sweep-frequency techs to increase the uniform performance in power intensity and consistence, that also provides a safe and effective cleaning environment for both stencils and populated misprint assemblies

02: Tech Data

03: Highlighting

Accepts both foils or framed stencils

Suitable for all stencil material, including plastic

Low profile for easy loading and unloading process

Improved process yields, particularly on fine pitch applications

No risk of damage to delicate SMT stencils and PCB substrate board

Minimal use of cleaning fluids, low cost and less volatile organic compounds

All made of stainless stell, rugged industrial construction for reliable longevity

Compact structure with casters to save the floor-space and result workplace portability

Turnkey machine, digital control, Safe and single to operation and maintenance

Ultrasonic agitation cleaning, immersion rinsing, high pressure spraying cleaning in one machine

One cycle execution consisting of decontamination, rinsing and high pressure spraying within 6 minutes

Adopts high ultrasonic frequency:40khz, that can generate tiny bubbles with gentle penetration.

Ultrasonic agitation combined with high pressure spraying efficiently remove solder paste, adhesives.

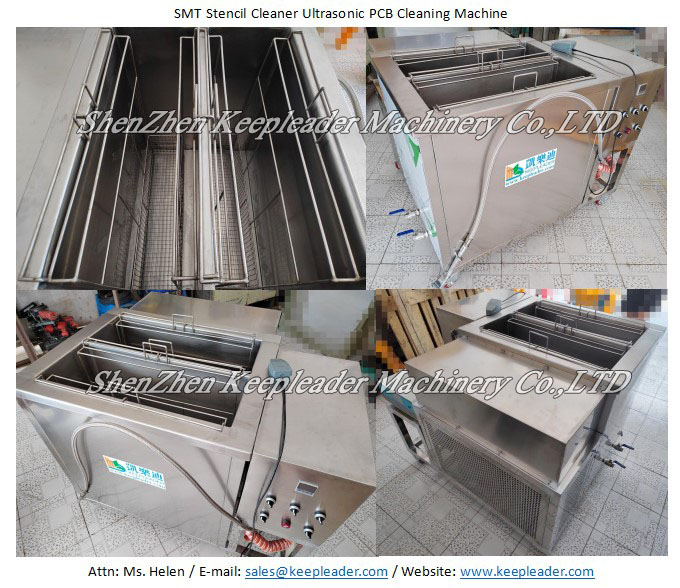

Detailed Images

SMT Stencil Cleaner Ultrasonic PCB Cleaning Machine utilizes precisely controlled ultrasonic waves to travel into the aqueous tank, that enable the detergent fluid contract and expand in generating cavity performance in yielding implosive tiny bubbles, these blasting voids enable to remove UN-reflowed solder paste and uncured adhesives from stencils, screens and misprints, the ultrasonic energy is gentle and will not damage delicate stencils fine pitch apertures, but it is highly effective in the removal of every dried pastes on fine pitch stencils, water low level protective device shouts down the machine if the water level drops below the minimum requirements to avoid damage, keepleader’s SMT Stencil Cleaner Ultrasonic PCB Cleaning Machine has dual ultrasonic tanks, a washing tank, and a rinse tanks, both of them have ultrasonic energy and heat, high pressure spraying wand can play a rough cleaning or ultimate rinsing process in flexibility, after washing, the hot air drying hose complete quick drying precede next procedures, furthermore, SMT Stencil Cleaner Ultrasonic PCB Cleaning Machine accepts bespoke construction in its dimension and configuration, filter circulation reservoir can be integrated to avoid cross contamination and reduce the water consumption, its maximum loading size make to order to gratify end-user’s prominent application

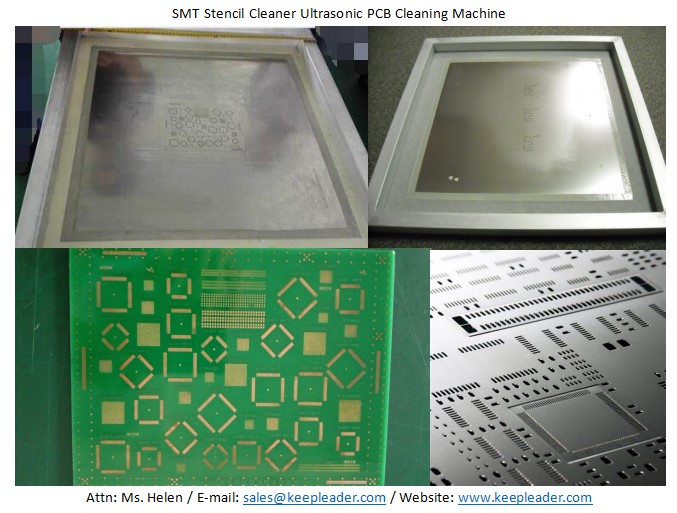

Machine Uses

SMT Stencil Cleaner Ultrasonic PCB Cleaning Machine employs ultrasonic energy with aqueous detergent solution that cleans at low temperature 43 Celsius degree, would be considered to be the ideal process combination for cleaning fine-pitch SMT Screens and stencils, detergents are wetting agents that can be formulated to attach specific contaminants given specific cleaning parameters such as low temperature and type of cleaning agitation, SMT Stencil Cleaner Ultrasonic PCB Cleaning Machine is the best possible cleaning agitation to deliver the cleaning solution, and to scrub the fine and ultra fine-pitch apertures, it causes the least possible trauma to the etched images, the resulting liquid waste can be easily filtered in an existing filtration system

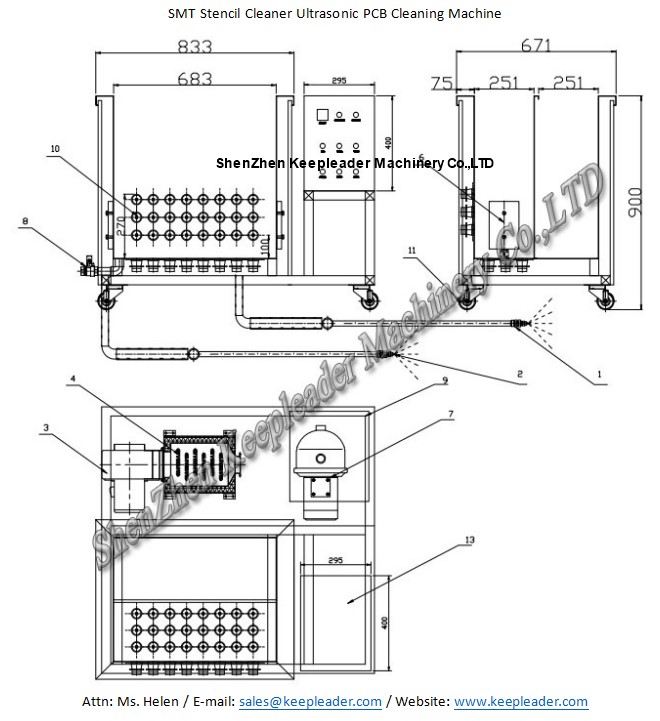

Dimensional Illustration

SMT Stencil Cleaner Ultrasonic PCB Cleaning Machine is able to clean any type of solder paste from any fine pitch stencil at the same time its low power density is safe for cleaning of misprinted PCBs in SMT application, its low temperature cleaning conserves energy and protects stencils from heat distortion and adhesive failure.

Contact Us

KEEPLEADER is a leading provider of SMT Stencil Cleaner Ultrasonic PCB Cleaning Machine for SMT and semiconductor industry, we have been committed to deliver superior performance, high production efficiency, and cost effectiveness to our customers, and the market, unlocking unlimited possibilities for the SMT and semiconductor industry, over the years, we have collaborated closely with both existing and new customers to develop SMT Stencil Cleaner Ultrasonic PCB Cleaning Machine that meets their evolving needs, our dedication to innovation has enable us to stay ahead of the curve and provide cutting-edge solutions that drive progress in the industry, we strive to deliver exceptional service and support that exceeds expectations, we are ready for your initiation, ensure that our experienced team can work out a reliable solution at affordable price for you stencil cleaning process
