Heat Press Transfer Printing Machine for Cosmetic Bottles_Coffee Cups_PVC Tube_Plastic Cans Sublimation Painting Thermal Printer

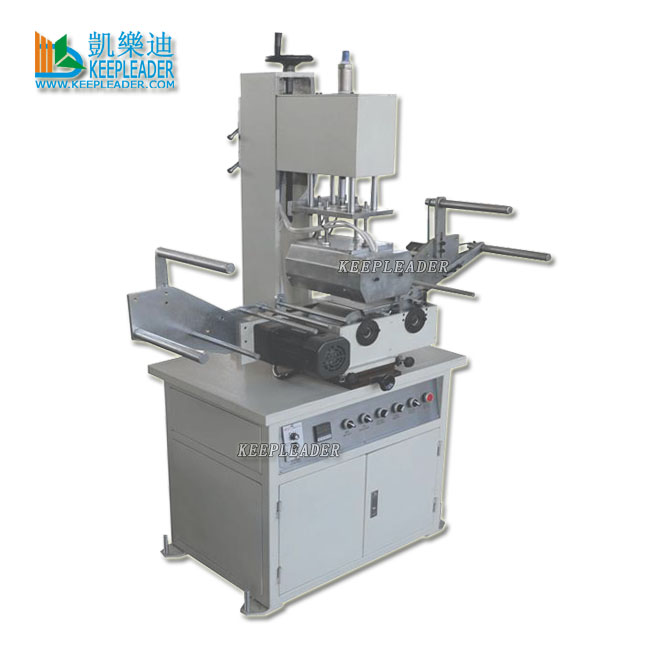

Heat Press Transfer Printing Machine for Cosmetic Bottles

Heat Press Transfer Printing Machine for Cosmetic Bottles

This Heat Press Transfer Printing Machine for Cosmetic Bottles is suitable for small cylinder, and flat shape products printing, microcomputer used to control printing speed, applied pressure and heat distribution, high precision photo-sensor and timer is used to control the feeding speed of heat transfer film, we will recommend suitable Heat Press Transfer Printing Machine according to your product details, printing size, material and shape etc, which is suitable for plastic, wood, metal, glass, ceramic, wood, glass and leather

Machine Description


Heat Press Transfer Printing Machine for Cosmetic Bottles

01: Application

Heat Press Transfer Printing Machine for Cosmetic Bottles is capable for hot transfer printing on the flat, round, even for conical surface made of ceramic, plastic, bamboo, wood, glass, leather, metal and paper, such as ceramic tile, mugs, plastic bottles, round cup, baby bottle, plastic tube, cosmetic bottle, and chemical bottle

02: Parameter

Name

Heat Press Transfer Printing Machine for Cosmetic Bottles

Model

KLS-250MC

Maximum Heat Transfer Size

200*240mm

Max Product Size

Dia.:Φ120mm H:250mm, Flat:400*300mm

Rubber Roller Size

Φ100*200mm

Working Power

4000w

Stroke Distance

75mm

Air Pressure

5~7 Bar

Temperature Range

180~300 Celsius Degree

Printing Speed

900 - 1300 pcs/hr

Air Consumption

≤80 liter/min

Control System

Programmable Logic Control with Touch Screen

Applicable Industries

Printing Shops, and other advertising Company

Plate Type

Flatten, Curved, or round shaped products

Automatic Grade

Semi-Automatic

Color And Page

Multi-color

Electric Connection

220v, 50hz or 110v, 60hz

Key Selling Points

Multifunctional

Driven Type

Pneumatic

Heating Power

3000w

Hot Stamping Diameter

210mm

Heat Transfer Area

20~300mm

Dimension

1300*900*2000mm

Weight

388kgs

03: Salient Character

Clamping pressure, printing temperature and speed are adjustable

Optical sensor, accurate heat transfer film registration

Automatic film feeding and winding

The height of welding head can be adjusted

Strong adhesion and wear resistance after heat transfer printing

Suitable for glass, plastic, metal, wood, bamboo, leather and ceramic

Widely used for household goods, stationary, cosmetic, electric application and toys etc

Programmable logic control with touch screen for convenient setting, operation and monitoring

Photoelectric induction control with high precision feeding, alignment

Driven print heat up/down by cylinder actuator with high speed

Driven worktable left/right by cylinder with pressure stabilizing to make machine stable working

The front/back, left/right of worktable can set easily

Printing pressure, temperature and time can set easily to get good printing quality

Using imported electronic eye induction device to locate feeding, collecting heat transfer film

The heating tube adopts wrap-around heat conduction to keep the temperature of silicon roll heat uniform

Cast iron worktable with groove, easy to install jig

The lifting guild of machine is enlarged to enhance the pressure and ensure uniform pressure

The frame for installing heat transfer film is thick to get better balance

Detailed Images


Heat Press Transfer Printing Machine for Cosmetic Bottles

Heat Press Transfer Printing Machine for Cosmetic Bottles can decorate your cosmetic products and improve its marketing value outstanding performance, such as personalization, serialization, on the fly job changes and mixed artworks within one job; accurate color to color registration; high resolution, photo- realistic prints with great scratch resistance; noble appearance with a glossy or matt finish; no need for storing, mixing inks, cleaning of print stations, evaporation of solvent or UV curing or prints; no specific requirements for clean room, climate control or ventilation; quick set-up and make-ready due to simple to handle machine systems and easy to apply heat transfer decals

Machine Uses



Heat Press Transfer Printing Machine for Cosmetic Bottles

Heat Press Transfer Printing Machine for Cosmetic Bottles plays a reliable printing roles in cosmetic products, likely conditioner, shampoo bottles, closures, caps, jars, mascara, creams and lipstick containers, that standing out of competitors because of reliable, durable, vibrant, environment friendly decorative printing, such as dry process, not solvent fumes; fast and accurate; fits in most of applications; low set-up time; high quality print image; no programming required and easy to use
