Plastic Crate Gold Foil Printing Hot Stamping Machine of Turnover Boxes_Container_Bucket_Crates Logo Bronzing Heat Press Printer

Plastic Crate Gold Foil Printing Hot Stamping Machine

KEEPLEADER has developed new technology that revolutionizes the ability to decorate bulk reusable containers such as crates, bind, totes, roll-off carts, garbage cans and industrial containers with a cost-effective 1.0 tons Plastic Crate Gold Foil Printing Hot Stamping Machine, previously, the decoration of bulk containers needing more than 500mm throat depth required user to select a more costly, higher tonnage system despite that face that the extra tonnage was excessive for this artwork needs

Machine Description

Plastic Crate Gold Foil Printing Hot Stamping Machine

Application

There is class of container products with large external dimensions, such as shopping bags, turnover boxes, storage boxes, with large hollow areas due to items to be contained, when this type of product is hot stamped, the product must be supported to make it have a certain rigidity, for this reason, the cantilever Plastic Crate Gold Foil Printing Hot Stamping Machine comes into being, the so called cantilever Plastic Crate Gold Foil Printing Hot Stamping Machine is to customize the worktable into a three-sided suspended structure, which can the product with the hollow in the middle is directly set on the worktable for bronzing, which not only saves the space of the machine, but also improves the quality of the bronzing, Plastic Crate Gold Foil Printing Hot Stamping Machine can be pneumatic bronzing machine or a hydraulic bronzing machine, the position of the cantilever Plastic Crate Gold Foil Printing Hot Stamping Machine is very important, especially for products make of hard plastic such as turnover boxes, the use of external positioning will improve the positioning accuracy and flexible operation

Parameter

Name	Plastic Crate Gold Foil Printing Hot Stamping Machine
Model	KLS-3200FS
Voltage	220v,50hz,or Specified 110v,60hz
Heating Plate Size	200*300mm
Max Loading Height	1300mm
Central Distance	500mm
Max Printing Speed	700pcs/Hour
Air Pressure	6 Bars
Pressing Time	0.1~99s adjustable
Stamping Pressure	600kgs
Temperature Range	0~300 Celsius Degree
Stroke Distance	100mm
Gross Weight	188kgs
Overall Size	7006001800mm

Salient Character

Simplified controlling system to reduce setup time

Robust structure, steel cantilever frame for reliable pressure applying

Multi heating resistor built in heating plate integrates precision monitoring

Smooth and quiet operation, and simplified troubleshooting

Integrate four casters with brake for convenient mobility

Crank design, strong pressure and low air consumption

Stamping pressure, temperature and speed adjustable

The travelling distance of stamping head is adjustable

Auto pigment foil feeding, winding and tension control

Control panel has clear indicator to navigate the operation effortlessly

Temperature, speed, pressure and workable size all are adjustable

Precision foil stamping mechanism to keep the foil consumption minimal

Compact design makes the machine ideal to save the floor-space

Triggering operation is completed by two buttons simultaneously for safety

Plastic Crate Gold Foil Printing Hot Stamping Machine is acceptable for bespoke construction

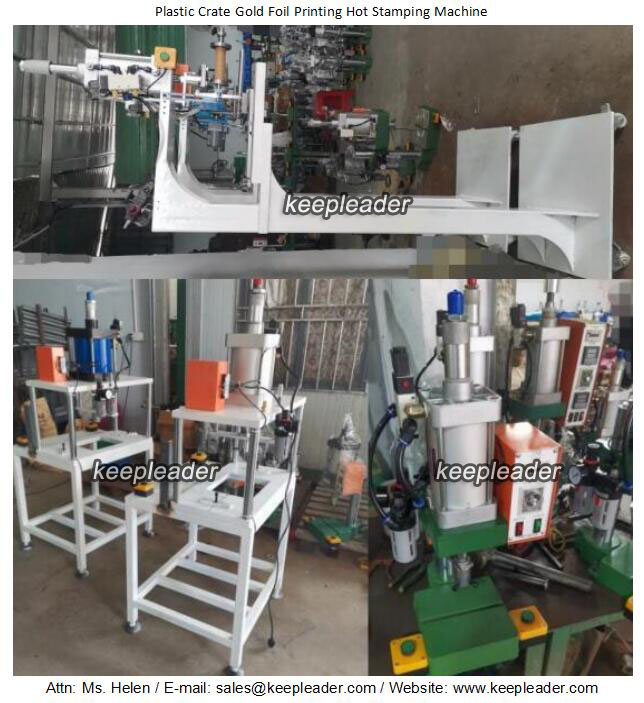

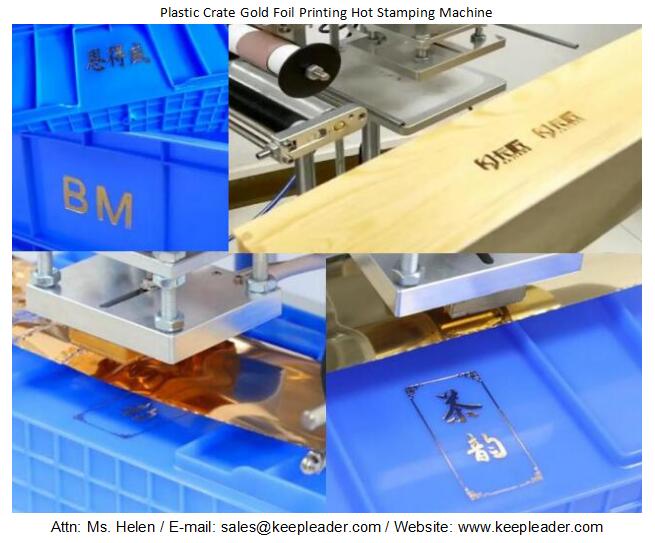

Detailed Images

Plastic Crate Gold Foil Printing Hot Stamping Machine is liquid-free decorating solution for solid plastic container with hollow interior, because of its bespoke fabrication, that necessitates precaution, such as: container shape consideration: flat or round surface are best suited for hot stamp or heat transfer, whereas containers with compound curves are not well-suited; container surface consideration: containers with smooth surfaces are best suited for hot stamp or heat transfer, whereas containers with textured surface are not; charging artwork requires changing stamping dies: graphic images are achieved with silicone or metal dies, a new die is required with each change in artwork, keepleader can schedule die leading time to meet production requirements; speed of application: dwell time requirements vary from instant contact to up to 3~4 seconds in order to have a complete transfer of large image to small text

Machine Uses

Plastic Crate Gold Foil Printing Hot Stamping Machine bestows obvious advantages in plastic containers’ decoration, such as: pigment, metallic, matte and glossy colors: foil is better than ink processes at delivering shiny or mirror effect finishes, pigment and matte metallic colors can be achieved with both hot stamp and heat transfer, bright metallic can only be accomplished with hot stamp, this is because the plating method used in the manufacture of hot stamp foil is not achievable with the inks used in the production of heat transfer label; dry process: unlike pad printing, hot stamping doesn’t use any wet ink or solvent, it is a dry decoration process using foil, there are no storage problems with flammable materials, strong odors ink mixing, or messy clean-up, the decorated containers are ready to be handled; instantaneous curing: no post-curing allows immediate handling; minimum setup time: artwork changeover on the same container required a simple die and or foil roll change if transitioning from one color to the next, no clean-up of inks and tools required, various tools available to achieve quick change’ transitions; on-demand decorating: unlike in-mold labeling that requires decoration at the same time containers are formed hot stamp decoration can be accomplished either in line with molding machines or offline utilizing containers from inventory, this provides greater flexibility for user, it not necessary to have complete artwork at the time the container is made; Semi-skilled operators: when working with a drying process of containers’ decoration, the Plastic Crate Gold Foil Printing Hot Stamping Machine controls the process, of course there are variables, but not as many as with other processes; opacity: foils have superior opacity in one hit/application, pigment foils provide solid colors in flat or gloss finish, equivalent to a thick layer of opaque ink onto decorating plastic container

Our Plastic Crate Gold Foil Printing Hot Stamping Machine for plastic container decoration have exquisite manufacturing technology and excellent innovation, all kinds of our hot foil stamping machines are carefully made according to stringent design procedures and scientific technological process, keepleader, we dedicated to meeting our customers’ needs, no matter how complex or unique, our company values honesty, transparency, and integrity in all of our business dealings and practices, it's one of our important missions to actively fulfill our corporate social responsibility and focus on creating value for society, our team is passionate about what we do and is always looking for new ways to innovate and improve, our company is committed to providing exceptional value and service to our clients, and we always looking for approaches to exceed their expectations, we are committed to addressing our clients’ needs in a timely and efficient solution, we have a group of excellent management and technical personnel, with strong technical communication, process design and manufacturing and commissioning capability, please consult our representatives to find what more we can do for you
