Ultrasonic Cleaner Aqueous Stencil Cleaning Machine of PCB Screen_Steel Mesh_Solder Paste SMT Stencils Washing Ultrasonic Washer

Ultrasonic Cleaner Aqueous Stencil Cleaning Machine

Ultrasonic Cleaner Aqueous Stencil Cleaning Machine is an economical refurbishing device designed specifically to clean stencils, keepleader, we utilize precisely controlled sound waves to remove un-reflowed solder paste from stencils, screens and misprints, at 40khz, the ultrasonic energy is non-confrontational, not to damage delicate parts yet is highly effective in the removal of dried pastes on fine-pitch stencils, the ultrasonic agitation can effectively penetrate into any cranny and nooks of stencils’ apertures, the built-in ultrasonic sweep generator oscillates the cleaning frequency with in 3khz tolerance, preventing damage to wire bonds and other delicate devices

Machine Description

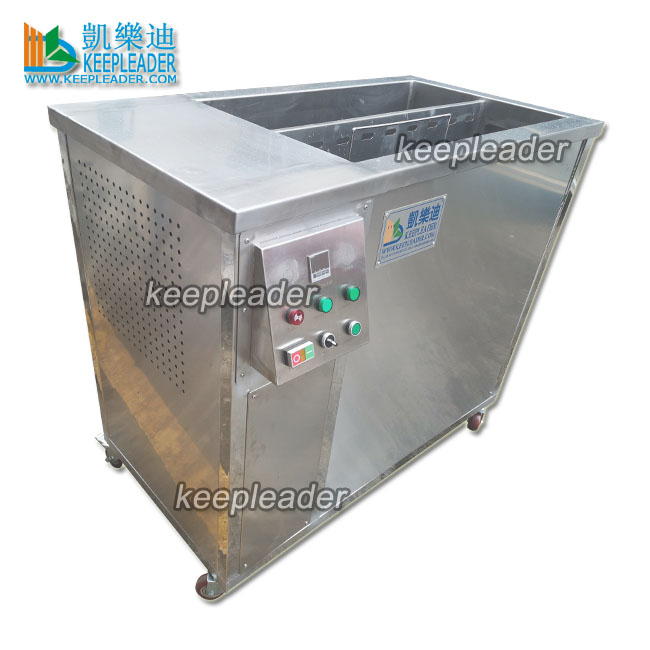

Ultrasonic Cleaner Aqueous Stencil Cleaning Machine

Application

Ultrasonic Cleaner Aqueous Stencil Cleaning Machine has dual chambers with respective functions of ultrasonic agitation decontamination and soak rinsing, it provide manufacturers with excellent cleaning performance while meeting budget and floor space requirements, ultrasonic waves travelling through the aqueous detergent tank can create micro-scrubbing jetting implosion force to loose and remove the solder paste and red glue residue at any cranny and nook of stencil, pallet and miss-printed circuit board, even the water-soluble or plastisol ink on the screen, its uncompromising cleaning results impels prevalence of this Ultrasonic Cleaner Aqueous Stencil Cleaning Machine, furthermore, thanks for its convenience operation and flexible application, the user solely pace their stencil in the rank, submerse in the ultrasonic chamber, and then press the start button, the ultrasonic jetting force penetrate deeply and peels off embedded residues within five minutes, then the user displaces the stencil in to rinsing chamber, after done, takes ultimate step of using a low pressure dry air gun removes the remnant rinse moisture, and your stencil is ready to be used again all in only a few minutes time

Parameter

Salient Character

All-in-one cleaning: ultrasonic agitation cleaning, immersion rinsing and hot air drying in one machine, minimizing required floor-space

Each Loading and unloading: low profile design requires no or minimal bending

Portability: The entire systems move easily around your shop on sturdy casters

Complete cleaning microscopic, ultrasonic removal of solder paste, post solder flux build-up and more

Filter circulation reservoir is optional to alleviate the detergent consumption and eliminate secondary contamination

Easy maintenance with easy-to-access, and easy-to-replace components

Ultrasonic frequency of 40khs is non-confrontational, which more gentle

All stainless steel construction, which is robust and corrosion resisted

Heating temperature and ultrasonic power intensity are on precision control

Low liquid level protection, overflow system and stencil rack are installed

Solder trap for easy disposal of heavy sediments

Ergonomically-arranged operator controls

Coupling with tank lid, stencil rack and liquid level sensor

High power ratio to gratify application of aggressive cleaning process

Optional configuration includes independent filtering circulation reservoir, nozzle jetting wand, and hot air-knife drying gun

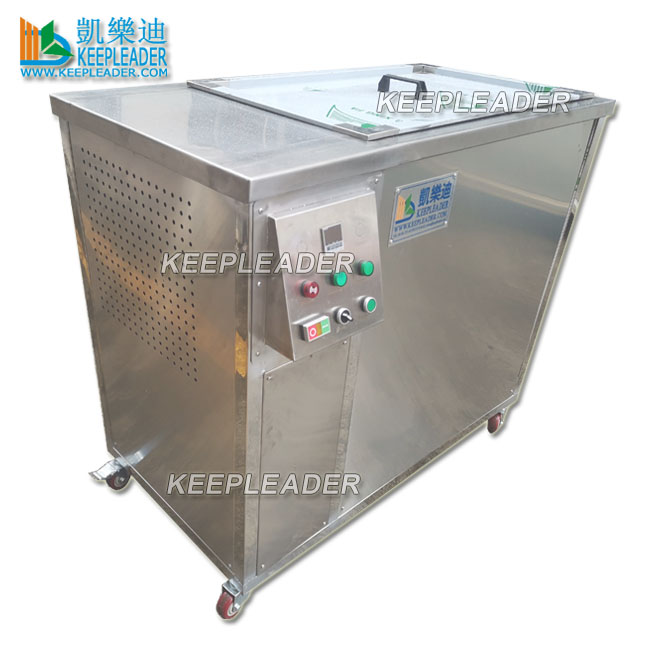

Ultrasonic Cleaner Aqueous Stencil Cleaning Machine

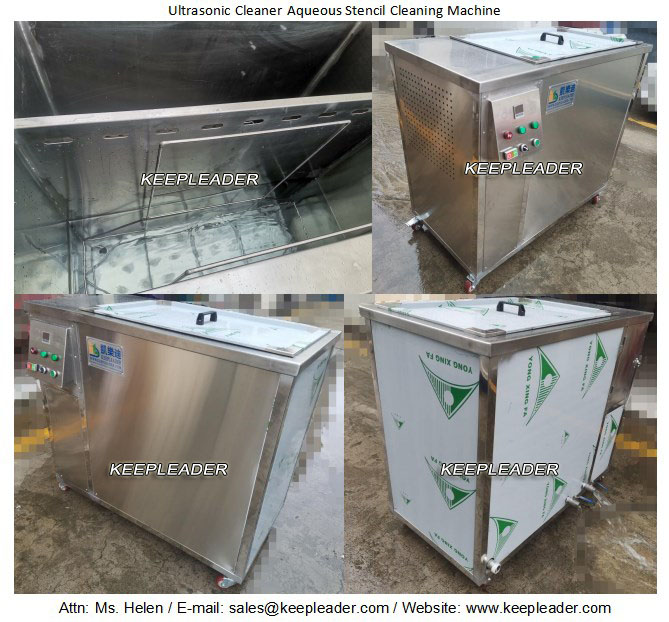

Detailed Images

Ultrasonic Cleaner Aqueous Stencil Cleaning Machine uses advanced digital technology to meet any precision cleaning requirements in application of SMT, automatic frequency tracking and phase angle control cleaning power are strong and stable, wide-band scanning, different bands, and scanning frequencies can be selected to eliminate standing waves, improve ultrasonic energy distribution, and eliminate cleaning blind spots, that is crucial for delicate stencil, SMT steel mesh can be completely cleaned within several minutes without complex procedures at affordable price

Machine Uses

Ultrasonic Cleaner Aqueous Stencil Cleaning Machine is guaranteed to clean any type of solder paste from any fine pitch stencil, at the same time its low power density is safe for cleaning misprinted PCBs and pallets, and its low temperature cleaning conserve energy and protects stencils from heat distortion and adhesive failure

Contact Us

There are numerous processes available for Ultrasonic Cleaner Aqueous Stencil Cleaning Machine including ultrasonic agitation rubbing, immersible rinsing, and high pressure spray cleaning, and hot air-knife drying and up and down agitation of auto lifting, in addition, involving in auto transmission of loading and unloading, depends on the type, these can be used with detergent and aqueous-based cleaning, this Ultrasonic Cleaner Aqueous Stencil Cleaning Machine can be further differentiated by the number of chambers that are available for the various process step, such as cleaning, rinsing and drying, this enables the cleaning process to take place in one or more chambers, steel stencils, fine pitch and nano-coated stencils as well as screens, squeegees are commonly cleaned in this kind of machines, keepleader, we always arouse negotiation for any possibilities of innovation
