PVC PET Boxes Soft Crease Making High Frequency Welder of Transparent Plastic Rigid Packaging Box Folding Line Forming HF Welder

PVC PET Boxes Soft Crease Making High Frequency Welder

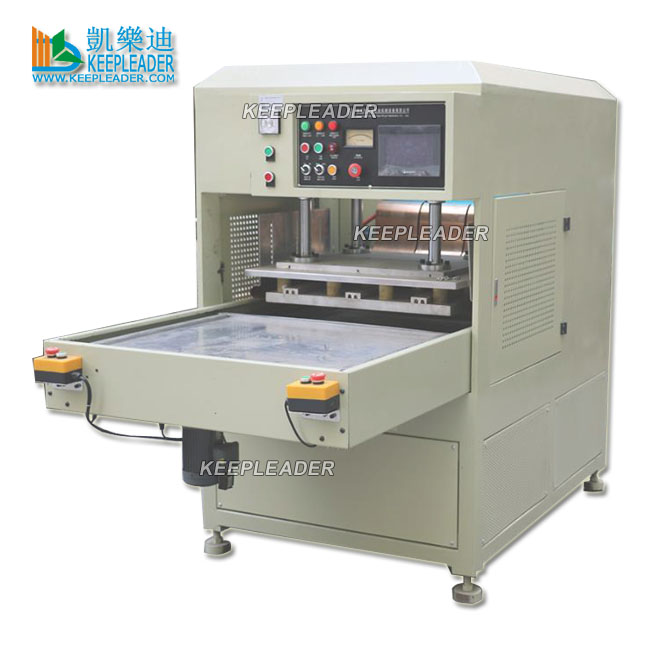

PVC PET Boxes Soft Crease Making High Frequency Welder has two shuttle tray at one side, one person operate the machine to save the labor cost

Production Description

PVC PET Boxes Soft Crease Making High Frequency Welder

Mainly application
15KW PVC PET Boxes Soft Crease Making High Frequency Welder is used for big size welding and cutting, soft crease box making of PVC/PET/PP and etc, big size of embossing for fabric/plastic and other thermal forming material
Character
High Q value oscillation tube The high frequency complies with international standard: 27.12 MHz The machine can keep static for power sudden failure High sensitive anti-sparkle device NL 5557 to avoid damaging the mould. European-model high frequency vibration barrel, more reliable and stable in output Automatic thermostat to keep the temperature at best performance in welding High precision high frequency regulating knob for visible control Low voltage control panel for safety purpose Anodized mould and tooling for longer life-span Top amounted cylinder for vertical pressing, which is more uniform pressure Over current protection circuit to avoid burning the oscillation tube Power ranges 5kw up to 10kw for various welding size The welding electrode is screw fixed, which is easy replacement High frequency shield to avoid omission is optional Giving pressure by level elbow joint, which can save the strength Stroke distance and horizontal of electrode are adjustable One oscillation vibration system control double working position Thick steel plate bracket, more steady for giving pressure Imported famous brand electronic and pneumatic components
Mainly parameter
Name	PVC PET Boxes Soft Crease Making High Frequency Welder
Model	KLR-15KW-25T	KLR-25KW	KLR-35KW
Power	15KW	25KW	35KW
Power supply	380V 50/60HZ
Frequency	13.56MHZ
Input power	25KVA	40KVA	50 KVA
Rectifier	SILICON DIODE
Oscillation tube	8T85RB	8T25RA	8T87RB
Max pressure	1000kg	2000 kg	3000 kg
Gap of electrodes	150MM
Moving distance of active horn	100MM
Size of upper electrode	250*1200MM	1300*1700	1400*2040
Size of down electrode	250*2500MM	1500x1900	1600X2200
Welding time	0~10S Adjustable
Net weight	2000kg	3000kg	3500kg

MFR: KEEPLEADER has modified and designed PVC PET Boxes Soft Crease Making High Frequency Welder to accommodate our customers'

unique and special requirements, pls contact KEEPLEADER for tech assessment with your detailed information

Detailed Images

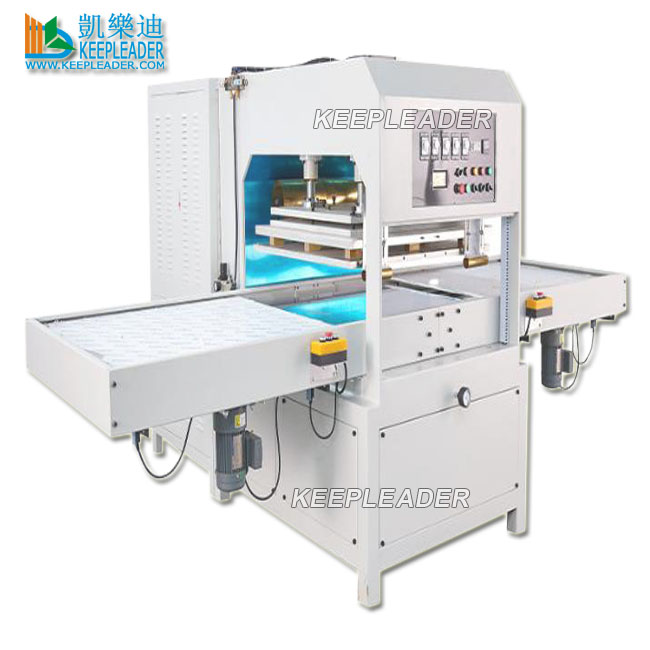

PVC PET Boxes Soft Crease Making High Frequency Welder construct dual shuttle tray laminated at one side for convenient loading and unloading that is suitable for sports shoe upper and insole tear-off cutting, embossing and welding

Machine Uses

PVC PET Boxes Soft Crease Making High Frequency Welder is used for welding/embossing/edge trimming of sports shoe cloth shape/pattern forming

We welcome the opportunity to explain every last details and all of the options available in fact, and. won’t waste your time and ours, our goal is to educate our potential customers and let them make an informed decision, please contact KEEPLEADER for more info of PVC PET Boxes Soft Crease Making High Frequency Welder
