Big Tank Ultrasonic Cleaning Machine High Capacity_Large Volume Metal Parts_Engine Block Degreaser Industrial Ultrasonic Cleaner

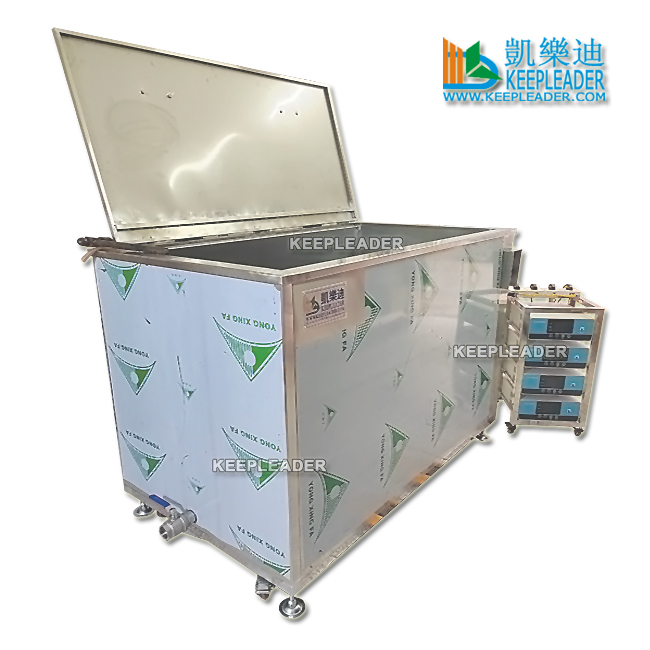

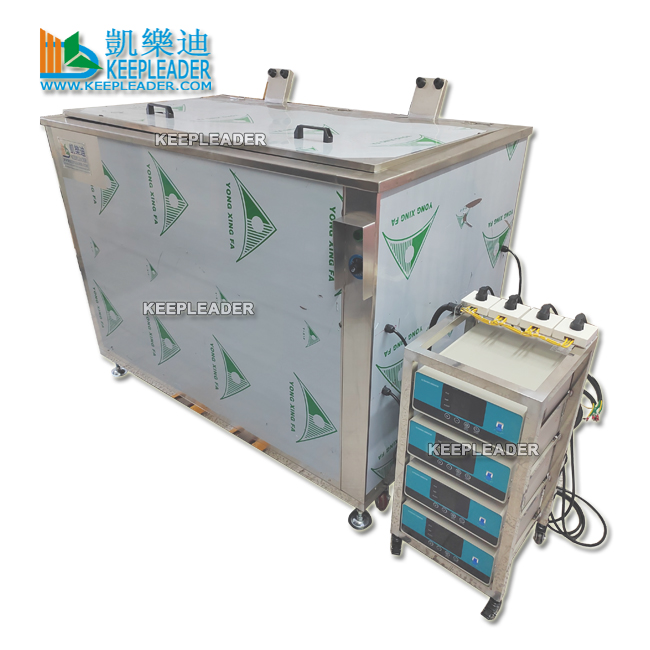

Big Tank Ultrasonic Cleaning Machine

Keepleader, our Big Tank Ultrasonic Cleaning Machine incorporates a heavy Gage stainless steel tank with integrally welded (bottom and/or side) piezoelectric vibrators diaphragms, creating an ultrasonic cleaning system designed for decades of industry-duty use, cleaning chambers are available for specified dimension to your exact application or specification, which is ideal for cleaning large components or large batches of smaller parts that can be combined with matching rinse tank and dryers, to meet a variety of process applications

Machine Description

Before using this Big Tank Ultrasonic Cleaning Machine, make sure it is clean and free of debris, fill the tank with appropriate cleaning solution and ensure that the unit is plugged into a grounded outlet, place the items to be cleaned in the basket or tray provided, ensure that the items are not touching each other or the sides of the tank, as this can reduce cleaning effectiveness, set the cleaning time and temperature according to the instructions provided with the cleaning cleaning solution, for delicate items, use lower temperatures and shorter cleaning cycles, but for heavy-greased items, can consider prolonged time and power intensity, turn on the Big Tank Ultrasonic Cleaning Machine and allow it to run for the specified cleaning time, the advanced ultrasonic time can achieve degas function, which run for a few minutes before starting the cleaning cycle, when the cleaning cycle is complete, turn off the ultrasonic activator, and remove the basket or tray, rinse the items thoroughly with clean water to remove any residue from the cleaning solution,after each use, empty the tank, rinse it thoroughly with clean water, and wide it dry with a soft cloth, store the unit in a clean and dry place, by following these instructions, you can ensure that you Big Tank Ultrasonic Cleaning Machine is used safely and effectively, and that it will provide reliable cleaning results for many years

Big Tank Ultrasonic Cleaning Machine

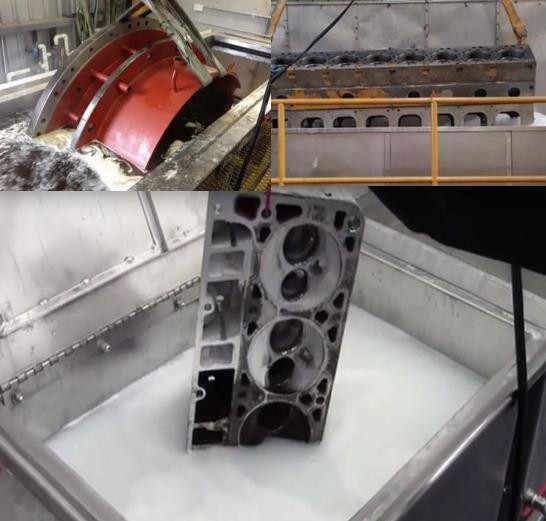

01: Running Scenario

A robust Big Tank Ultrasonic Cleaning Machine is ideal for handling intricate geometries and ensuring thorough cleaning of internal cavities, which traditional approaches might leave untouched, Big Tank Ultrasonic Cleaning Machine is particularly suited for application requiring robust cleaning power and ability to handle sizable or intricate parts with internal passageways, when selecting a Big Tank Ultrasonic Cleaning Machine for industrial applications, key factors include tank size, load capacity, contamination type and required cleanliness standards, properly configured, Big Tank Ultrasonic Cleaning Machine can significantly enhance efficiency and precision for complex parts, our Big Tank Ultrasonic Cleaning Machine is designed to handle the most demanding application with precision and reliability, for facilities that need heavy-duty cleaning, choosing a large parts washer provide the scalability and durability required for ongoing production need, this unit excels in environments where both capacity and consistency are critical, when planning for future growth or transitioning from small or medium sized ultrasonic cleaner to Big Tank Ultrasonic Cleaning Machine, this unit is your best option, the majority of cleaning scenarios covers industrial washing process, such as cleaning of parts with a lot of internal passageways, like casting and cylinder block using a Big Tank Ultrasonic Cleaning Machine for effective flushing; medial and aerospace parts which have critical cleaning requirements where a large parts washer or large industrial ultrasonic cleaner can ensure thorough cleanliness; removal of buffing and lapping components; cleaning prior to welding, deburring, brazing, blasting or other post-poss application where surface cleanliness is critical; precision cleaning prior to assembly or final packaging; general washing for maintenance, rework and or re-manufacturing; engine rebuilding; carbon, rust, ink and paint removal; citric acid passivation, phosphating, annealing finish and coating

02: Referential Attributes

Underscore

Material is cavitation-resistant, bright annealed 304 and 316L stainless steel

Welded inside and out for long-term stability and sturdy performance

Cove cover construction with ground and polished welds available

Sloped/Tilted bottoms for easy draining to avoid resettled sediment on the bottom

28kz sweep frequency generator provides effective cavitation without standing wave or hot spots

Variety of options to suit most any cleaning or process demand

Digital timer of heating and intelligent ultrasonic control or activation and surveillance

Casting aluminum heating plate and stainless immersion heaters to apply consistent heating

The outside of cleaning tank is coated with thermal insulation to inhibit thermostat

The low liquid level protection can reliable detect the fluid’s presence in specified level or not

5 inch industrial locking casters allow tank movement even when full

Adjustable output power intensity to satisfy versatility of demanding ultrasonic energies

03: Buying Guidance

031: Optimal Tank capacity

0311: tanks size is paramount, encompassing both solution volume and physical dimension

0312: ensure parts are full submerged, avoiding contact with tank wall or other parts

0313: utilize cleaning basket for smaller items, with dividers and trays for efficient separation

0314: for large components like engine blocks or heat ex-changers consider units with integrated supports and overhead crane compatibility

032: targeted ultrasonic frequency

0321: frequency dictates cavitation bubble size and cleaning intensity

0322: lower frequency,likely 28khz is ideal for heavy-greased remove from robust parts

0323: higher frequency, likely 40khz provide gentler cleaning for delicate items

0324: dual frequency system offer versatility for diverse cleaning needs

033: durable construction for extended operation

0331: industrial-grade unit should feature welded, cavitation resistant stainless steel tank

0332: continuous operation, capability for continuation in working

034: enhanced mobility: lockable wheels enable easy relocation within the facility

035:temperature control and insulation

0351: integrated heating device maintains optimal cleaning solution temperatures

0352: insulated tank and lid minimize noise, evaporation and heat loss

036: extended cleaning solution lifespan

0361: implement weirs and spray bars for floating contaminant removal (option)

0362: utilize single or dual filtration system to capture solid particles/residues (option)

0363: select appropriate cleaning chemical for DE-emulsifying or emulsifying

037: integrated pre and post-cleaning rinse option

0371: pre-cleaning removes coarse debris, extending solution effectiveness

0372: post-cleaning rinsing eliminates residual cleaning solution

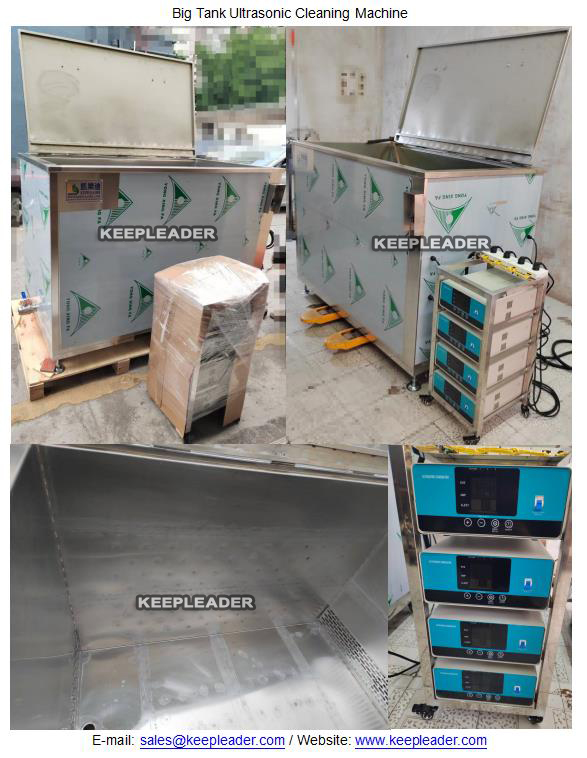

Detailed Images

Utmost factors in selection of Big Tank Ultrasonic Cleaning Machine must always come into sense, such as tank size:: the size of Big Tank Ultrasonic Cleaning Machine is one of the most critical factors to consider when selecting, the tank should be large enough to accommodate the items or items to be cleaned, but not so large that it wastes cleaning solution or energy, note that for thorough cleaning, the object must be fully submerged into the cleaning solution to guarantee the sufficient bubbles implosive impact to dislodge any contamination; ultrasonic power and frequency: the power output of Big Tank Ultrasonic Cleaning Machine is another critical factor to consider, high power cleaners are more effective at removing dirt and grime from items, but they also consume more energy and can be more expensive, the frequency of the ultrasonic wave can also affect cleaning effectiveness, with high frequencies being more effective at removing smaller particles, but, low frequencies are more aggressive to remove the stubborn particles, particularly for coarse cleaning of automobile, aerospace, aviation; cleaning solution: the type of cleaning solution used with the Big Tank Ultrasonic Cleaning Machine can impact the effectiveness of cleaning process, different solutions are formulated for dedicated tasks, such as removing grease, oil or dirt, it is essential to select a cleaning solution, that is compatible with the Big Tank Ultrasonic Cleaning Machine and items being washed; Configuration: if you are opting for a self-contained Big Tank Ultrasonic Cleaning Machine, the configuration of the system will be top of mind, such as independent filtering circulation reservoir, auto elevator of up and down agitation, bubbling system, cascading overflow oil skimmer, high pressure spray cleaning wand, hot air drying gun; durability: durability is another critical factor to consider when selecting Big Tank Ultrasonic Cleaning Machine, adopted material should be all high-quality stainless steel that can withstand the rigors of the cleaning process, it is also essential to consider the durability of the tank, transducer and other components, as these parts can wear out over time and require replacement; warranty

Machine Uses

Big Tank Ultrasonic Cleaning Machine of self-contained version eases commissioning, the user solely operates two activators of dedicated ultrasonic and heating process, we usually consider cleaning temperature within 50 Celsius Degree, which can vigorously enhance cavitation performance and remove the stubborn grease, the obvious factors involved in efficiency attributes to control of cleaning time, our reference for your cleaning time is worthy for your attention, light dirt or dust: 3~5 minutes; general grease and oil: 5~10 minutes; heavy carbon, thick grease, or burnt residue: 10~20minutes; very complex or badly soiled parts: up to 30 minutes or more, the utmost options tends to precleaning precede ultrasonic cleaning for heavy oiled parts, which ancillary process is often regarded as necessity
