High Pressure Jetting Cabinet Washer Rotary Spray Cleaning Machine of Single Station Nozzles Spraying Engine_Auto Parts Cleaners

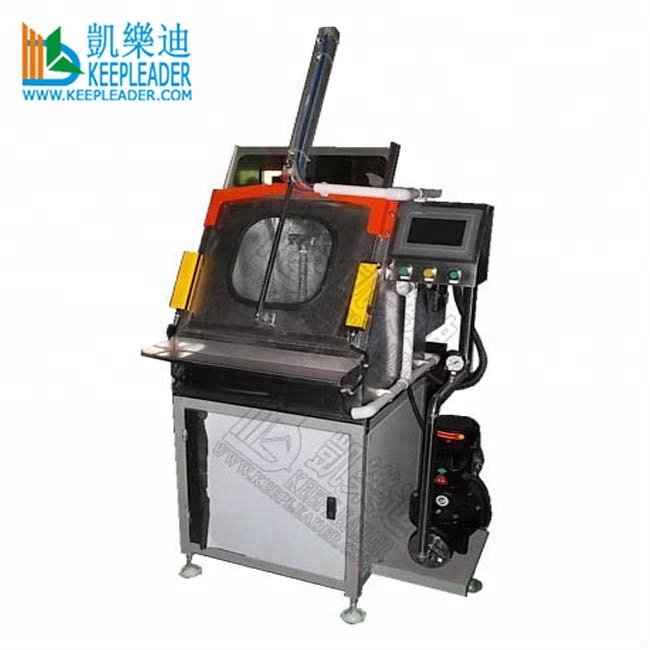

High Pressure Jetting Cabinet Washer Rotary Spray Cleaning Machine

High Pressure Jetting Cabinet Washer Rotary Spray Cleaning Machine

High Pressure Jetting Cabinet Washer Rotary Spray Cleaning Machine is our cell-jet cabinet washer, is an excellent rotary spray cleaning machine for point of use, batch cleaning where very little floor space is available, this High Pressure Jetting Cabinet Washer Rotary Spray Cleaning Machine was designed as a low cost, down and dirty industry quality wash station utilizing medium pressure spray impingement and compressed air to clean and dry your parts

Product description


Application

High Pressure Jetting Cabinet Washer Rotary Spray Cleaning Machine is used for cleaning and water shearing of precision hardware parts, crankshaft, piston and so on

Suitable for automotive air-conditioning compressor parts and other auto parts cleaning and drying

Character

Build-in PLC and touch screen for convenient operation

Equipped with efficient oil-water separation, cycling, and filtering system

Equipped with overload protection system, automatic level control and alarm system

Using multiple cleaning process, such as spray cleaning and ultrasonic cleaning

Using fixture position device, spinning spray and water cutting

With Pneumatic robot arm for automatic cleaning

With timer, counter, alarm, temp controller and speed control

Loading and unloading in the same station, full automatic process

Automatic liquid compensation

Mount grating intelligent control in its loading and unloading process

With thermostat and hot air drying system

With overload protection system, audio and light alarm

Parameter

Model

KLE-01SP

Cleaning model

Spinning+ hot water spraying

Spraying pressure

10mpa

Jetting range

100m

Power consumption

10kw

Power Source

380v / 50hz

Overall size

1.6*1.2*1.9m

Weight

600kgs

High Pressure Jetting Cabinet Washer Rotary Spray Cleaning Machine is ideal for cleaning, degreasing and drying large loads of small or medium size parts in preparation for assembly, surface treatment, packaging and distribution, its maximum loading size and geometries depends on specified jetting cabinet, that is acceptable for customization

MFR: KEEPLEADER™ have modified and designed High Pressure Jetting Cabinet Washer Rotary Spray Cleaning Machine for our customers’ unique and special requirements, please contact KEEPLEADER™ for updated details

Company overview


High Pressure Jetting Cabinet Washer Rotary Spray Cleaning Machine

High Pressure Jetting Cabinet Washer Rotary Spray Cleaning Machines are the most versatile of all designs, and we offer a wide range of customization with a range of optional capabilities, that comprise multi-stages, filtration, custom table, and fixture designs, modified pump pressures and water temperatures, tailored jet cabinet, jet impinging force, liquid storage reservoir, manifold blasting nozzle, adjustable jetting power, heating capable controlling and monitoring system, window blower clears detergent and spay for parts viewing for efficient accurate cleaning, pneumatic front opening door allows full access to entire cleaning chamber, variable output nozzle can be set from a wide fan to a pinpoint stream to allow operator to adjust cleaning force as needed, built in air blow-off nozzle for parts drying, oil skimmer, workload turntable, drain shelf

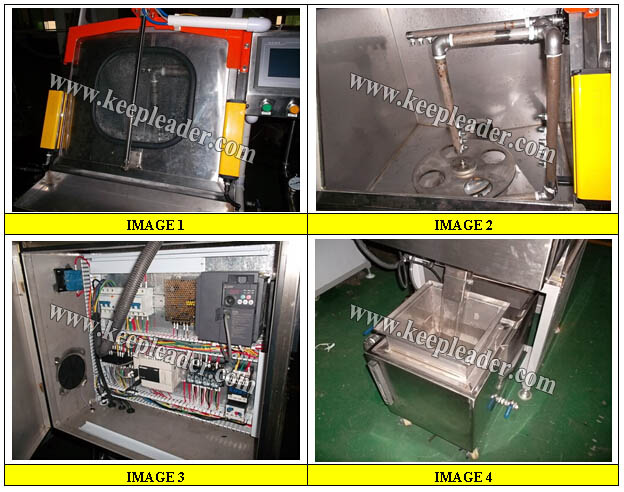

Detailed iamges


High Pressure Jetting Cabinet Washer Rotary Spray Cleaning Machine

High Pressure Jetting Cabinet Washer Rotary Spray Cleaning Machine takes bespoke dimensional cabinet to gratify maximum loading size, and optional configuration for applicable versatilities

Our Service


KEEPLEADER™ SERVICE

ABOUT PRODUCT

Customized design; Safe and convenient operation

ABOUT FACTORY

Comprehensive management process, leading technology and service team

EXPERIENCE

Internationalization of business process; Rich experience of Non-standard design

AFTERSERVICE

Uniform standard with special difference for each, Professional and Experienced service

MARKET

Yearly 30% Market share increased, One-to-one service

SERVICE PROCESS AT KEEPLEADER™
the clients offer information of the workpieces being cleaned (eg: picture, materials, sizes, requirements, etc) if have samples, it’s better to send KEEPLEADER™ some sample to perform the cleaning test, if can be cleaned, we provide offer sheet, once confirmed, sign a contract, the clients paid the deposit, KEEPLEADER™ start equipment building, after passing the acceptance, and receive the balance payment, KEEPLEADER™ delivery the device to clients


After-salve service


After purchasing at KEEPLEADER™ is first step of our after-service, all of machines at KEEPLEADER™ has one year guarantee, we provide free samples for defected parts to do replacement except for human damage, under information for your notice

01: KEEPLEADER™ always posts the new technical file in our homepage that can help our client in new technical information of machines’ design, character, application, operation, maintenance,

and related, KEEPLEADER™ also welcome our clients feed back the machines’ working condition that can get one to one service

02: If the machine you purchased has any defects, please contact sales representative at KEEPLEADER™, we will assign our experienced engineer analyze your case and provide technical support, in case of damaged parts that cannot repair, KEEPLEADER™ will provide a new parts to replace the defect

03: For any replacement and maintenance, KEEPLEADER™ has user manual and training video

04: KEEPLEADER™ can go to oversea for on-site training

05: KEEPLEADER™ can provide electric diagram if in need

Contact Us


High Pressure Jetting Cabinet Washer Rotary Spray Cleaning Machine

High Pressure Jetting Cabinet Washer Rotary Spray Cleaning Machine takes classification of standing-along cell jet cabinet washer, that is constructed for customers Orientation,at keepleader, we don’t simply match you part to the closest machine size that will work, we match our High Pressure Jetting Cabinet Washer to your part to provide the most efficient and economical cleaning solution, contact us to consult your practical concerns with our tech expertise, trust that our professional team can work out a reliable high pressure jetting cabinet washer for you at reliable pricing level
