Vibrating Transducer Plate Immersible Ultrasonic Cleaners of Vibration Pack_Transducers Box Submersible Ultrasound Cleaning Unit

Vibrating Transducer Plate Immersible Ultrasonic Cleaners

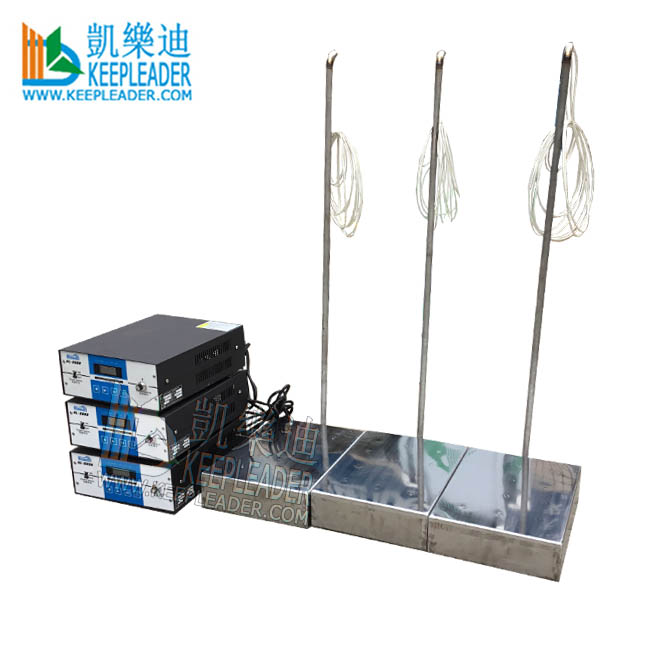

Vibrating Transducer Plate Immersible Ultrasonic Cleaners comprise two elements of ultrasonic generator and ultrasonic transducers box, the suitable quantities of transducers mount into a sealed stainless steel enclosures, which will receive transmitted ultrasonic signal to transfer mechanical vibration, ultrasonic generator plays a role of generating ultrasonic wave from electric current, the transducers boxes achieve cavitation effect, which because of ultrasound wave going through liquid or water in a new or existed tanks,the wave of  expand and contract in the liquid can form and collapse tiny bubbles or voids, the explored bubbles take jetting force with inherent raised temperature, this performance is also called ultrasonic cavitation to exert ultrasonic agitation scrubbing, the molecular scale of bursting force penetrate into the bind holds, cracks, crevice, blind corners and any inaccessible recesses and peals off entrapped stubborn contamination and remove them away from the parts to accomplish the cleanliness

Product description

 Vibrating Transducer Plate Immersible Ultrasonic Cleaners

 MFR: KEEPLEADER has modified and designed Vibrating Transducer Plate Immersible Ultrasonic Cleaners to accommodate our customers’ unique and special requirements, please contact KEEPLEADER for tech assessment

Company overview

Vibrating Transducer Plate Immersible Ultrasonic Cleaners take convenient application in cleaning process arranged with your existed tank, or drop in ultrasonic to existing manufacturing cleaning process lines, such as aqueous cleaning lines, passivation, plating lines, or other part finishing processes,which require microscopic surface scrubbing agitation or contamination removing

Technology

Vibrating Transducer Plate Immersible Ultrasonic Cleaners have bespoke quantities and placement, which depends on the volume of liquid in the tank, geometric layout of the tank, and loading size of cleaning object, the size of immersible tank and parts cleaning application, the watts of ultrasonic power per gallon or watts/gal can vary from 30 to 100+ w/gal

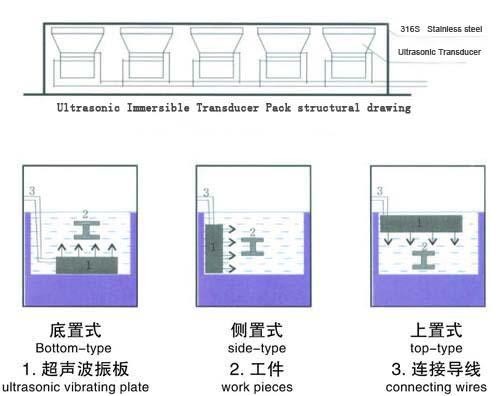

Vibrating Transducer Plate Immersible Ultrasonic Cleaners vary from placement of mounting in side mounting, bottom mounting and top mounting, depending upon their geometry, in general, side mounting is recommended for tanks where the depth is more that two times the smallest of the length or width, side mounting helps prevent debris and foreign material from settled on the top of the ultrasonic transducer boxes, which can reduce ultrasonic effectiveness

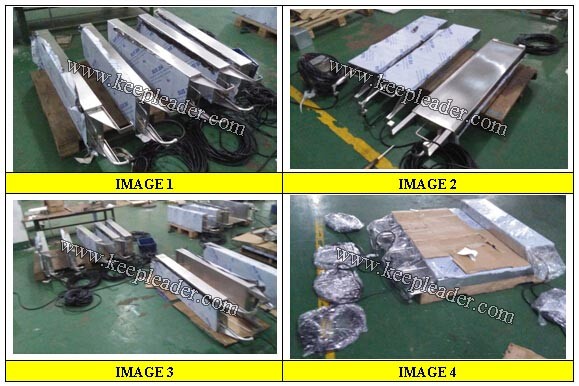

Detailed images

Vibrating Transducer Plate Immersible Ultrasonic Cleaners stand out of advantages, the heavy-duty design of the stainless steel box has completely sealed components, which allows for precision ultrasonic cleaning in conditions normally too harsh for such precision electronics;valve bodies and manifolds with small internals not accessible for cleaning by forced spray or mechanical removal; medical device stainless steel parts cleaning; aerospace parts cleaning; ultrasonic part cleaning of water soluble machining coolants, chips, particulate, true machining, cutting oils, buffing, polishing and lapping compounds which require mechanical surface scrubbing to remove; general washing for maintenance, manufacturing, since submersible ultrasonic boxes are most commonly added to existing stainless steel and other metallic based tanks, the boxes and ultrasonic power are made to fit such tank, keepleader can easily make our Vibrating Transducer Plate Immersible Ultrasonic Cleaners into any tank configuration sizing required for your application

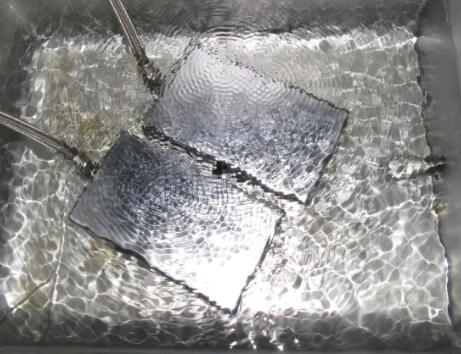

Cleaning effect

Vibrating Transducer Plate Immersible Ultrasonic Cleaners are sealed stainless steel enclosures, to make a exist tank become a ultrasonic tank, the number and placement of Vibrating Transducer Plate Immersible Ultrasonic Cleaners are primarily determined by the volume of liquid in the tank, geometric layout of the existing tank, and load size of cleaning parts, depending on the size of tank and parts cleaning application, the watts of ultrasonic power per gal or watts/litre can vary from 30 to 100+w/gal

OEM Service

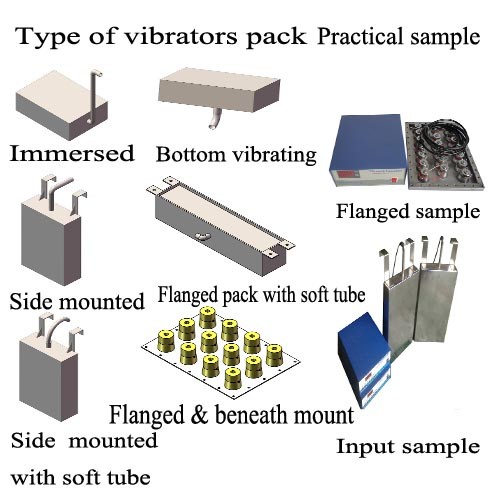

Vibrating Transducer Plate Immersible Ultrasonic Cleaners configue tailored size in compliance with dimension of existed tank, the mounting position depends on the geometric layout of tank, we vary transducers box of side mounting type with Jacket, bottom mounting type with leading tube of ultrasonic signal wire, top mounting type with suspended holding device and beneath mounting type with flange, which are flexible arrangement for each practical cleaning process

Contact Us

Vibrating Transducer Plate Immersible Ultrasonic Cleaners take addictive function of ultrasonic aigtation cleaning integrated with existed immersing tank, or drop on your electroplating line, passivating line, or other production line to achieve a cleaning, agitating, scrubbing performance, thanks to keepleader's tech team, they commit to construct customized transuducer boxes in scale of ultrasonic energy, geometric shape, mounting addiction, specified size with reliable cleaning effect and affordable price, we promise that you satisfy our one-stop service , let us see the achievement from your initiation to last contentment
