Large Volume Ultrasonic Tank Cleaning Machine for Air Cooler_Metal Parts Grease/Oil Removal Washing Ultrasound Soaking Equipment

Large Volume Ultrasonic Tank Cleaning Machine

Large Volume Ultrasonic Tank Cleaning Machine

Large Volume Ultrasonic Tank Cleaning Machine has big liquid soaking capacity tank used for immersing large metal parts in removing grease, oil contained by ultrasonic explosive jetting to get upmost cleaning effect

Machine description


cooling tower/air cooler ultrasonic cleaning machine

Related field of ultrasonic cleaning technology

 With cavitations effect Ultrasonic cleaning technology is widely used in ultrasonic golf club cleaning, semi-conductor silicon chip cleaning, optical glass cleaning, parts of watch and cock cleaning, jewelry cleaning, polyester filtration core cleaning, widow blind cleaning, hardware, metal  parts and etc

Mainly application

KLE-10480 is our single tank air cooler ultrasonic cleaning machine, which has cycling and filter system, is used for air cooler cleaning or cooling tower cleaning, inside is steel architeture design, which can bear at least 1500kgs weight, the machine can work with your customized lifter for automatic loading and unloading

Character

All imported stainless steel structure, thickening Stainless steel plate,

adopting high Q value transducer and German binding process large power of ultrasonic output, set solvent heating and temperature automatic thermostat instrument, and temperature control range 0~100°C, base solvent, no pollution

Ultrasonic generator: VT model ultrasonic generator, output power continuously adjustable

with cycling and filtering system

Mainly parameter

Model

KLE-10480R

Power

24KW

Heating power

36KW

Ultrasonic Frequency

28KHz

The quantity of vibrator

480pcs

The quantity of generator

10pcs*2400W/PC

Tank material

304 stainless steel

Temperature range

0 to 100 degree

Cleaning time range

0 second up to 999 seconds

Cooling mode

Fan cooling

The range of generator

2400w

The power of vibrator

50w

power voltage

380W,3phase

Power frequency

50HZ or 60HZ

Size of Internal tank (mm)

2*1.2*1.2 m

Dimension (mm)

2.5*2.4*1.6m

Net weight

1000kgs

Packing method

Wooden case, fumigation-free material

Special notice for application

Must be sure of the water is over minimum fill line on the inside of tank when heating

You can decide if cradle in need or not, cradle is convenient to load and unload the work piece

The size of cleaning tank depends on your work piece and cleaning efficiency,

The cleaning scope of 1pc vibrator is 10cm*10cm from horizontal direction, the vertical direction is under 60cm as better choose

Ultrasonic power/emtting area(cm*cm)= power density≥0.3w/cms

MFR: KEEPLEADER™ have modified and designed Large Volume Ultrasonic Tank Cleaning Machine for our customers’ unique and special requirements, please contact KEEPLEADER™ for updated details

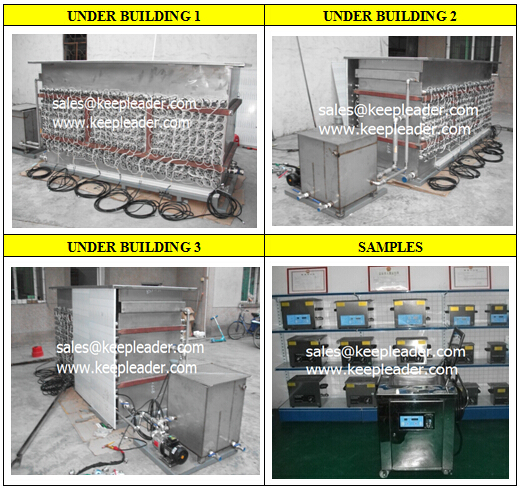

Detailed images


Large Volume Ultrasonic Tank Cleaning Machine

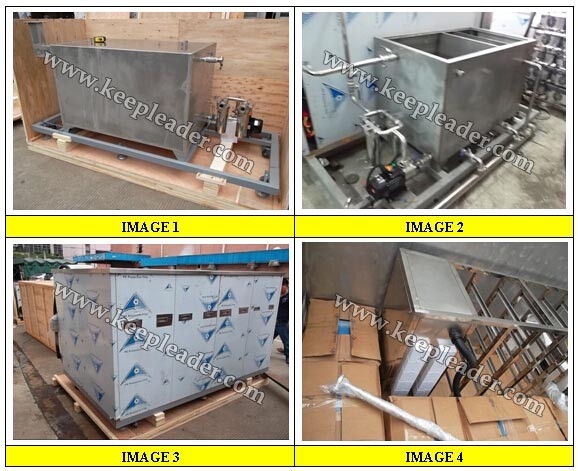

Large Volume Ultrasonic Tank Cleaning Machine equipped with separated filtering circulation reservoir, Filtering pump, the free-stand of ultrasonic generator and heating elements

Buying guides


01: Choose your correct system
For customers demanding multiple stage ultrasonic cleaning and high efficiency parts drying, KEEPLEADER™ multi-stage consoles provide the same efficient, effective ultrasonic cleaning technology plus the ability to move the items items through additional wash and rise stages, KEEPLEADER™ will design a custom-sized and custom-featured ultrasonic cleaning machine to meet your specific needs
011: heated ultrasonic cleaning
012: heated ultrasonic cleaning + heated rinse
013: heated ultrasonic cleaning + heated ultrasonic rinsing
014: heated ultrasonic cleaning + heated ultrasonic rinsing + hot air drying
015: Inner size of cleaning tank, frame construction, custom color, ultrasonic frequency
02: Choose your tank size
021: the length*Width*depth you wanting
022: advise KEEPLEADER™ the size of your cleaning parts and cleaning efficiency
03: Each system includes:
031: Full insulated stainless steel tanks
032: Exterior power coat finish
033: Digital temperature controls-each tank
034: Digital timer-controlled ultrasonic cleaning
035: Dual stage filtration-cleaning stage
036: Single-stage filtration rinse stage
037: Low-level float sensors-each stage
04: Exceed industry standards
041: All size available, including bench version
042: High quality stainless steel construction
043: For vapor degreasing, cleaning and drying applications
044: Full solution control features

After-sales service


After purchasing at KEEPLEADER™ is first step of our after-service, all of machines at KEEPLEADER™ has one year guarantee, we provide free samples for defected parts to do replacement except for human damage, under information for your notice

01: KEEPLEADER™ always posts the new technical file in our homepage that can help our client in new technical information of machines’ design, character, application, operation, maintenance,

and related, KEEPLEADER™ also welcome our clients feed back the machines’ working condition that can get one to one service

02: If the machine you purchased has any defects, please contact sales representative at KEEPLEADER™, we will assign our experienced engineer analyze your case and provide technical support, in case of damaged parts that cannot repair, KEEPLEADER™ will provide a new parts to replace the defect

03: For any replacement and maintenance, KEEPLEADER™ has user manual and training video

04: KEEPLEADER™ can go to oversea for on-site training

05: KEEPLEADER™ can provide electric diagram if in need

06: Large Volume Ultrasonic Tank Cleaning Machine has user manual and tutorial video

Company overview

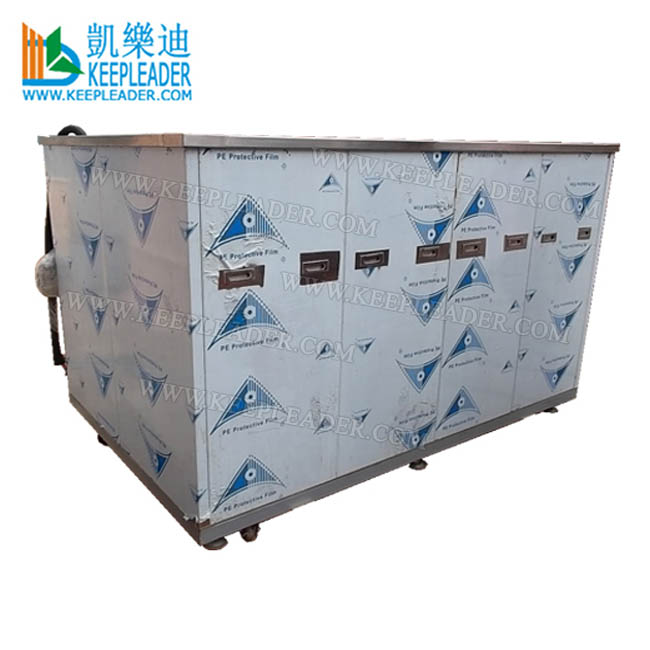

Large Volume Ultrasonic Tank Cleaning Machine

Large Volume Ultrasonic Tank Cleaning Machine can make to your order in optional characters in #1: multiple tanks, #2: auto lifting with down agitation #3: Programmal logic control  #4: transmission trolley
