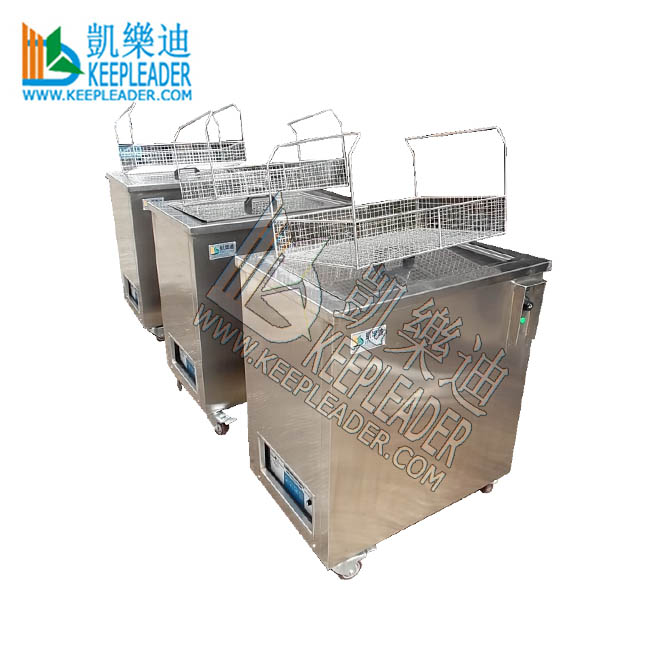

car pats ultrasonic cleaning machine

car pats ultrasonic cleaning machine

Product description


ultrasonic cleaning machine for car pats, engine, cylinder parts

Related field of ultrasonic cleaning technology

 With cavitations effect Ultrasonic cleaning technology is widely used in ultrasonic golf club cleaning, semi-conductor silicon chip cleaning, optical glass cleaning, parts of watch and cock cleaning, jewelry cleaning, polyester filtration core cleaning, widow blind cleaning and etc

Mainly application

Applied for ultrasonic cleaning of Semiconductor wafer, optical glass, clocks, beads

Character

All imported stainless steel structure, thickening Stainless steel plate, adopting high Q value transducer and German binding process large power of ultrasonic output, set solvent heating and temperature automatic thermostat instrument, and temperature control range 0~100°C, base solvent, no pollution Ultrasonic generator: VT model ultrasonic generator, output power continuously adjustable Range: semi-conductor silicon chip, optical glass, parts of watch and clock, glasses, Jewelry, polyester filtration core and etc

Mainly parameter

Model

KLE-1012FB

KLE-1018FB

KLE-1024FB

KLE-1030FB

KLE-1036FB

Power

600W

900W

1200W

1500W

1800W

Heating power

2KW

3KW

4KW

5KW

6KW

Ultrasonic Frequency

28/40KHz

28/40KHz

28/40KHz

28/40KHz

28/40KHz

vibrator

12pcs

18pcs

24pcs

30pcs

36pcs

power board

2pcs

3pcs

4pcs

5pcs

6pcs

Tank material

304 stainless steel

Temperature range

0°C up to 1000°C (regulator or digital control under your request)

Cleaning time

0 second up to 999 seconds ((regulator or digital control under your request)

Cooling mode

Fan cooling

power board

300w per piece

The power of vibrator

50w

power voltage

110v or 220v, single phase, two wires

Power frequency

50HZ or 60HZ

Internal tank

380*300*310

470*340*360

590*400*400

600*470*400

650*500*450

Dimension

510*400*510

600*440*560

720*500*600

730*570*600

780*600*650

Net weight

100kgs

130kgs

160kgs

190kgs

210kgs

Packing method

Wooden case, fumigation-free material

Special notice for application

Must be sure of the water is over minimum fill line on the inside of tank when heating You can decide if cradle in need or not, cradle is convenient to load and unload the work piece The size of cleaning tank depends on your work piece and cleaning efficiency, The cleaning scope of 1pc vibrator is 10cm*10cm from horizontal direction, the vertical direction is under 60cm as better choose Ultrasonic power/ emitting area(cm*cm)= power density≥0.3w/cms

MFR: KEEPLEADER™ has modified and designed model to accommodate our customers’ unique and special requirements, pls contact KEEPLEADER™  for further details

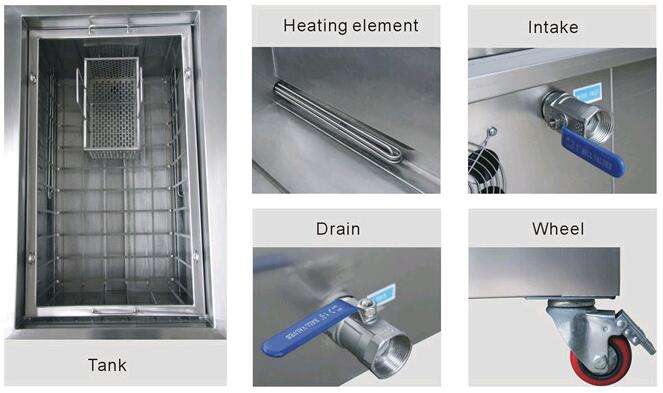

Detailed images


car pats ultrasonic cleaning machine

FRQ


Troubleshooting of ultrasonic cleaning process

How to use ultrasonic cleaning machine correctly and efficiently, there are many professional suggestions collected from KEEPLEADER’S training course, herein, hope this post can acknowledge more companies, who are using ultrasonic cleaning in their production process

01: In first shift working, our ultrasonic cleaning machine works not so expected, why is this so?

Ans: everyone clearly knows that ultrasonic cleaning must use aqueous media or chemical solution, this possibility of dissolved gases hided, in ultrasonic process, as high-frequency sound waves travel through aqueous media, areas of compression and rarefaction occur, during rarefaction, there is negative pressure, with enough loudness (sufficient amplitude), cavitation, voids or tear in the cleaning liquid occur, these are sometimes referred as cavitation or vacuum bubbles, when the bubbles collapse or implode during compression, the energy (pressure and localized temperature) associated with this collapse is responsible for the cleaning power of ultrasonic

 In the first shift cleaning, it is a near certainty that the aqueous media contains dissolved gases, this means that the ultrasonic bubbles formed during rarefaction contain dissolved gases rather that a near-vacuum, the bubbles are “cushy”, so they do not collapse efficiency, turning on the ultrasonic for a few minutes prior to processing a product releases the dissolved gases, if the ultrasonic machines have not been used for a whole, you should degas cleaning chemistries, or if fresh cleaning chemistry has been added, if in doubt, then degas

02: We have a small unheated ultrasonic tank, as the day goes on, cleaning efficiency keeps getting better, is this all due to degassing?

Ans: Most of the improvement is probably due to temperature effects, in fact, as the day progresses, the ultrasonic transducers generate heat, causing the temperature in the ultrasonic tank to increase, unless a temperature-controlled system is used, as the temperature increase, ultrasonic cleaning performance tents to improve, up to a point, the maximum performance temperature depends on the cleaning chemistry, for water, the maximum temperature about 55 degree, as the temperature increase, the viscosity of cleaning chemistry decreases, so cavitation becomes increasing effect, in addition, as the temperature increases, cleaning effectiveness tents to increase, whether or not ultrasonic are used

03: Why does ultrasonic performance decline later in the day?

Ans: When the liquid reach its boiling point caused by heating and inherent ultrasonic produced, for reason related to the degassing issue, the higher temperature, the higher the vapor pressure of the liquid, so the cavitation bubbles has more vapor, the bubbles become “cushy” and they do not implode effectively

04: The effectiveness of our ultrasonic cleaning line seems to vary throughout the day, why do we notice the worst problems when our throughout is highest?

Ans: The tank size usually design its average cleaning volume, if the cleaning basket is overloaded, the ultrasonic energy cannot reach any corner because of ultrasonic intensity is dampened during travelling ,

05: How to choose correct ultrasonic frequency?

Ans: For small components and precision parts, KEEPLEADER suggest 40khg or bigger, the higher frequency, the bubbles is smaller, which can have good penetrating performance into tiny blind holds, recesses, cracks, and gentle ultrasonic rubbing force, can well protect the substrate of cleaning parts, but the smaller bubbles cannot contain higher temperature and pressure, so, for big size parts or heavy grease, 28khz play a good cleaning role, up to one point, this depends on the your current and anticipated production line and process requirements

06: Our parts have heavy grease, we toss parts into the ultrasonic tank, leave them there for hours, How long do we need to clean them?

Ans: Ultrasonic cleaning time usually set in minutes, 3 to 5 minutes is normal, but, tank normally heated or chemical added to reduce the water surface tension and improve the bubble forming, many factories also using spraying process to speed up the cleaning, anyhow, the cleaning time is not hours, if have somehow, the chemical added might not be optimal, you need to adjust the change it, or ultrasonic transducer might be malfunctioning, the placement of the transducer or power density might be incorrect for the task at hand, the parts might not be suspended properly, so that parts are shadowed

07: If plastic tank, basket or fixture is ok for ultrasonic cleaning system?

Usually, no plastic in ultrasonic cleaning should be better, as mentioned previous, ultrasonic contains pressure and hot energy in vacuum bubbles, which implode when touching the substrate of cleaning parts, plastic tank, basket or fixture can soften and dampen the suction force, so, stainless steel, metal basket is recommended, we notice that some companies toss their parts into the plastic tank with ultrasonic vibrations in testing and erroneously concludes that their tank is workable, so not that, KEEPLEADER also advise you to consider your mesh size, try to use big mesh size in solid stance

08: Can we use acetone in ultrasonic cleaning for small-scale?

Inflammable solvent is strongly forbidden in ultrasonic cleaning, acetone is over its flash point at ambient temperature, ultrasonic is ignition source, most of ultrasonic cleaning machine is designed for organic, non-inflammable solvent cleaning

09: Conclusions

Efficient ultrasonic cleaning depends on its cleaning quality and productivity, for ordering, you need to evaluate what ultrasonic cleaning system can do, even the most important is what cannot do, take a step back, look at your whole cleaning line, where need to be improved and changed

Buying guides


01: Choose your correct system
For customers demanding multiple stage ultrasonic cleaning and high efficiency parts drying, KEEPLEADER™ multi-stage consoles provide the same efficient, effective ultrasonic cleaning technology plus the ability to move the items items through additional wash and rise stages, KEEPLEADER™ will design a custom-sized and custom-featured ultrasonic cleaning machine to meet your specific needs
011: heated ultrasonic cleaning
012: heated ultrasonic cleaning + heated rinse
013: heated ultrasonic cleaning + heated ultrasonic rinsing
014: heated ultrasonic cleaning + heated ultrasonic rinsing + hot air drying
015: Inner size of cleaning tank, frame construction, custom color, ultrasonic frequency
02: Choose your tank size
021: the length*Width*depth you wanting
022: advise KEEPLEADER™ the size of your cleaning parts and cleaning efficiency
03: Each system includes:
031: Full insulated stainless steel tanks
032: Exterior power coat finish
033: Digital temperature controls-each tank
034: Digital timer-controlled ultrasonic cleaning
035: Dual stage filtration-cleaning stage
036: Single-stage filtration rinse stage
037: Low-level float sensors-each stage
04: Exceed industry standards
041: All size available, including bench version
042: High quality stainless steel construction
043: For vapor degreasing, cleaning and drying applications
044: Full solution control features

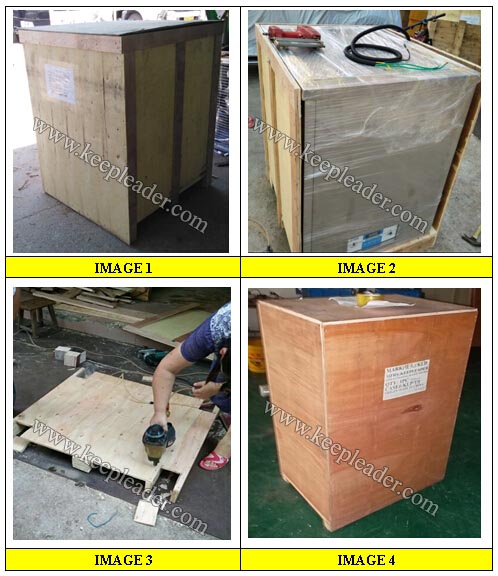

Packaging and shipment
