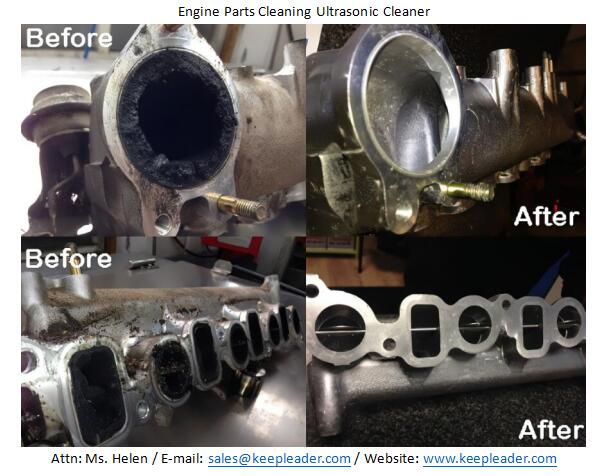

Engine Parts Cleaning Ultrasonic Cleaner has Two of major advantages of using Engine Parts Cleaning Ultrasonic Cleaner are complete one-step cleaning and a safer working environment, ultrasonic cleaner relies on the generation of microscopic cavitation bubbles in the cleaning solution, as the ultrasonic sound waves pass through the liquid, these bubbles form and collapse, producing tiny high-energy jets, the jets strike the surface of engine parts, also penetrate into the inaccessible crevices, cracks and blind holes and passway and dislodge deposits adhered or trapped on the surface or invisible area of engine parts, because the cleaning action of the ultrasonic cleaner does not rely on chemicals, workers don’t need special safety equipment, they can place the engine parts to be cleaned in the cleaning tank, and let the ultrasonic cleaner work without supervision, the cavitation bubbles penetrate wherever cleaning solution is present, and clean even inside dead end holes, inside treads and in nozzles and around complex shapes, cleaning is complete on all surfaces and subsequent manual cleaning to remove any residues is not required, the handling of harsh chemicals and toxic solvents is eliminated and the cleaning process becomes much more environmentally friendly
Product description

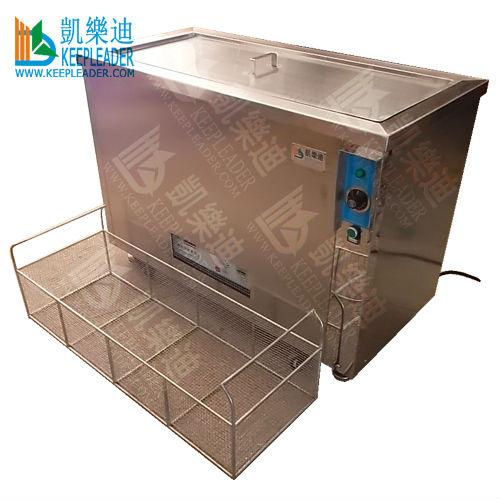

Ø Application of Ultrasonic DPF filter cleaning machine | |
Engine Parts Cleaning Ultrasonic Cleaner does Cleaning for Motor, Car engine and peripheral engine parts, and other metal parts in need of removeing oil, Polishing wax, dust and etc | |
Ø Character of Ultrasonic DPF filter cleaning machine | |
Auto frequency tracking function, which have advantage of automatic find the best ultrasonic performance for different cleaning parts This machine can connect with remote control All in one machine, Compacted design, which is easy operation The machine has special access to do maintenance Low voltage operation penal for safe operation | |
Ø Detailed parameter of Ultrasonic DPF filter cleaning machine | |
Name | |
Model | KLE-1036 |
Vibrators | 36pcs |
Auxiliary | Cleaning basket and heating |
Ultrasonic power | 1.8KW |
Heating power | 6KW |
Vibrator standard | 28khz/40khz,50W/60w/pc (optional) |
Power supply | 380V/220V,50HZ/60HZ (optional) |
Size of inner cleaning tank | 1000*400*400mm(L*W*H) |
Size of outside | 1200*600*1100mm |
Capacity | 160L (140L is available) |
Control mode | Mechanical |
Heating temperature | 0 up to 110 adjustable |
Vibration mode | Bottom vibration |
Heating mode | Heating board at two sides |
Cleaning basket | Stainless steel, the mesh over 10*10mm |
Switch | Separated Power Switch, Ultrasonic SW and Heating SW |
Configuration | Assembled Four Universal wheel |
Separated lid/Cap | |
With cleaning Basket | |
Each generator has power wire of 5m | |
High Q value(NTK made in Japan) Vibrators | |
Stainless steel Drain valve assembled under the bottom | |
Automatic frequency tracking Generator | |
Over-current protection | |
Soft-start function | |
Ø Material | |
Inner cleaning tank | SUS304L,2.0mm |
Vibrating side | SUS 304L,2.5mm |
Surrounded outside | SUS 304L,1.0mm |
Base support | Stainless steel Square tube 38mmx38mm,1.5mm |
DC Connector | no, low voltage power connection |
Ø Process | |
Vibration side | Hard chrome plated over 0.05mm |
Appearance | No glitches, no corners, smooth, beautiful |
Inner cleaning tank | Well welded, upright, water-proof |
Welding spot | No burn marks, welding marks after polishing |
Fixed screw | Ball head smooth |
Assembled mode of vibrator | Glued + Screwed |
Heating rod | Well insulated, short-cut protected |
Ø Free spare parts | |
Separated generator, heating rod, fuse | |
Ø Packing | |
Wooden case with pallet, easy operated by fork Supported under the bottom avoid impacting during delivery Stretch seal around |
Mind the Using guidance of Engine Parts Cleaning Ultrasonic Cleaner, the duration of the ultrasonic cleaning cycle is governed by the condition of parts being cleaned, a good practice is removing loose gross contaminants before placing parts in the cleaning tank, during the operation contaminants that float to the surface should be skimmed off and set aside from proper disposal, when the cleaning solution loses effectiveness, it is time to drain the clean tank with water spray, this removes particles that have settled to the bottom and cause tank damage if allowed to remain over time. Waste solution with contain contaminants must be disposed of according to local regulations
Machine Uses
Engine Parts Cleaning Ultrasonic Cleaner has prominent consideration in selection solution, different cleaning solution will work well with your engine parts, such as carburetors and injectors, these could range from alkaline solution, acidic formulations, DE-ionised water, mild alkaline solutions, high-caustic or neutral chemicals, all you need is water and a specific cleaning fluid to put into the tank, proper ultrasonic cleaning solution should be used for engine parts, oils that float on the surface of ultrasonic cleaner tank should be skimmed off and disposed of properly, when the solution becomes discolored or takes longer to clean, it is time to replace the solution, drain the tank and dispose of the waste solution in according with local regulations, take the time to remove any sludge that has settled to the bottom of the tank, clean the tank using the KEEPLEADER’s recommended cleaning procedure
Company overview
KEEPLEADER manufactures a complete line of Engine Parts Cleaning Ultrasonic Cleaner and offers free consulting to help customers select the appropriate system. Based on extensive experience in the field of ultrasonic technology, we can recommend the correct frequency for cleaning engine parts with different characteristics, low frequency ultrasonic settings including the common 40kHz frequency used in industrial cleaning will erode aluminum parts, KEEPLEADER assists customers in choosing the proper frequency for safely cleaning critical engine parts, in addition to the frequency, the ultrasonic power and the configuration of the ultrasonic transducers is important for the optimal functioning of the Engine Parts Cleaning Ultrasonic Cleaner
Contact Us
For effective cleaning the Engine Parts Cleaning Ultrasonic Cleaner must use the right cleaning chemistry, operate at the right temperature, and use the correct frequency, engine parts to be cleaned, the oil, grease to be removed, and the degree of soil, determine this, our years of experience advising manufacturing and maintenance clients on the right process for their cleaning needs help us identify the exact product combo that you need, just call or email us and, we’ll guide you to the right solution quickly
