Electroplated parts ultrasonic cleaner For metal parts ultrasonic cleaning_washing cleaner of Single tank Ultrasonic Cleaner

         Application of Electroplated parts Ultrasonic Cleaner

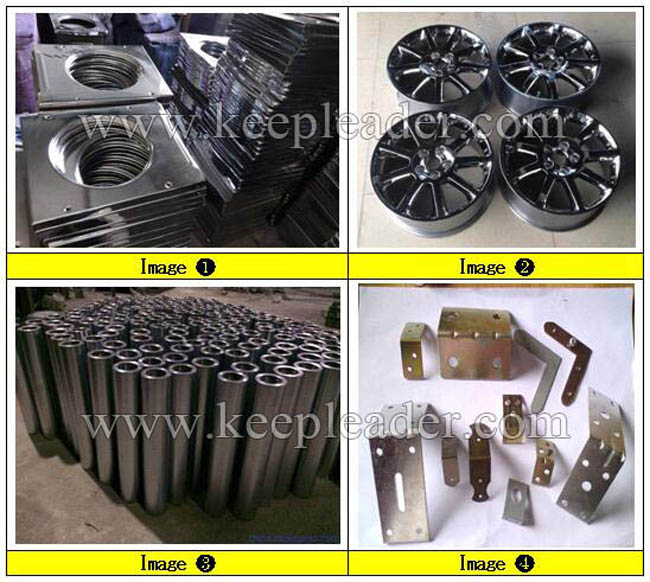

Do Cleaning for Electroplated part,, and other metal and Solid plastic parts in need of removing oil, Carton, grease, oil, Polishing wax, dust and etc, the metal parts need cleaning before and after electroplating

        Character

Auto frequency tracking function, which have advantage of automatic find the best ultrasonic performance for different cleaning parts

This machine can connect with remote control

All in one machine, Compacted design, which is easy operation

The machine has special access to do maintenance

Low voltage operation penal for safe operation

                      Detailed parameter

Name

Electroplated part ultrasonic cleaner

Model

KLE-1030

 Vibrators

30pcs

Auxiliary

Cleaning basket and heating

Ultrasonic power

1.5KW

Heating power

4KW

Vibrator standard

28khz/40khz,50W/60w/pc (optional)

Power supply

380V/220V,50HZ/60HZ (optional)

Size of inner cleaning tank

600*300*1000mm(L*W*H)

Size of outside

800*500*1400mm

Control mode

Mechanical

Heating temperature

0 up to 110 adjustable

Vibration mode

Side vibration

Heating mode

Heating board at the beneath of cleaning tank

Cleaning basket

Stainless steel, the mesh over 10*10mm

Switch

Separated Power Switch, Ultrasonic SW and Heating SW

                     Configuration

Assembled Four Universal wheel

Separated lid/Cap

With cleaning Basket

Each generator has power wire of 5m

High Q value(NTK made in Japan) Vibrators

Stainless steel Drain valve assembled under the bottom

Automatic frequency tracking Generator

Over-current protection

Soft-start function

               Material

Inner cleaning tank

SUS304L,2.0mm

Vibrating side

SUS 304L,2.5mm

Surrounded outside

SUS 304L,1.0mm

Base support

Stainless steel Square tube 38mmx38mm,1.5mm

DC Connector

low voltage power connection

                     Process standard

Vibration side

Hard chrome plated over 0.05mm

Appearance

No glitches, no corners, smooth, beautiful

Inner cleaning tank

Well welded, upright, water-proof

Welding spot

No burn marks, welding marks after polishing

Fixed screw

Ball head smooth

Assembled mode of vibrator

Glued + Screwed

Heating rod

Well insulated, short-cut protected
